951301 (Mammoth 850) - Ariens Stand-On Snow Removal Tractor, Kawasaki FX (SN: 000101 - 003999) Tower & Operator Pad Parts Diagram

Stand-On Snow Removal Tractor, Kawasaki FX

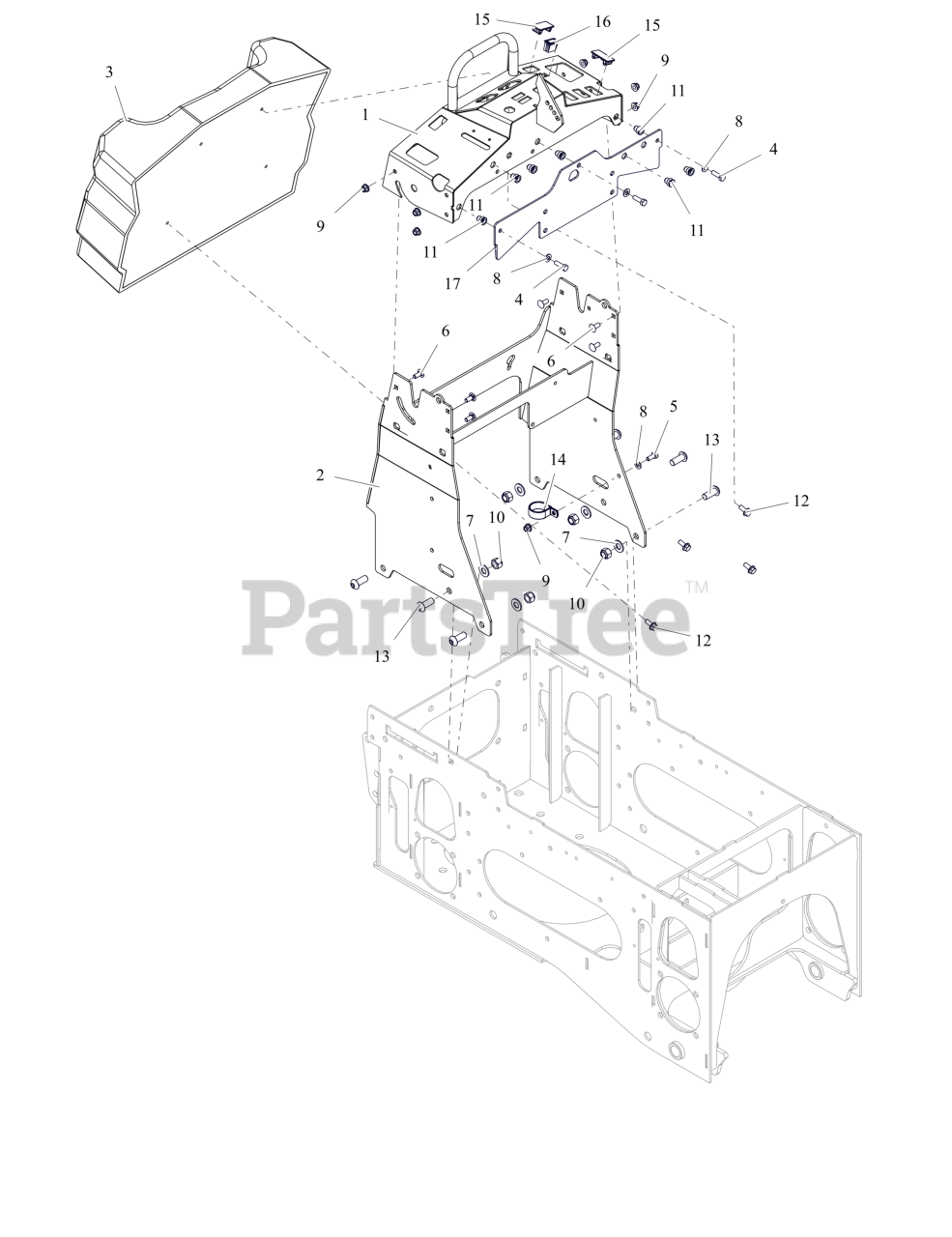

Tower & Operator Pad Parts Diagram

  • Title

1

Ariens 55100300

WLDMT, CONSOLE TOP - W/DECALS

$808.99

$

Usually ships in 4-12 days

0

2

Ariens 55102300

WLDMT, CONTROL TOWER W/DECAL

$914.99

$

Usually ships in 4-12 days

0

3

Ariens 09483700

PAD- MAMMOTH OPERATOR

$370.99

$

Usually ships in 4-12 days

0

4

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

5

Ariens 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

6

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

7

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.99

$

In Stock, Qty 20+

0

10

Ariens 06500830

NUT,NYL .50-13 G5 ZCC

$2.99

$

In Stock, only 3 left!

0

11

Ariens 06800210

RVT, HEX 5/16-18 SHORT

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 07001820

BLT- SERHFWH .312-18X.75 ZCC

$2.49

$

In Stock, only 3 left!

0

13

Ariens 07002001

BOLT- BUTTON HEAD 1/2-13X1.25

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 07002002

CLAMP- CUSHIONED 1-3/8 X 11/32

$6.49

$

Usually ships in 4-12 days

0

15

Ariens 07500338

PLUG,DASH PANEL

$

$

Not available

16

Ariens 09003300

SWITCH,BLANK

$5.49

$

Usually ships in 4-12 days

0

17

Ariens 09470600

PLATE- CONTROL ACCESS PANEL

$23.99

$

Usually ships in 4-12 days

0
