953 - Toro Lawn Tractor (1963) 953 Hydraulic Unit Parts List Parts Diagram

Lawn Tractor

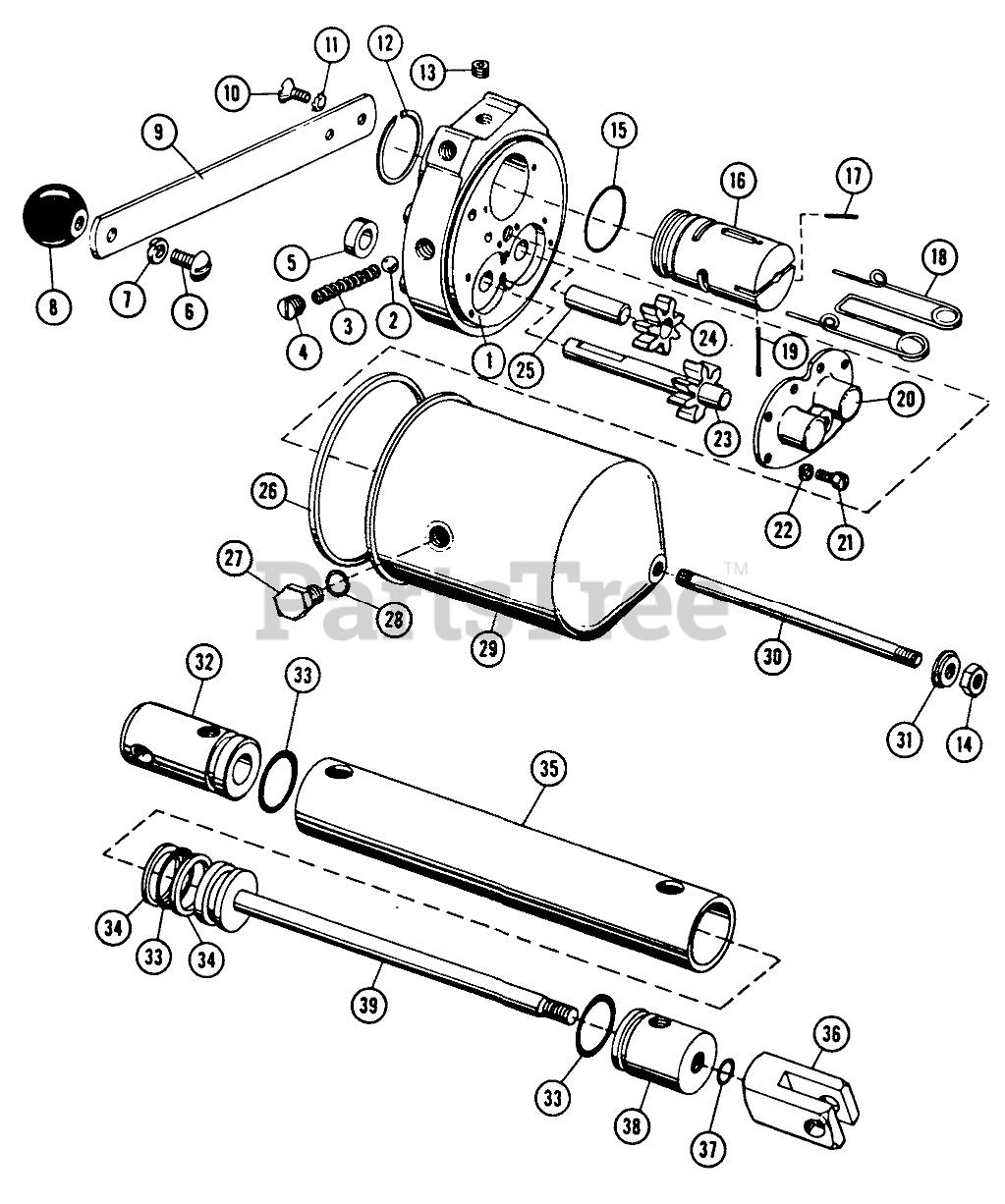

953 Hydraulic Unit Parts List Parts Diagram

  • Title

1

Toro 4152

Body

$

$

Currently unavailable

2

Toro 4831

Ball

$

$

Currently unavailable

3

Toro 4832

Spring

$

$

Currently unavailable

4

Toro 4833

Plug

$

$

Currently unavailable

5

Toro 1447

See Supercession: 5959
(Superseded to 5959)

$

$

Not available

6

Toro 909084-4

Screw 1/8-16 x 3/4

$

$

Currently unavailable

7

Toro 920083-4

Lockwasher

$

$

Currently unavailable

8

Toro 1001

DUP PART SEE $BOOK

$

$

Not available

9

Toro 4153

Handle

$

$

Currently unavailable

10

Toro 908817-4

Screw 1/4-20 x 3/8

$

$

Currently unavailable

11

Toro 920081-4

Lockwasher

$

$

Currently unavailable

12

Toro 1449

Snap Ring

$

$

Currently unavailable

13

Toro 9434559-4

Allen Hd. Pipe Plug

$

$

Currently unavailable

14

Toro 915236-4

3/8-16 Jam Nut

$

$

Currently unavailable

15

Toro 1455

O Ring

$

$

Currently unavailable

16

Toro 4154

Spool Valve

$

$

Currently unavailable

17

Toro 933169

Roll Pin 5/12 x 7/8
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

18

Toro 4837

Spring

$

$

Currently unavailable

19

Toro 933158

SPIROL PIN

$

$

Not available

20

Toro 4838

Cover

$

$

Currently unavailable

21

Toro 1451

Cover Screw #10-32 x 7/16

$

$

Currently unavailable

22

Toro 920120-4

Lockwasher #10 External

$

$

Currently unavailable

23

Toro 4841

Drive Shaft Ass-y.

$

$

Currently unavailable

24

Toro 4839

Gear

$

$

Currently unavailable

25

Toro 4840

Shaft

$

$

Currently unavailable

26

Toro 4842

Gasket

$

$

Currently unavailable

27

Toro 908203-4

Bolt-Hex 1/2-20 x 1/2

$

$

Currently unavailable

28

Toro 4188

DISCONTINUED

$

$

Not available

29

Toro 4157

Reservoir

$

$

Currently unavailable

30

Toro 4187

Stud

$

$

Currently unavailable

31

Toro 1453

DISCONTINUED

$

$

Not available

32

Toro 4155

Head

$

$

Currently unavailable

33

Toro 1450

DISCONTINUED

$

$

Not available

34

Toro 1457

Back Up Washer

$

$

Currently unavailable

35

Toro 4846

Tube

$

$

Currently unavailable

36

Toro 4156

Clevis

$

$

Currently unavailable

37

Toro 1456

O Ring

$

$

Currently unavailable

38

Toro 4848

Guide

$

$

Currently unavailable

39

Toro 4849

Piston Rod Ass-y.

$

$

Currently unavailable
