953518901 - Husqvarna 38" Tow-behind Sweeper (2001-01)

38" Tow-behind Sweeper

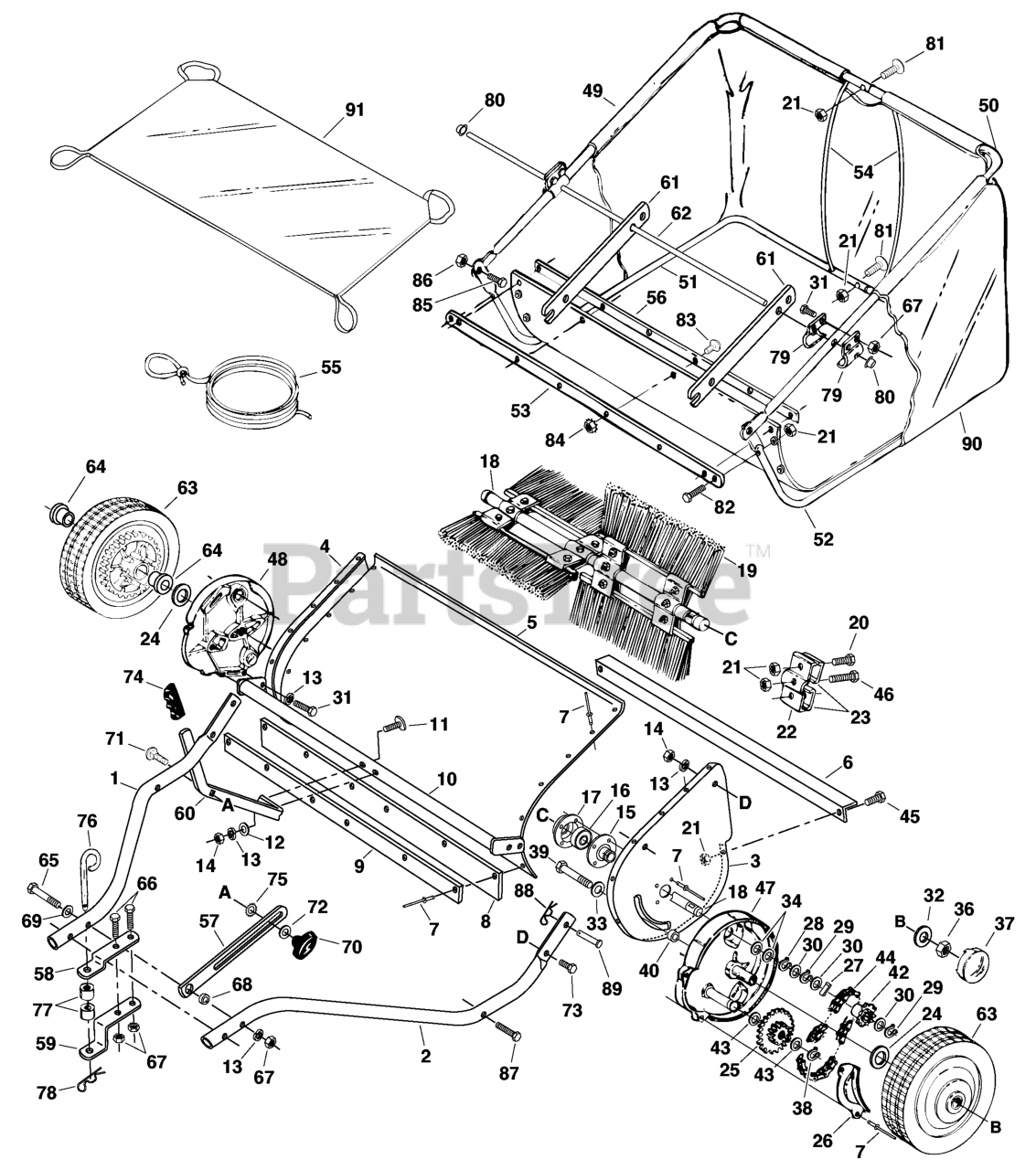

953518901 - Husqvarna 38" Tow-behind Sweeper (2001-01) > Parts Diagrams (1) > High Performance Lawnsweeper

  • Title
531007410

1

Hitch Tube R.H. 38"

Part# 531007410

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $61.48

531007409

1

Hitch Tube R.H. 32"

Part# 531007409

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $54.77

531007412

2

Hitch Tube L.H. 38"

Part# 531007412

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $61.48

531007411

2

Hitch Tube L.H. 32"

Part# 531007411

Not available

531002808

3

End Plate L.H.

Part# 531002808

Not available

531002809

4

End Plate R.H.

Part# 531002809

Not available

531007414

5

Wrapper 38"

Part# 531007414

OEM Warranty Repair Part for Husqvarna

Not available

531007413

5

Wrapper 32"

Part# 531007413

Not available

531007415

6

Rear Support Brace

Part# 531007415

Not available

531007416

6

Rear Support Brace

Part# 531007416

Not available

722787003

7

Rivet

Part# 722787003 (Superseded to 722785402)

OEM Warranty Repair Part for Husqvarna

Not available

506622201

8

Skirt 38"

Part# 506622201

OEM Warranty Repair Part for Husqvarna

Not available

531007617

8

Skirt 32"

Part# 531007617

Not available

531007609

9

Skirt & Bag Retainer 32"

Part# 531007609

Not available

531007417

9

Skirt Retainer 38"

Part# 531007417

Not available

531007419

10

Height Adjustment Ass'y. 38"

Part# 531007419

Not available

531007418

10

Height Adjustment Ass'y. 32"

Part# 531007418

Not available

531002815

11

Curved Hd. Bolt 5/16-18 x 1-5/8"

Part# 531002815

OEM Warranty Repair Part for Husqvarna

Not available

531002816

12

Washer Bowed 1" x .32" x .06"

Part# 531002816

Not available

735116405

13

Lock Washer 5/16"

Part# 735116405

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

873220500

14

Hex Nut 5/16-18 Thread

Part# 873220500

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

506620201

15

Brush Bushing Ass'y.

Part# 506620201

OEM Warranty Repair Part for Husqvarna

Not available

531002817

16

Ball Bearing

Part# 531002817

OEM Warranty Repair Part for Husqvarna

Not available

506620401

17

Bearing Retainer

Part# 506620401

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $25.70

506620501

18

Brush Shaft 38"

Part# 506620501 (Superseded to 601002177)

OEM Warranty Repair Part for Husqvarna

Not available

531007615

18

Brush Shaft 32"

Part# 531007615

Not available

531007420

19

Brush 32"

Part# 531007420

Not available

531007421

19

Brush 38"

Part# 531007421

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $34.65

725237051

20

Hex Bolt 1/4-20 x 3/4" (Gr. 5)

Part# 725237051 (Superseded to 725237071)

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 3 to 4 business days

Your price: $4.46

531007629

21

Hex Lock Nut 1/4-20 Thread

Part# 531007629

Not available

506620601

22

Brush Retainer (Double)

Part# 506620601

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.93

506620701

23

Brush Retainer (Single)

Part# 506620701

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $11.17

531002741

24

Flat Washer 1-1/4" x .78 I.D.

Part# 531002741

OEM Warranty Repair Part for Husqvarna

Not available

506621701

25

Gear Sprocket Sub Ass'y.

Part# 506621701 (Superseded to 601001940)

OEM Warranty Repair Part for Husqvarna

Not available

506621801

26

Dust Cover

Part# 506621801

OEM Warranty Repair Part for Husqvarna

Not available

506621901

27

Pawl

Part# 506621901

OEM Warranty Repair Part for Husqvarna

Not available

506622301

28

Retaining Ring 3/4"

Part# 506622301

OEM Warranty Repair Part for Husqvarna

Not available

506622401

29

Retaining Ring .594" I.D.

Part# 506622401

OEM Warranty Repair Part for Husqvarna

Not available

506622501

30

Shim Washer 1-1/8" x .594" x .025"

Part# 506622501

OEM Warranty Repair Part for Husqvarna

Not available

874780512

31

Hex Bolt 5/16-18 x 3/4"

Part# 874780512

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $2.23

734117341

32

Flat Washer 1-1/2" x .375" x .062"

Part# 734117341

OEM Warranty Repair Part for Husqvarna

Not available

734117201

33

Washer 3/8" Standard

Part# 734117201

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $5.81

506624701

34

Flat Washer .78" x 1.25" x .06"

Part# 506624701 (Superseded to 819251816)

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

506622901

36

Hex Lock Nut 3/8-24 Thread

Part# 506622901 (Superseded to 873680600)

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.75

506623001

37

Hub Cap

Part# 506623001

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.93

506623101

38

Retaining Ring 1/2"

Part# 506623101

OEM Warranty Repair Part for Husqvarna

Not available

506623301

39

Hex Bolt 3/8-24 x 3-1/4" (Gr. 5)

Part# 506623301

OEM Warranty Repair Part for Husqvarna

Not available

506626601

40

Spacer 13/32" x 5/8" x 3/16"

Part# 506626601

OEM Warranty Repair Part for Husqvarna

Not available

531002799

41

Ratchet Sprocket R.H.

Part# 531002799

Note: (Not Shown)

OEM Warranty Repair Part for Husqvarna

Not available

506623501

42

Ratchet Sprocket L.H.

Part# 506623501

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $51.42

506623601

43

Washer 1/2" x 1" x .02"

Part# 506623601

OEM Warranty Repair Part for Husqvarna

Not available

531002745

44

Roller Chain 3/8" x 1/2-40

Part# 531002745

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $16.76

531002821

45

Hex Bolt, 1/4-20 x 1/2"

Part# 531002821

Not available

531007626

46

Hex Bolt 1/4-20 x 1"

Part# 531007626

Not available

531002744

47

Wheel Drive Housing Ass'y. L.H.

Part# 531002744

OEM Warranty Repair Part for Husqvarna

Not available

531002743

48

Wheel Drive Housing Ass'y. R.H.

Part# 531002743

OEM Warranty Repair Part for Husqvarna

Not available

531007603

49

Upper Hopper Tube L.H. 32"

Part# 531007603

Not available

506623801

49

Upper Hopper Tube R.H. 38"

Part# 506623801

OEM Warranty Repair Part for Husqvarna

Not available

506623901

50

Upper Hopper Tube L.H. 38"

Part# 506623901

OEM Warranty Repair Part for Husqvarna

Not available

531007602

50

Upper Hopper Tube R.H. 32"

Part# 531007602

Not available

506624201

51

Lower Hopper Tube R.H. 38"

Part# 506624201

OEM Warranty Repair Part for Husqvarna

Not available

531007604

51

Lower Hopper Tube R.H. 38"

Part# 531007604

Not available

531007605

52

Lower Hopper Tube L.H. 32"

Part# 531007605

Not available

506624301

52

Lower Hopper Tube L.H. 38"

Part# 506624301

OEM Warranty Repair Part for Husqvarna

Not available

531007614

53

Bag Frame Strap 32"

Part# 531007614

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $35.77

506621501

53

Bag Frame Strap 38"

Part# 506621501

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $52.54

506624401

54

Hopper Support Rod

Part# 506624401

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $11.17

531002734

55

Hopper Rope

Part# 531002734

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $13.41

506620901

56

Skirt & Bag Retainer 38"

Part# 506620901

OEM Warranty Repair Part for Husqvarna

Not available

531007609

56

Skirt & Bag Retainer 32"

Part# 531007609

Not available

531002828

57

Height Adjustment Strap

Part# 531002828

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $20.11

531002772

58

Hitch Bracket

Part# 531002772

OEM Warranty Repair Part for Husqvarna

Not available

506621201

59

Hitch Bracket

Part# 506621201

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $32.41

531002831

60

Height Adjustment Handle

Part# 531002831

Not available

531007423

61

Bag Arm

Part# 531007423

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $25.70

531007424

62

Hopper Bag Pivot Rod 32"

Part# 531007424

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $23.47

531007425

62

Hopper Bag Pivot Rod 38"

Part# 531007425

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $23.47

531002746

63

Wheel Ass'y. Complete

Part# 531002746 (Superseded to 601001889)

OEM Warranty Repair Part for Husqvarna

Not available

506625401

64

Wheel Bearing

Part# 506625401

OEM Warranty Repair Part for Husqvarna

Not available

531002834

65

Hex Bolt 5/16-18 x 3"

Part# 531002834

Not available

531002835

66

Hex Bolt 5/16-18 x 2-1/4"

Part# 531002835

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

531007616

67

Hex Lock Nut 5/16-18 Thread

Part# 531007616

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

531002836

68

Spacer Bushing

Part# 531002836

Not available

734115201

69

Flat Washer 1/4" Standard

Part# 734115201

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $2.39

506626001

70

Wing Knob 5/16-18 Thread

Part# 506626001

OEM Warranty Repair Part for Husqvarna

Not available

872140506

71

Carriage Bolt 5/16-18 x 3/4"

Part# 872140506

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $1.67

734116401

72

Washer 5/16" Standard

Part# 734116401

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $3.48

531007426

73

Hex Bolt 5/16-18 x 1"

Part# 531007426

Not available

506626401

74

Rubber Grip

Part# 506626401

OEM Warranty Repair Part for Husqvarna

Not available

531002839

75

Tooth Lock Washer 5/16"

Part# 531002839

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506625601

76

Hitch Pin

Part# 506625601

OEM Warranty Repair Part for Husqvarna

Not available

506626501

77

Hitch Adjustment Tube

Part# 506626501

OEM Warranty Repair Part for Husqvarna

Not available

721680251

78

Hairpin Cotter 1/8" #4

Part# 721680251

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.38

506626701

79

Hopper Mount Clamp

Part# 506626701

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $32.41

531002840

80

Palnut 3/8"

Part# 531002840

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

725237251

81

Curved Head Bolt 1/4-20 x 1"

Part# 725237251

OEM Warranty Repair Part for Husqvarna

Not available

725237471

82

Hex Bolt 1/4-20 x 1-1/4"

Part# 725237471

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $3.48

725232951

83

Slotted Truss Head Screw #10-32 x 5/8"

Part# 725232951

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.28

732211401

84

Hex Lock Nut #10-32 Thread

Part# 732211401

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $2.31

506625301

85

Hex Bolt 3/8-16 x 3/4" (Gr. 5)

Part# 506625301 (Superseded to 874780612)

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $4.46

873680600

86

Hex Lock Nut 3/8-16 Thread

Part# 873680600

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.75

531002838

87

Hex Bolt 5/16-18 x 1-3/4"

Part# 531002838

OEM Warranty Repair Part for Husqvarna

Not available

531004637

88

Hairpin Cotter 3/32" #3

Part# 531004637

Not available

506624001

90

Hopper Bag 38"

Part# 506624001 (Superseded to 601000967)

OEM Warranty Repair Part for Husqvarna

Not available

531007606

90

Hopper Bag 32"

Part# 531007606

OEM Warranty Repair Part for Husqvarna

Not available

531007607

91

Wind Screen 32"

Part# 531007607 (Superseded to 531002856)

OEM Warranty Repair Part for Husqvarna

Not available

506624101

91

Wind Screen 38"

Part# 506624101

OEM Warranty Repair Part for Husqvarna

Not available
