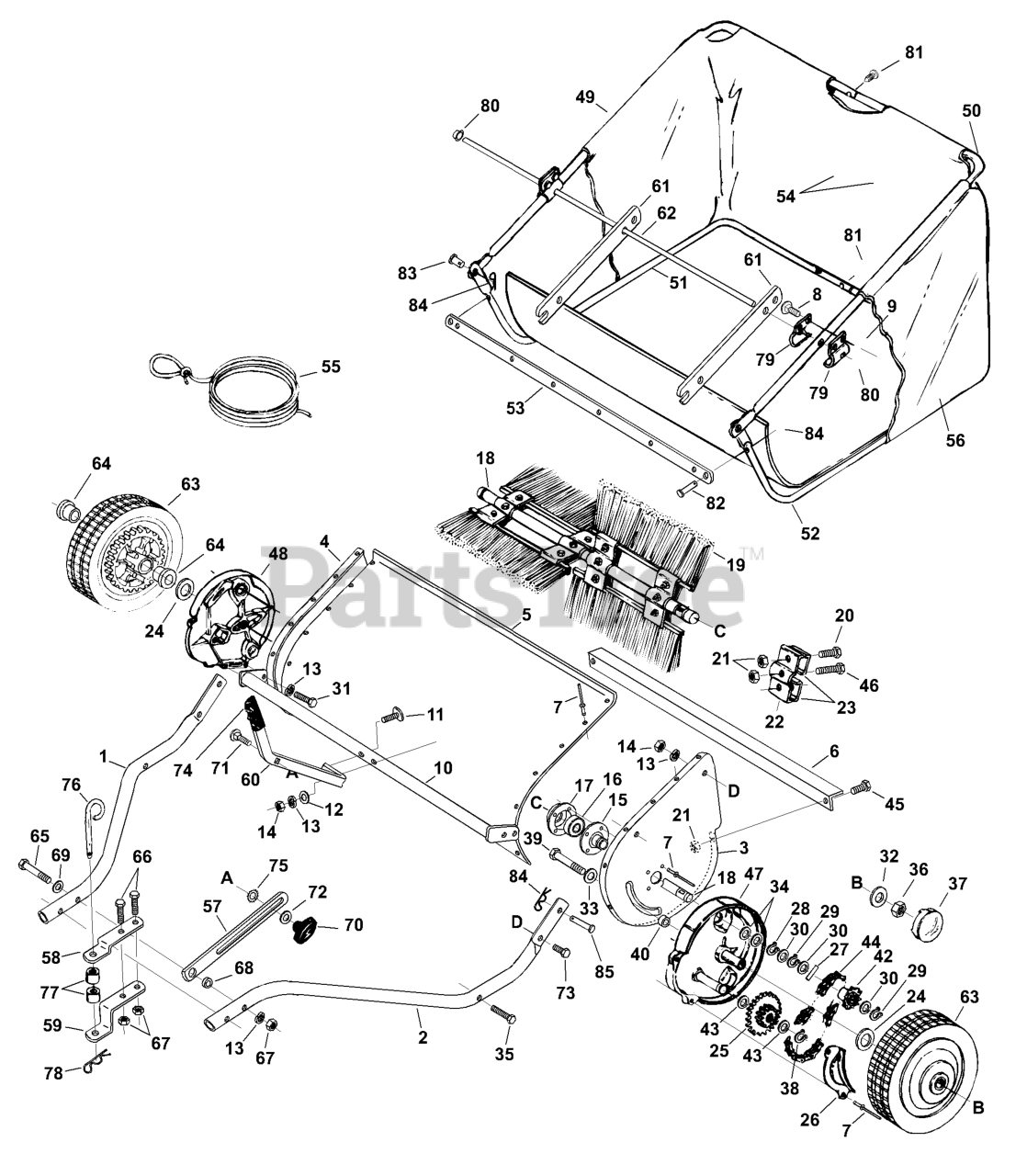

953525801 - Husqvarna 32" Tow-Behind Sweeper (2003-01) Lawnsweeper Parts Diagram

32" Tow-Behind Sweeper

Lawnsweeper Parts Diagram

  • Title

1

Husqvarna 531007409

Hitch Tube, R.H.

$

$

Not available

2

Husqvarna 531007411

Hitch Tube, L.H.

$

$

Not available

3

Husqvarna 531002808

End Plate, L.H.

$

$

Not available

4

Husqvarna 531002809

End Plate, R.H.

$

$

Not available

5

Husqvarna 531007413

Wrapper

$

$

Not available

6

Husqvarna 531007415

Brace, Rear Support

$

$

Not available

7

Husqvarna 722787003

Rivet, Pop
(Superseded to 722785402)

$2.49

$

Usually ships in 3-10 days

0

8

Husqvarna 872140506

Bolt, Carriage 5/16-18 x 3/4"
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 531007616

Nut, Hex 5/16-18 (SEMS)

$

$

Not available

10

Husqvarna 531007418

Height Adjustment Ass'y.

$

$

Not available

11

Husqvarna 531002815

Bolt, Cv. Hd. 5/16-18 x 1-5/8" Lg.

$

$

Not available

12

Husqvarna 531002816

Washer, Bowed 1" x .32" x .06"

$

$

Not available

13

Husqvarna 735116405

Lock Washer, 5/16"

$

$

Not available

14

Husqvarna 873220500

Nut, Hex 5/16-18 Thread

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 506620201

Brush Bushing Ass'y.

$

$

Not available

16

Husqvarna 531002817

Ball Bearing
(Superseded to 601002178)

$

$

Not available

17

Husqvarna 506620401

Retainer, Dust Cover

$

$

Not available

18

Husqvarna 531007615

Brush Shaft, 32"

$

$

Not available

19

Husqvarna 531007420

Brush, 32"

$

$

Not available

20

Husqvarna 725237051

Bolt, Hex 1/4-20 x 3/4" Lg.
(Superseded to 725237071)

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 531007629

Nut, Hex Lock 1/4-20 Thread

$

$

Not available

22

Husqvarna 506620601

Retainer, Brush (Double)

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 506620701

Retainer, Brush (Single)

$

$

Not available

24

Husqvarna 531002741

Washer, Flat 1-1/8" x .78" x .025"

$

$

Not available

25

Husqvarna 506621701

Sprocket / Gear
(Superseded to 601001940)

$

$

Not available

26

Husqvarna 506621801

Dust Cover

$

$

Not available

27

Husqvarna 531007650

Dowel Pin (Drive)

$

$

Not available

28

Husqvarna 506622301

Ring, Retaining 3/4"

$

$

Not available

29

Husqvarna 506622401

Ring, Retaining .594"

$

$

Not available

30

Husqvarna 506622501

Washer, Shim 1-1/8" x .594" x .025"

$

$

Not available

31

Husqvarna 874780512

Bolt, Hex 5/16-18 x 3/4" Lg.
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 734117341

Washer, Flat 1-1/2" x .375" x .062"

$

$

Not available

33

Husqvarna 734117201

Washer, 3/8" Std. Wrt
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna 506624701

Washer, Flat .78" x 1.25" x .06"
(Superseded to 819251816)

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 531002838

Bolt, Hex 5/16-18 x 1-3/4" Lg.
(Superseded to 522751501)

$

$

Not available

36

Husqvarna 506622901

Nut, Hex Lock 3/8-24 Thread
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 506623001

Hub Cap

$

$

Not available

38

Husqvarna 506623101

Ring, Retaining 1/2"

$

$

Not available

39

Husqvarna 506623301

Bolt, Hex 3/8-24 x 3-1/2" Lg.
(Superseded to 874610652)

$

$

Not available

40

Husqvarna 506626601

Bushing, Spacer

$

$

Not available

41

Husqvarna 531002799

Sprocket, Ratchet R.H.

Note: (not shown)

$

$

Not available

42

Husqvarna 506623501

Sprocket, Ratchet L.H.

$

$

Not available

43

Husqvarna 506623601

Washer, 1/2" x 1" x .02"

$

$

Not available

44

Husqvarna 531002741

Chain, Roller

$

$

Not available

45

Husqvarna 531002821

Bolt, Hex 1/4-20 x 1/2" Lg.

$

$

Not available

46

Husqvarna 531007626

Bolt, Hex 1/4-20 x 1" Lg.

$

$

Not available

47

Husqvarna 531002744

Housing, Wheel Drive Ass'y. L.H.

$

$

Not available

48

Husqvarna 531002743

Housing, Wheel Drive Ass'y. R.H.

$

$

Not available

49

Husqvarna 531007603

Tube, Upper Hopper Frame R.H.

$

$

Not available

50

Husqvarna 531007602

Tube, Upper Hopper Frame L.H.

$

$

Not available

51

Husqvarna 531007604

Tube, Lower Hopper Frame R.H.

$

$

Not available

52

Husqvarna 531007605

Tube, Lower Hopper Frame L.H.

$

$

Not available

53

Husqvarna 531007614

Strap, Bag Frame

$

$

Not available

54

Husqvarna 506624401

Rod, Hopper Support

$13.99

$

Usually ships in 3-10 days

0

55

Husqvarna 531002734

Hopper Rope

$

$

Not available

56

Husqvarna 531007668

Hopper Bag, 32"

$

$

Not available

57

Husqvarna 531002828

Strap, Height Adjustment

$

$

Not available

58

Husqvarna 531002772

Bracket, Hitch

$

$

Not available

59

Husqvarna 506621201

Bracket, Hitch

$

$

Not available

60

Husqvarna 531002831

Handle, Height Adjustment

$

$

Not available

61

Husqvarna 531007423

Bag Arm

$

$

Not available

62

Husqvarna 531007424

Rod, Hopper Bag Pivot

$

$

Not available

63

Husqvarna 531002746

Wheel & Tire Ass'y. (White)
(Superseded to 601001889)

$

$

Not available

64

Husqvarna 531002740

Wheel Bearing

$8.99

$

Usually ships in 3-10 days

0

65

Husqvarna 531002834

Bolt, Hex 5/16-18 x 3" Lg.

$

$

Not available

66

Husqvarna 531002835

Bolt, Hex 5/16-18 x 2-1/4" Lg.

$

$

Not available

67

Husqvarna 531007616

Nut, Hex Lock 5/16-18 Thread

$

$

Not available

68

Husqvarna 531002836

Bushing, Spacer

$

$

Not available

69

Husqvarna 735116450

Washer, Flat 11/32" x 11/16"

$2.49

$

In Stock, only 1 left!

0

70

Husqvarna 506626001

Knob, Wing 5/16-18 Thread

$

$

Not available

71

Husqvarna 872140506

Bolt, Carriage 5/16-18 x 3/4" Lg.
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

72

Husqvarna 734116401

Washer, Flat 5/16" Std. Wrt.

$6.49

$

In Stock, only 4 left!

0

73

Husqvarna 531007426

Bolt, Hex 5/16-18 x 1" Lg.

$

$

Not available

74

Husqvarna 506623701

Grip, Height Adjust

$

$

Not available

75

Husqvarna 531002839

Washer, Tooth Lock 5/16"

$1.99

$

Usually ships in 3-10 days

0

76

Husqvarna 506625601

Pin, Hitch

$

$

Not available

77

Husqvarna 506626501

Tube, Hitch Spacer

$

$

Not available

78

Husqvarna 721680251

Hairpin Cotter, 1/8" #4

$5.99

$

Usually ships in 3-10 days

0

79

Husqvarna 506626701

Clamp, Hopper Mount

$

$

Not available

80

Husqvarna 531002840

Palnut, 3/8"

$1.99

$

Usually ships in 3-10 days

0

81

Husqvarna 531007683

Plug, 1/4"

$

$

Not available

82

Husqvarna 531007684

Pin, Clevis 1/4" x 1-1/8" (Special)

$6.99

$

Usually ships in 3-10 days

0

83

Husqvarna 531007685

Pin, Clevis 3/8" x 1/2" (Special)

$6.99

$

Usually ships in 3-10 days

0

84

Husqvarna 531002843

Pin, Hair Cotter 3/32" #3

$

$

Not available

85

Husqvarna 531004638

Pin, Clevis 3/8" x 3/4" Lg.

$

$

Not available
