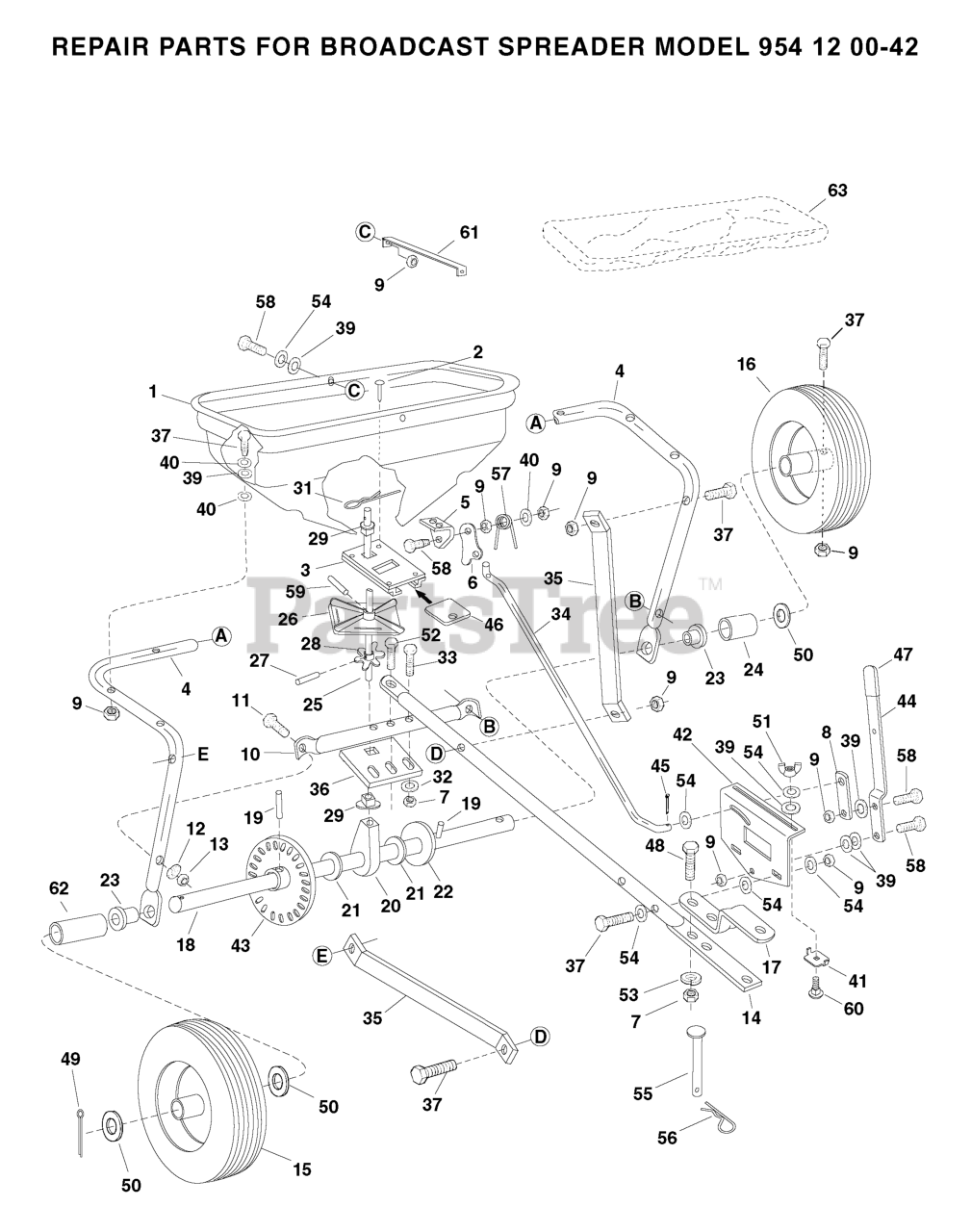

954120042 - Husqvarna Tow-Behind Broadcast Spreader (2004-01) PRODUCT COMPLETE Parts Diagram

Tow-Behind Broadcast Spreader

PRODUCT COMPLETE Parts Diagram

  • Title

22

Husqvarna 531002792

WASHER

$

$

Not available

4

Husqvarna 531004602

SUPPORT

$

$

Not available

62

Husqvarna 531004610

SPACER

$

$

Not available

531 00 76-72

Husqvarna 531007672

NEEDS DESCRIPTION

$

$

Currently unavailable

24

Husqvarna 531007671

NEEDS DESCRIPTION

$

$

Currently unavailable

34

Husqvarna 531004614

LEVER

$

$

Not available

39

Husqvarna 531002783

WASHER, NYLON
(Superseded to 506626301)

$

$

Not available

44

Husqvarna 531007645

NEEDS DESCRIPTION

$

$

Currently unavailable

3

Husqvarna 531002750

PLATE

$

$

Not available

2

Husqvarna 531002766

RIVET

$

$

Not available

6

Husqvarna 531004604

BRACKET

$

$

Not available

12

Husqvarna 735116405

WASHER

$

$

Not available

63

Husqvarna 531002790

PROTECTOR

$

$

Not available

32

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 531007629

NUT

$

$

Not available

41

Husqvarna 531007644

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 531002770

NEEDS DESCRIPTION

$

$

Not available

14

Husqvarna 531004606

PULL ROD

$

$

Not available

16

Husqvarna 531004608

WHEEL CPL.

$

$

Not available

56

Husqvarna 721680251

R-CLIP

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 531002774

SPRING PIN

$

$

Not available

17

Husqvarna 531002772

Bracket, Hitch

$

$

Not available

61

Husqvarna 531002769

NEEDS DESCRIPTION

$

$

Not available

43

Husqvarna 531002759

GEAR, ASSY

$

$

Not available

31

Husqvarna 531007693

NEEDS DESCRIPTION

$

$

Currently unavailable

13

Husqvarna 531007616

NUT

$

$

Not available

47

Husqvarna 531002787

HANDLE

$

$

Not available

8

Husqvarna 531007643

NEEDS DESCRIPTION

$

$

Currently unavailable

23

Husqvarna 531007655

BEARING

$

$

Not available

51

Husqvarna 531007651

NEEDS DESCRIPTION

$

$

Currently unavailable

18

Husqvarna 531007646

NEEDS DESCRIPTION

$

$

Currently unavailable

36

Husqvarna 531004615

SUPPORT

$

$

Not available

1

Husqvarna 531004601

CONTAINER

$

$

Not available

53

Husqvarna 735117301

Spring Washer

$2.49

$

In Stock, Qty 8

0

60

Husqvarna 531007637

BOLT

$

$

Not available

49

Husqvarna 721618501

SPLIT PIN

$

$

Not available

45

Husqvarna 721616701

NEEDS DESCRIPTION

$

$

Currently unavailable

57

Husqvarna 531004620

SPRING

$

$

Not available

15

Husqvarna 531002715

WHEEL

$

$

Not available

55

Husqvarna 531008118

NEEDS DESCRIPTION

$

$

Currently unavailable

52

Husqvarna 531002732

BOLT

$

$

Not available

28

Husqvarna 531004612

GEAR ASSY

$

$

Not available

59

Husqvarna 531002777

SPRING PIN

$

$

Not available

58

Husqvarna 725237051

SCREW M6S 6X20
(Superseded to 725237071)

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 531007694

NEEDS DESCRIPTION

$

$

Currently unavailable

33

Husqvarna 725250151

SCREW

$7.99

$

In Stock, Qty 9

0

42

Husqvarna 531007642

NEEDS DESCRIPTION

$

$

Currently unavailable

35

Husqvarna 531002781

NEEDS DESCRIPTION

$

$

Not available

46

Husqvarna 531002763

PLATE, CLOSURE

$

$

Not available

20

Husqvarna 531002753

HOLDER

$

$

Not available

40

Husqvarna 734115201

WASHER - M6

$4.99

$

In Stock, Qty 13

0

21

Husqvarna 506625201

FL WASHER

$

$

Not available

48

Husqvarna 506626101

HEX BOLT
(Superseded to 874780620)

$7.49

$

In Stock, only 3 left!

0

50

Husqvarna 531002716

NEEDS DESCRIPTION

$

$

Not available

26

Husqvarna 531002755

NEEDS DESCRIPTION

$

$

Not available

29

Husqvarna 531004619

BUSHING

$

$

Not available

7

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 531002838

SCREW
(Superseded to 522751501)

$

$

Not available

27

Husqvarna 531007678

PIN RETAINING SCREW

$

$

Not available

37

Husqvarna 725237951

SCREW

$7.99

$

In Stock, only 1 left!

0

54

Husqvarna 531007476

NEEDS DESCRIPTION

$

$

Currently unavailable

5

Husqvarna 531004603

BRACKET

$

$

Not available
