9584-0 - Generac CP 4,500 PSI Pressure Washer Pressure Washer & Cradle No. 87818 Parts Diagram

CP 4,500 PSI Pressure Washer

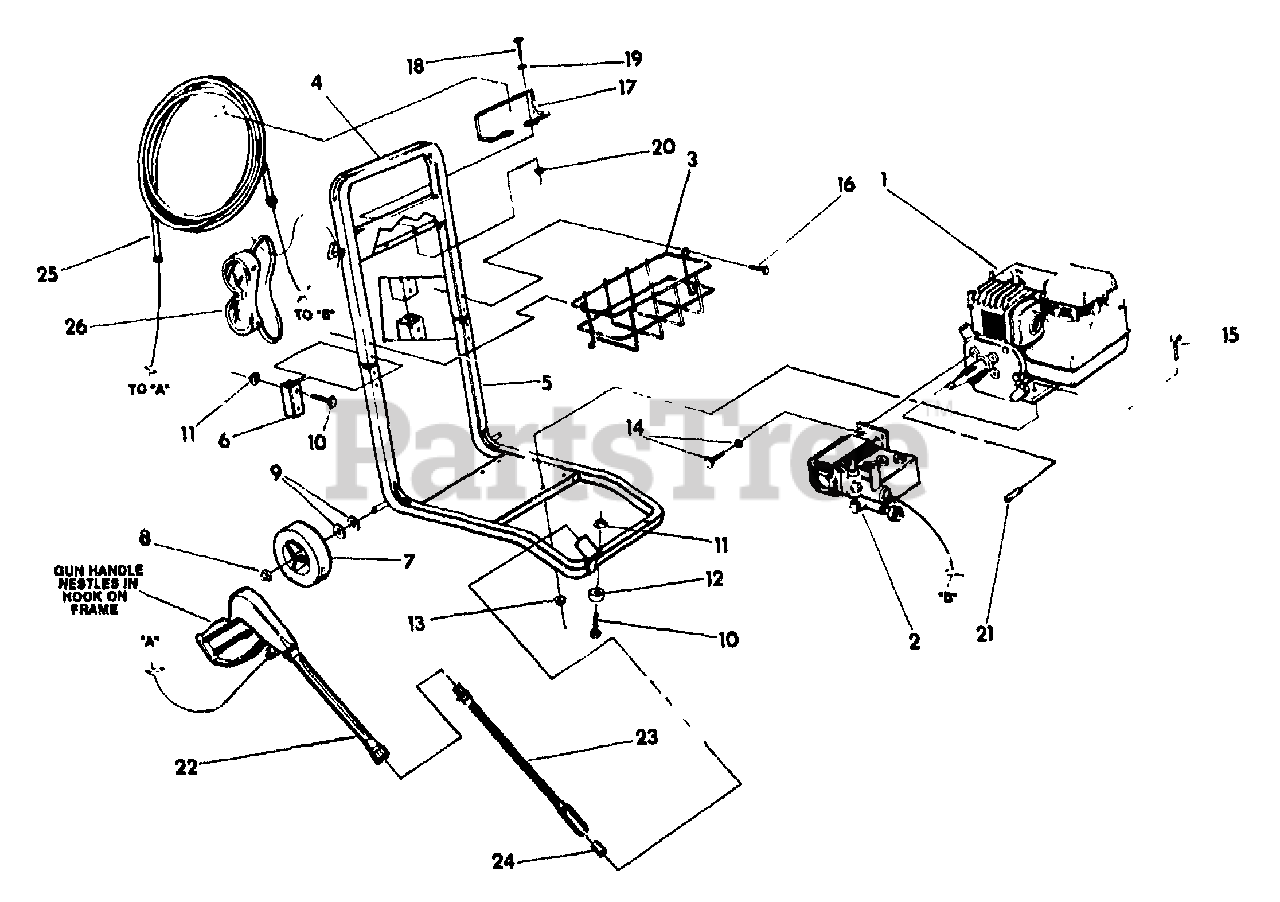

Pressure Washer & Cradle No. 87818 Parts Diagram

  • Title

1

Briggs & Stratton 87611

Briggs & Stratton 5 hp Engine

$

$

Currently unavailable

2

Briggs & Stratton 87822

Pump
(Superseded to 87822GS)

$562.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 87827

Wire Basket

$

$

Currently unavailable

4

Briggs & Stratton 87825

Guide Handle

$

$

Currently unavailable

5

Briggs & Stratton 87824

Cradle Assembly

$

$

Currently unavailable

6

Briggs & Stratton 88271

U-bracket

$

$

Currently unavailable

7

Briggs & Stratton 87820

Wheel Assembly

$

$

Currently unavailable

8

Briggs & Stratton 75402

Push Nut
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

9

Briggs & Stratton 49808

M12 Flat Washer
(Superseded to 49808GS)

$3.99

$

In Stock, only 4 left!

0

10

Briggs & Stratton 51753

M6-1.0 x 40mm Capscrew
(Superseded to 51753GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 52857

M6-1.0 Flange Lock Nut
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 87841

Shock Mount
(Superseded to 87841GS)

$3.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 52858

M8-1.25 Flange Lock Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

14

Briggs & Stratton 86307

5/16"-24 x 3/4" Capscrew with washer
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 39414

M8-1.25 x 35mm Capscrew
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 86292

#10-16 Hex Head Capscrew
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 87816

Wire Hook Support

$

$

Currently unavailable

18

Briggs & Stratton 49815

M5-0.8 x 16mm Capscrew
(Superseded to 49815GS)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 51713

M5 Flat Washer
(Superseded to 51713GS)

$2.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 52856

M5 Flange Lock Nut
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 89314

3/16" sq., 1-7/8" Key
(Superseded to 89314GS)

$4.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 91328

Gun End - 3/8" FML NPT
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 87823

Wand Extension
(Superseded to 87823GS)

$89.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 88001

1.5mm I.D. Nozzle

$

$

Currently unavailable

25

Briggs & Stratton 88053

5/16" I.D. Hose Assembly

$814.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 87815

Safety Goggles
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0
