960 - Paramount Edger, Electric BLOWER ASSEMBLY Parts Diagram

Edger, Electric

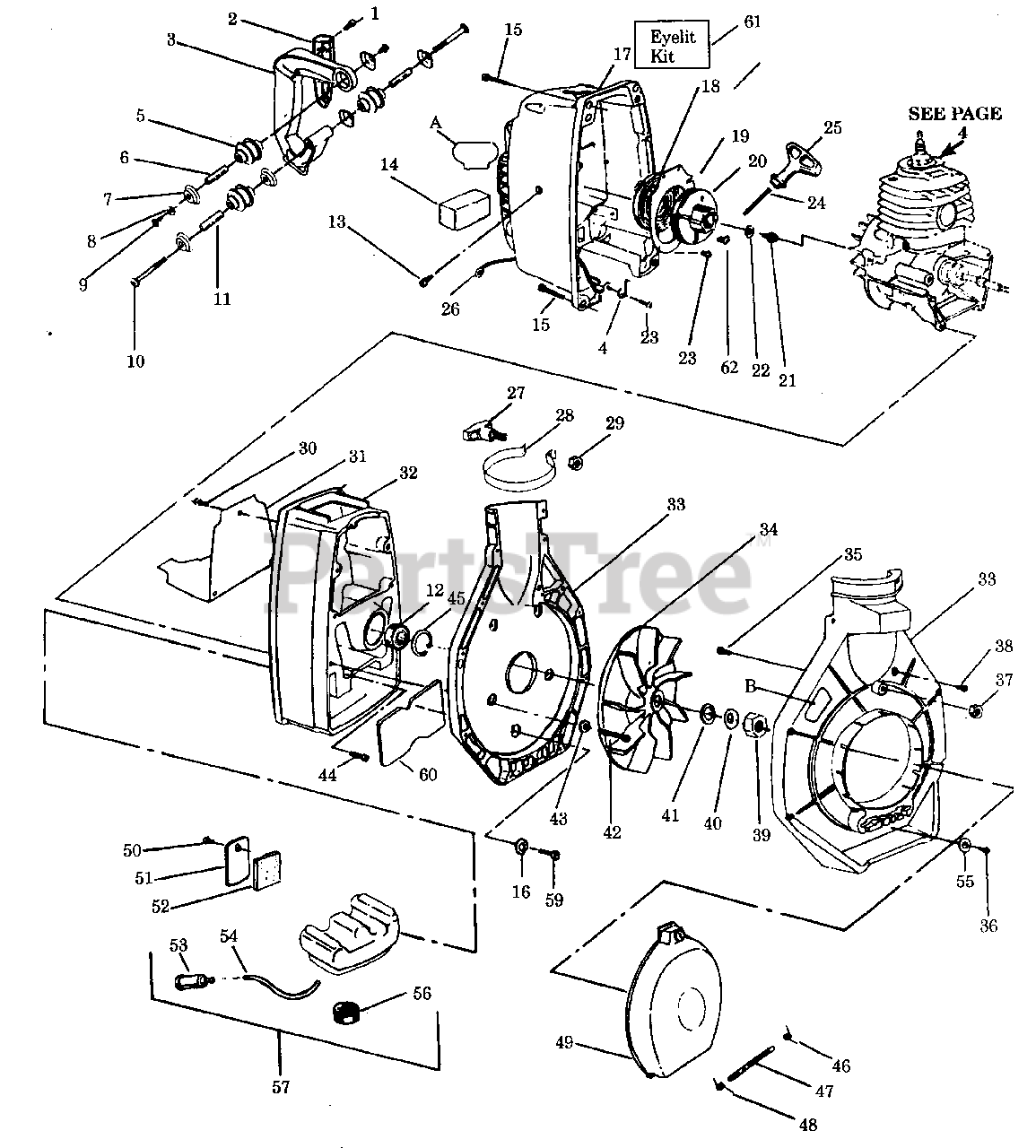

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Poulan 530015635

Screw

$6.99

$

In Stock, only 4 left!

0

2

Poulan 530094212

Handle Cover

$

$

Not available

3

Poulan 530010827

Handle Ass'y.

$

$

Not available

4

Poulan 530027157

Static Ground Wire Model 920,925,960

$

$

Not available

5

Poulan 530026994

Handle Isolator

$

$

Not available

6

Poulan 530015343

Isolator Spacer (Front)

$

$

Not available

7

Poulan 530026163

Isolator Cup

$

$

Not available

8

Poulan 530015629

Washer

$

$

Not available

9

Poulan 530015628

Screw

$

$

Not available

10

Poulan 530015561

Screw

$

$

Not available

11

Poulan 530015342

Isolator Spacer (Rear)

$

$

Not available

12

Poulan 530032091

Ball Bearing (Shroud) See Service Ref. 1

Note: When removing or installing the bearing (f530-032091), the area of the shroud (f530-010824) receiving the bearing must be heated to approximately 300 degrees Farenheit to avoid damaging the shroud.

$

$

Not available

13

Poulan 530015700

Screw

$

$

Not available

14

Poulan 530024371

Air Filter

$

$

Not available

15

Poulan 530015687

Screw

$

$

Not available

16

Poulan 530015123

Washer

$4.99

$

In Stock, only 3 left!

0

17

Poulan 530010860

Fan Housing

$

$

Not available

18

Poulan 530042023

Starter Pulley Spring
(Superseded to 545008007)

$

$

Not available

19

Poulan 530026780

Air Baffle

$

$

Not available

21

Poulan 530015479

Screw
(Superseded to 530071620)

$37.99

$

In Stock, Qty 16

0

22

Poulan 530015123

Washer

$4.99

$

In Stock, only 3 left!

0

23

Poulan 530015544

Screw

$

$

Not available

24

Poulan 530069232

Rope Kit

$5.99

$

In Stock, only 2 left!

0

25

Poulan 530026735

Starter Rope Handle
(Superseded to 530027569)

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 530027175

Ground Wire Model 920,925,960

$

$

Not available

27

Poulan 530069252

"T" Handle Kit
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

28

Poulan 530094222

Blower Tube Clamp
(Superseded to 530095592)

$5.99

$

In Stock, only 2 left!

0

29

Poulan 530015197

Nut

$3.49

$

In Stock, only 3 left!

0

30

Poulan 530015636

Screw

$

$

Not available

31

Poulan 530026776

Heat Deflector

$

$

Not available

32

Poulan 530010824

Shroud

Note: (Incl. #12 & 45)

$

$

Not available

33

Poulan 530069269

Blower Hsg. Ass'y. (Incl. #36,46-49 & 55, & Key No. 5 of Vac Attachment Kit)

$

$

Not available

34

Poulan 530094215

Impeller

$

$

Not available

35

Poulan 530015661

Screw

$

$

Not available

36

Poulan 530015495

Screw
(Superseded to 534222402)

$3.49

$

In Stock, only 3 left!

0

37

Poulan 530001543

Nut

$

$

Not available

38

Poulan 530015367

Screw
(Superseded to 530015814)

$3.49

$

In Stock, Qty 7

0

39

Poulan 530015644

Nut

$

$

Not available

40

Poulan 530015441

Washer

$

$

Not available

41

Poulan 530347987

Washer
(Superseded to 530016030)

$4.99

$

Usually ships in 3-10 days

0

42

Poulan 530015632

Screw

$

$

Not available

43

Poulan 530015682

Washer
(Superseded to 530015149)

$3.49

$

In Stock, only 3 left!

0

44

Poulan 530015168

Screw

$

$

Not available

45

Poulan 530001516

Shroud Bearing Retainer

$

$

Not available

46

Poulan 530015667

Spring-Tension (Right)

$

$

Not available

47

Poulan 530015647

Pivot Pin

$1.49

$

In Stock, only 1 left!

0

48

Poulan 530015672

Spring-Tension (Left)

$

$

Not available

49

Poulan 530094241

Inlet Door Ass'y.

$

$

Not available

50

Poulan 530015638

Screw

$

$

Not available

51

Poulan 530015637

Fuel Tank Retainer

$

$

Not available

52

Poulan 530026781

Fuel Tank Cushion

$

$

Not available

53

Poulan 530010897

Fuel Pick-Up Ass'y
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

54

Poulan 530069247

Line Kit

$2.49

$

In Stock, Qty 20+

0

55

Poulan 530015382

Washer

$

$

Not available

56

Poulan 530010729

Fuel Cap Ass'y.
(Superseded to 530014347)

Note: (Incl. O-Ring)

$9.49

$

In Stock, Qty 6

0

57

Poulan 530010815

Fuel Tank Ass'y.

Note: (Incl. #53,54 & 56)

$

$

Not available

59

Poulan 530015683

Screw

$

$

Not available

60

Poulan 530027350

Fuel Tank Shield

$

$

Not available

61

Poulan 530069235

Eylet Kit

$

$

Not available

62

Poulan 530015823

Screw
(Superseded to 530016080)

Note: (Incl. In Starter Pulley Kit)

$3.49

$

In Stock, only 4 left!

0

A

Poulan 530026938

Instruction Decal

$

$

Not available

B

Poulan 530026925

Blower/Vac Warning Decal

$

$

Not available
