960480001-00 - Weed Eater Lawn Tractor (2010-02) Decals Parts Diagram

Lawn Tractor

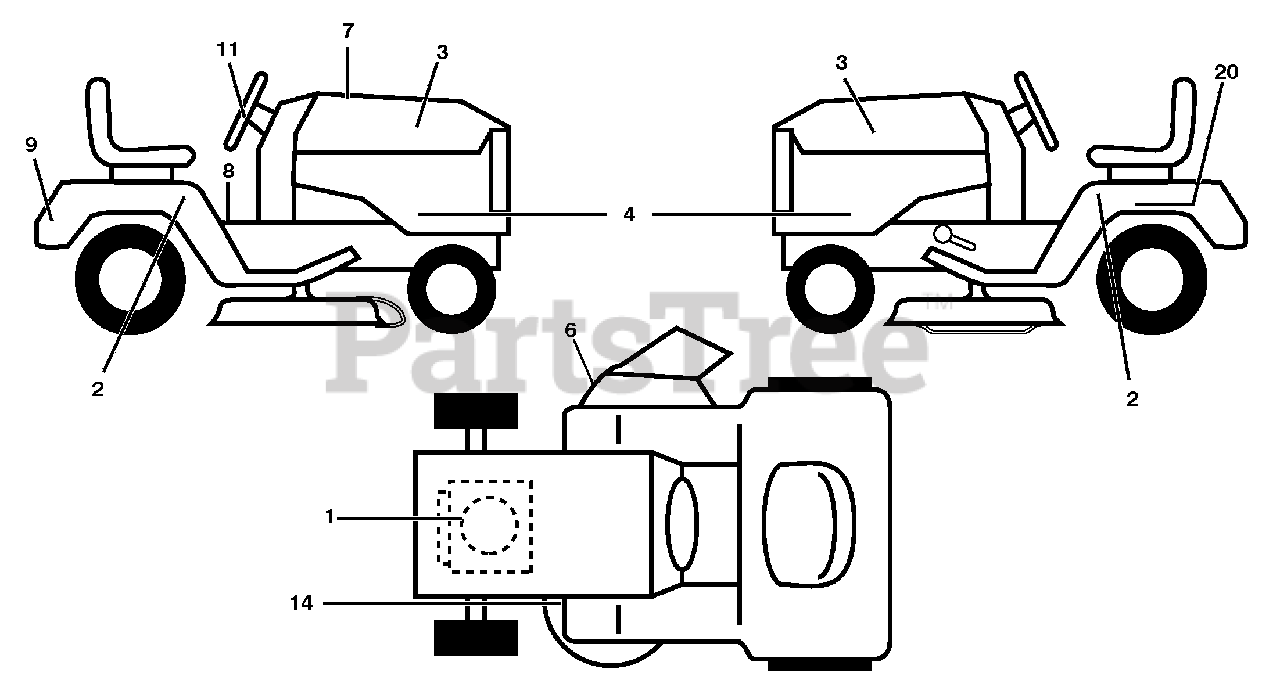

Decals Parts Diagram

  • Title

1

Electrolux/AYP 408808

Decal, Engine HP
(Superseded to 583313001)

$

$

Not available

2

Electrolux/AYP 435094

Decal, Fender RH/LH

$2.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 435084

Decal, Hood
(Superseded to 583503001)

$

$

Not available

4

Electrolux/AYP 435093

Decal, SDPNL.
(Superseded to 583503701)

$

$

Not available

6

Electrolux/AYP 425112

Decal, Warning, Keep Hand Away
(Superseded to 532425113)

$

$

Not available

7

Electrolux/AYP 431912

Decal, Replacement Parts
(Superseded to 583474901)

$

$

Not available

8

Electrolux/AYP 411658

Decal, Fender Warn S/F
(Superseded to 532411658)

$

$

Not available

9

Electrolux/AYP 435088

Decal, Fender Logo
(Superseded to 583503401)

$

$

Not available

11

Electrolux/AYP 435085

Decal, Ins Strg Whl
(Superseded to 583503101)

$

$

Not available

14

Electrolux/AYP 421543

Decal, V-Belt Schematic
(Superseded to 583389101)

$14.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 145005

Decal, Bat Dan/Psn
(Superseded to 532145005)

$3.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 193226X428

Pad Footrest LH
(Superseded to 532409505)

$22.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 193227X428

Pad Footrest RH
(Superseded to 532411273)

$22.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 435057

Manual Operator's (English/French)
(Superseded to 575177001)

$

$

Not available

20

Electrolux/AYP 435058

Manual Operator's (Spanish)

$8.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 435060

Manual Parts (English)

$8.49

$

Usually ships in 3-10 days

0
