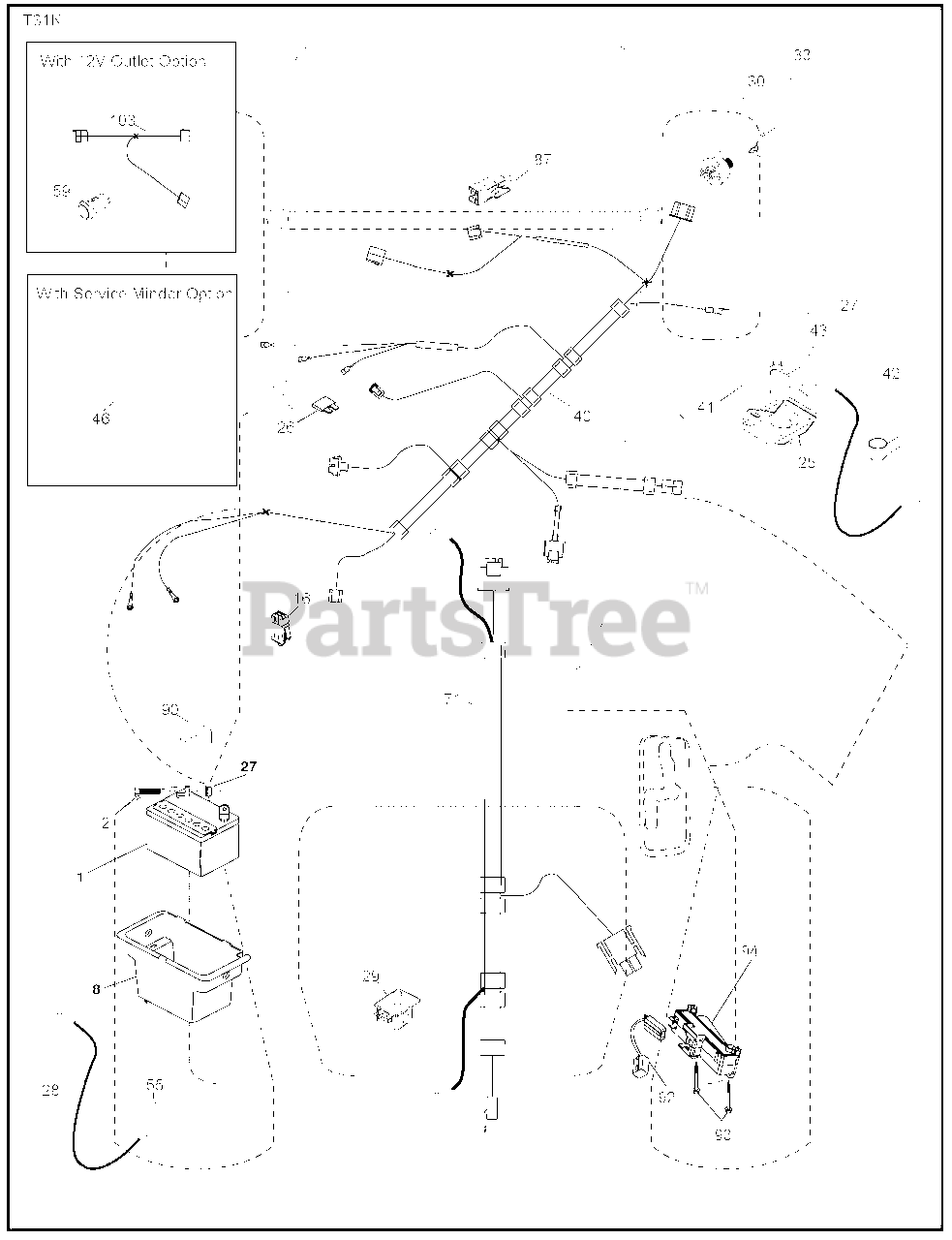

960480001-00 - Weed Eater Lawn Tractor (2010-02) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

Electrolux/AYP 144924

Battery

$

$

Not available

2

Electrolux/AYP 74760412

Bolt Hex Hd 1/4-20 unc x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, Qty 5

0

8

Electrolux/AYP 193228

Box Battery
(Superseded to 532193228)

$18.99

$

In Stock, only 3 left!

0

16

Electrolux/AYP 176138

Switch Interlock
(Superseded to 532176138)

$15.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 412894

Cable Starter Battery 6 Ga. BL/Red 14.5
(Superseded to 532412894)

$15.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 175158

Fuse
(Superseded to 532175158)

$7.49

$

In Stock, Qty 12

0

27

Murray 73510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 198885

Cable Ground 18" Rear Battery Blk 6 Ga.
(Superseded to 532198885)

$30.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 192749

Switch Seat
(Superseded to 532192749)

$21.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 193350

Switch Ign
(Superseded to 532193350)

$13.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 411935

Key/Chain
(Superseded to 532411935)

$10.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 401098

Harness Ign
(Superseded to 532401098)

$120.99

$

In Stock, Qty 7

0

41

Electrolux/AYP 17720408

Screw 1/4-20 unc x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 192507

Solenoid
(Superseded to 582042802)

$13.99

$

In Stock, Qty 20+

0

55

Electrolux/AYP 17060512

Screw 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 400449

Harness Ign. Chass.
(Superseded to 532400449)

$40.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 197802

Switch Interlock Clutch
(Superseded to 532197802)

$18.99

$

In Stock, Qty 16

0

90

Electrolux/AYP 400725

Cover Terminal
(Superseded to 532400725)

$6.49

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 196615

Harness Pigtail Reverse Switch
(Superseded to 532196615)

$18.99

$

In Stock, only 1 left!

0

93

Electrolux/AYP 192540

Screw Plastic 10-14 x 2.0
(Superseded to 532192540)

$4.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 191834

Modual Reverse ROS
(Superseded to 532191834)

$37.99

$

Usually ships in 3-10 days

0
