960480001-00 - Weed Eater Lawn Tractor (2010-02) Steering Parts Diagram

Lawn Tractor

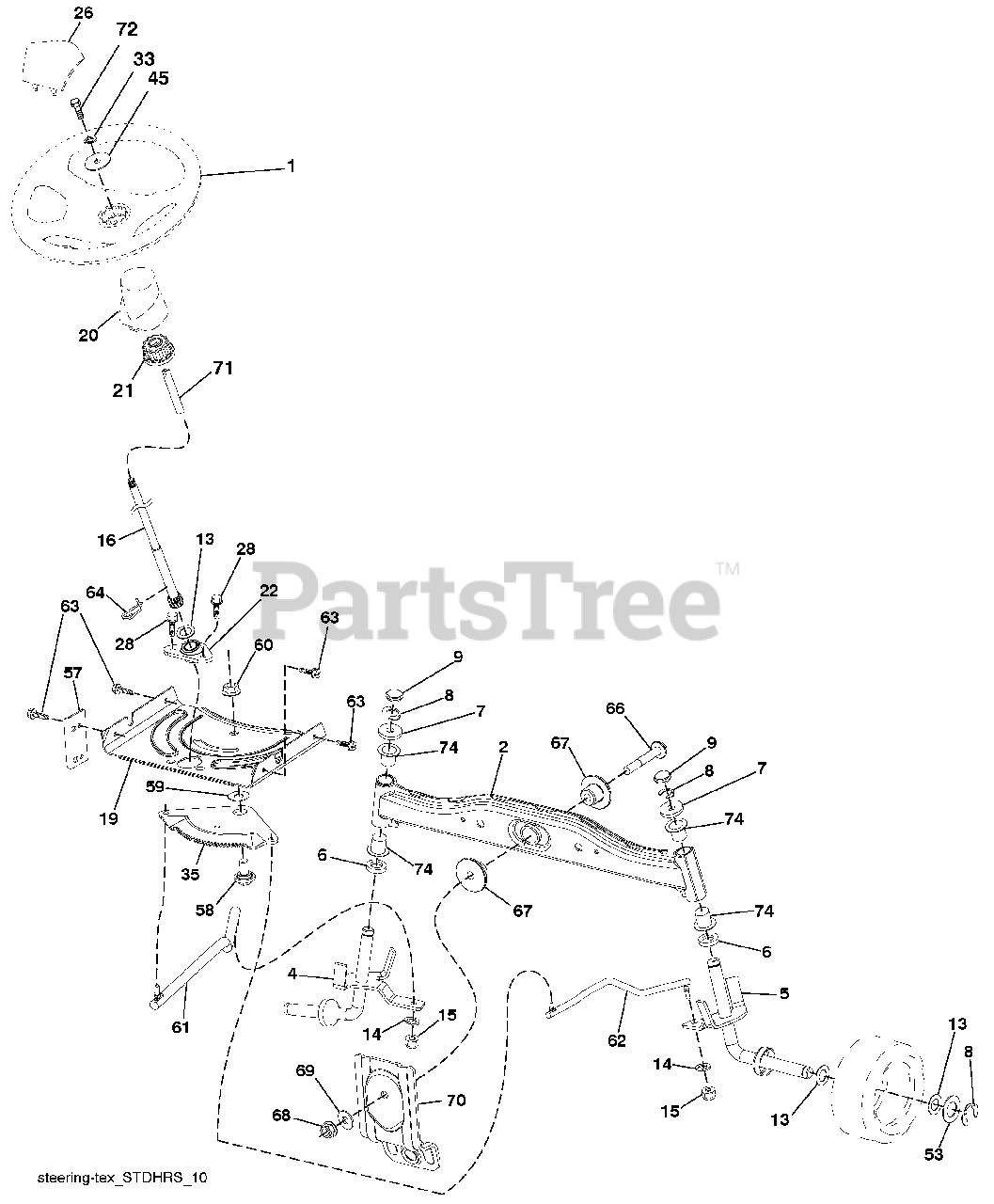

Steering Parts Diagram

  • Title

1

Electrolux/AYP 414803X428

Wheel, Steering
(Superseded to 532424543)

$40.99

$

In Stock, Qty 14

0

2

Electrolux/AYP 418168

Axle Asm., Front
(Superseded to 532418168)

$46.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 416845

Spindle Asm., LH
(Superseded to 583361001)

$37.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 416846

Spindle Asm., RH
(Superseded to 583361101)

$37.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 6266H

Washer Thrust 0.75 x 1.23
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$3.49

$

In Stock, Qty 20+

0

8

Electrolux/AYP 12000029

Ring, Clip #T5304-75
(Superseded to 812000029)

$3.99

$

In Stock, Qty 20+

0

9

Electrolux/AYP 121232X

Cap, Spindle
(Superseded to 532121232)

$3.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 121749X

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

In Stock, Qty 20+

0

14

Electrolux/AYP 10040600

Washer Lock 3/8
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 73540600

Nut, Crown Lock 3/8-24 unf
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 429374

Shaft Steering
(Superseded to 587738903)

$28.99

$

In Stock, Qty 6

0

19

Electrolux/AYP 194729

Plate Steering
(Superseded to 532194729)

$18.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 198375X428

Boot, Steering
(Superseded to 532411291)

$7.49

$

In Stock, Qty 19

0

21

Electrolux/AYP 186737

Adapter, Wheel Steering
(Superseded to 587738905)

$7.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 420537

Support, Strg. Lower
(Superseded to 587738901)

$17.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 414854X428

Insert, Wheel Steering
(Superseded to 532424691)

$7.99

$

In Stock, Qty 5

0

28

Electrolux/AYP 17000612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 10040500

Washer Lock 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 194732

Gear, Sector Plate
(Superseded to 532194732)

$31.99

$

In Stock, Qty 20+

0

45

Electrolux/AYP 19113812

Washer 11/32 x 2-3/8 x 12 Ga.
(Superseded to 819113812)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 188967

Washer Hardened .793 x 1.637 x .060
(Superseded to 532188967)

$4.99

$

In Stock, Qty 20+

0

57

Electrolux/AYP 407465

Bracket Upstop
(Superseded to 532407465)

$4.99

$

In Stock, only 1 left!

0

58

Electrolux/AYP 194747

Bolt Shoulder Sector Pivot CFM
(Superseded to 532194747)

$8.99

$

In Stock, Qty 17

0

59

Electrolux/AYP 194748

Washer Thrust Sector Steering
(Superseded to 532194748)

$7.49

$

In Stock, Qty 20+

0

60

Electrolux/AYP 73971000

Nut Flange Lock 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, Qty 20+

0

61

Electrolux/AYP 194740

Draglink, LH
(Superseded to 597047801)

$12.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 194741

Draglink, RH
(Superseded to 597047902)

$13.99

$

In Stock, Qty 20+

0

63

Electrolux/AYP 17000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

64

Electrolux/AYP 199849

Retainer Clip Spring Steering
(Superseded to 532199849)

$6.49

$

In Stock, Qty 20+

0

66

Electrolux/AYP 71020748

Bolt Hex Fghd 7/16-14 x 3 Serr
(Superseded to 871020748)

$6.49

$

In Stock, Qty 8

0

67

Electrolux/AYP 194737

Bushing PM Front Axle
(Superseded to 532194737)

$4.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 73900700

Nut Lock Flange 7/16-14 Gr. 5
(Superseded to 873900700)

$7.49

$

In Stock, Qty 20+

0

69

Electrolux/AYP 199162

Washer 1.5 x .505 x .118
(Superseded to 532199162)

$6.49

$

In Stock, Qty 9

0

70

Electrolux/AYP 417065

Bracket Deck Susp. Front
(Superseded to 532417065)

$8.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 190752

Shaft Ext. Steering
(Superseded to 532190752)

$17.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 428982

Bolt 5/16-18 x 4 w/Patch
(Superseded to 532428982)

$4.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 3366R

Bearing
(Superseded to 532003366)

$3.49

$

In Stock, Qty 20+

0
