960710010-01 - Husqvarna Grass Catcher (2008-11) PRODUCT COMPLETE Parts Diagram

Grass Catcher

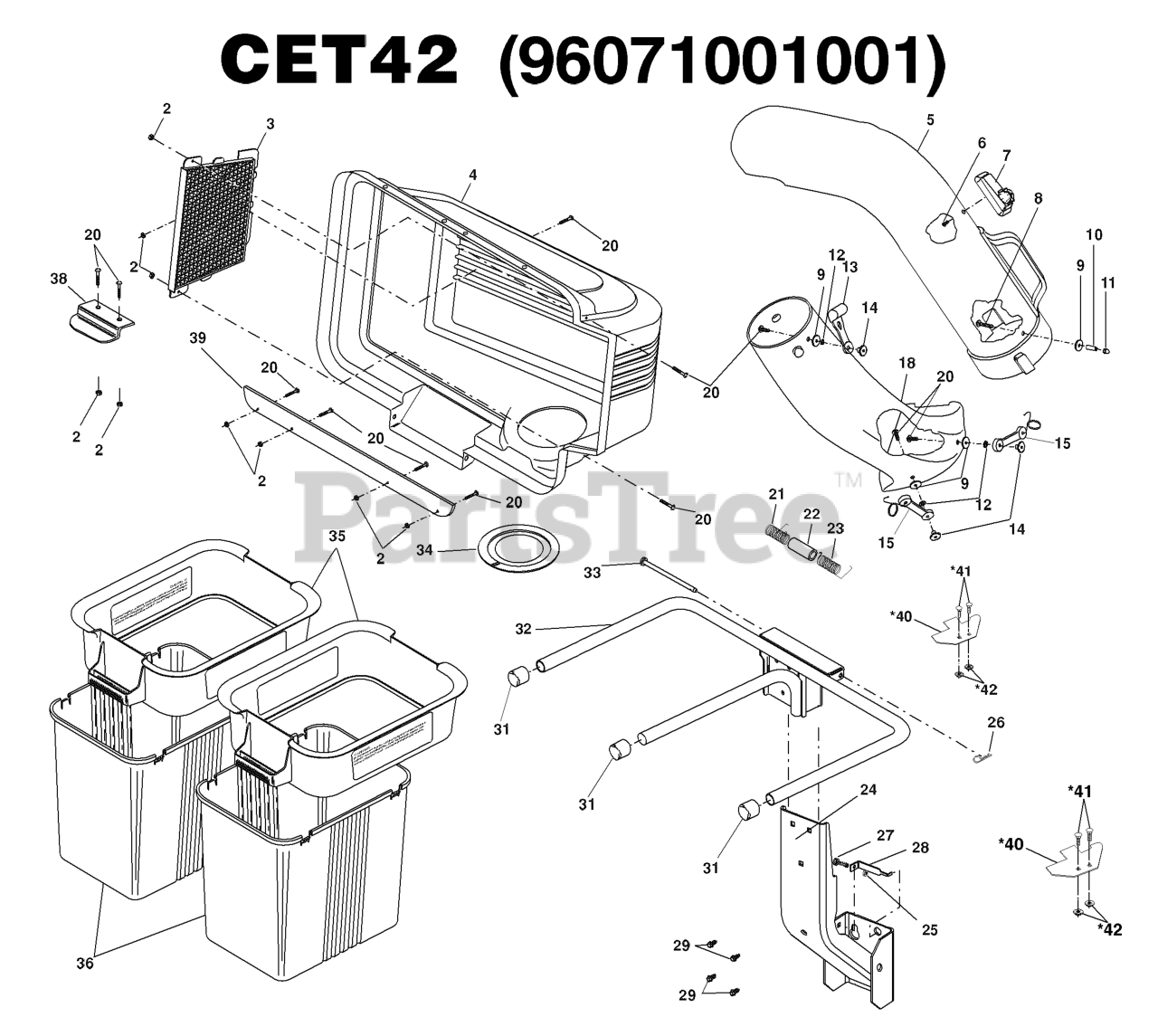

PRODUCT COMPLETE Parts Diagram

  • Title

32

Husqvarna 532179746

FRAME.ASM.BAGGER.2BIN.QC42B

$121.99

$

In Stock, only 1 left!

0

18

Husqvarna 532162803

LOWER CHUTE FOR 42" BAGGER
(Superseded to 592866501)

$106.99

$

In Stock, only 1 left!

0

27

Husqvarna 872140405

BOLT T

$7.49

$

In Stock, Qty 8

0

13

Husqvarna 532109808

LATCH.HOOD.

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532130933

INDICATOR ASM BAG

$7.49

$

In Stock, Qty 12

0

14

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

15

532160793

LATCH ASSY

$

$

Not available

23

Husqvarna 532132983

SPRING COVER RH

$6.49

$

In Stock, only 2 left!

0

3

Husqvarna 532127533

COVER SCREEN

$18.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532171061

COVER.ASM.BAG.W/STRIP

$121.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532132796

SPRING COVER LH

$6.49

$

In Stock, only 2 left!

0

22

Husqvarna 532133235

SPACER.COVER.BAGGER

$7.49

$

In Stock, only 1 left!

0

35

Husqvarna 532183286

CONTAINER TOP

$31.99

$

In Stock, only 1 left!

0

41

Husqvarna 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532155042

STRIP.REINFORCE.BAGGER.2BIN.BL

$18.99

$

In Stock, only 2 left!

0

11

Husqvarna 532060867

NUT
(Superseded to 539108086)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

40

Husqvarna 532415405

BRACKET.CHUTE.BAGGER.BLACK
(Superseded to 583748401)

$

$

Not available

42

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 871081010

SCREW
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532127534

GASKET.COVER.BAGGER

$12.99

$

In Stock, Qty 6

0

33

Husqvarna 532192786

BAGGER.HINGE.PIN

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna 818021008

SCREW

$6.49

$

In Stock, only 1 left!

0

9

Husqvarna 532052784

RP STEEL WASHER
(Superseded to 819061216)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 532180923

POST.SUPPORT.BAGGER.BLACK

$72.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532174083

PLUG, TUBING END

$7.49

$

In Stock, only 2 left!

0

28

Husqvarna 532179745

STOP BRACKET, BAGGER 2 BIN

$

$

Not available

38

Husqvarna 532130895

LATCH CER38

$7.49

$

In Stock, only 2 left!

0

2

Husqvarna 532069180

LOCKNUT

$6.49

$

In Stock, only 2 left!

0

10

Husqvarna 532007206

SPACER LT

$7.49

$

In Stock, Qty 16

0

8

Husqvarna 532087175

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 17

0

5

Husqvarna 532126840

CHUTE.UPPER.42"

$120.99

$

In Stock, only 1 left!

0

36

Husqvarna 532129586

CONTAINER BOTTOM

$80.99

$

In Stock, only 4 left!

0

12

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, Qty 20+

0
