960730031 - Husqvarna Grass Catcher (2011-05) PRODUCT COMPLETE Parts Diagram

Grass Catcher

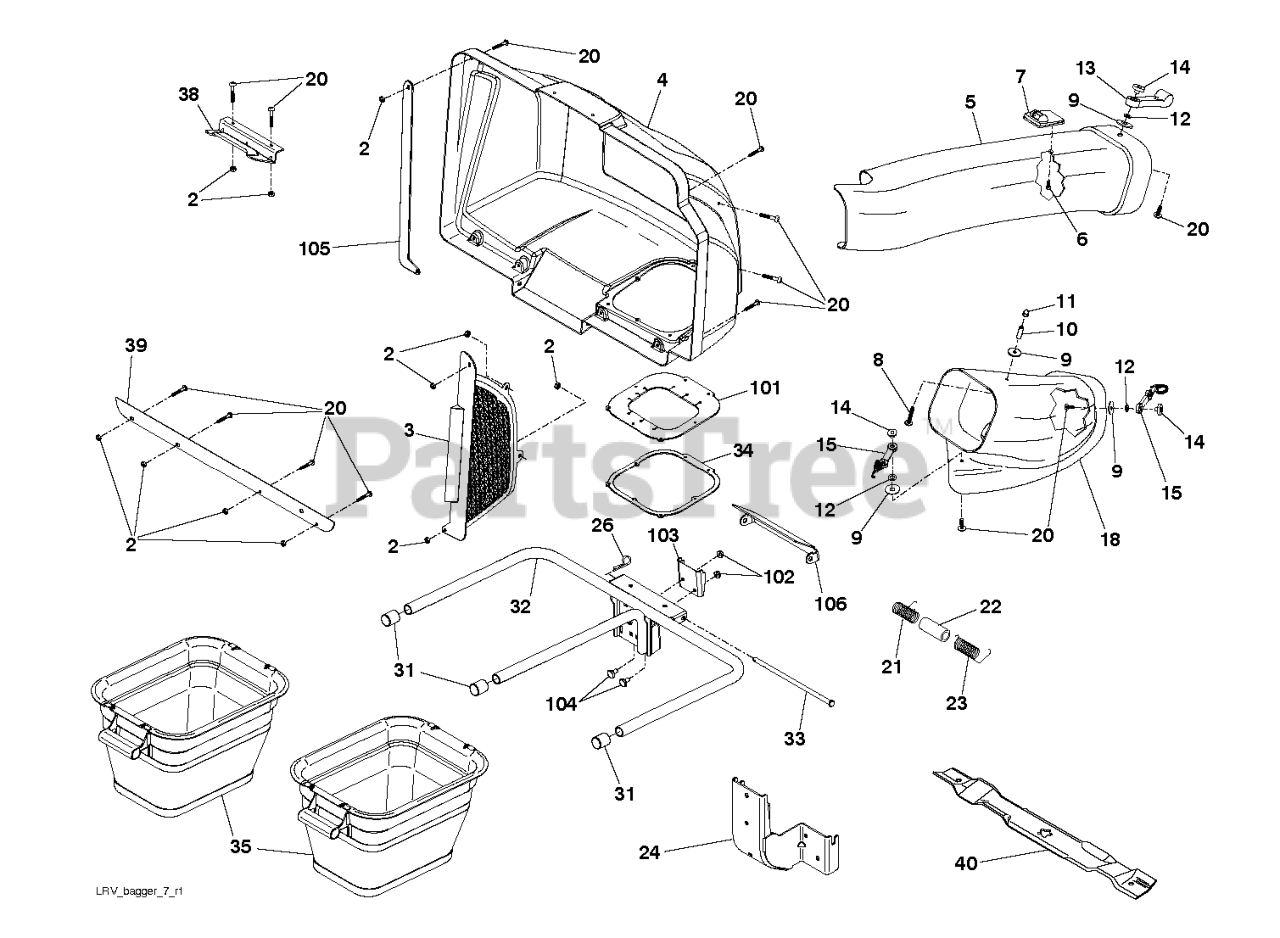

PRODUCT COMPLETE Parts Diagram

  • Title

39

Husqvarna 532155042

STRIP.REINFORCE.BAGGER.2BIN.BL

$18.99

$

In Stock, only 2 left!

0

13

Husqvarna 532109808

LATCH.HOOD.

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 532132796

SPRING COVER LH

$6.49

$

In Stock, only 2 left!

0

7

Husqvarna 532130933

INDICATOR ASM BAG

$7.49

$

In Stock, Qty 12

0

32

Husqvarna 532179746

FRAME.ASM.BAGGER.2BIN.QC42B

$121.99

$

In Stock, only 1 left!

0

5

Husqvarna 532436454

CHUTE.UPPER.30" LRV(B)

$47.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532133235

SPACER.COVER.BAGGER

$7.49

$

In Stock, only 1 left!

0

104

Husqvarna 532424297

BOLT.SHOULDER.1/2X12

$

$

Not available

31

Husqvarna 532174083

PLUG, TUBING END

$7.49

$

In Stock, only 2 left!

0

102

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532436453

CHUTE.LOWER.30" LRV(B)

$91.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532192786

BAGGER.HINGE.PIN

$12.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532171345

SPACER, SPLIT
(Superseded to 532007206)

$7.49

$

In Stock, Qty 15

0

8

Husqvarna 532087175

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 16

0

4

Husqvarna 532436615

COVER.TOP.GENERIC.

Note: "3, 38, 39"

$

$

Not available

11

Husqvarna 532060867

NUT
(Superseded to 539108086)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532127533

COVER SCREEN

$18.99

$

Usually ships in 3-10 days

0

12

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532442065

GASKET.COVER.BAGGER.
(Superseded to 584360701)

$27.99

$

Usually ships in 3-10 days

0

101

Husqvarna 532442065

GASKET.COVER.BAGGER.
(Superseded to 584360701)

$27.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532419273

BLADE, MULCH.LRV30

$15.99

$

In Stock, Qty 15

0

23

Husqvarna 532132983

SPRING COVER RH

$6.49

$

In Stock, only 2 left!

0

103

Husqvarna 532442104

BRACKET

$

$

Not available

35

Husqvarna 532436810

SOFT.BAG.ASSEM.G30LRV

$72.99

$

Usually ships in 3-10 days

0

20

Husqvarna 871081010

SCREW
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 818021008

SCREW

$6.49

$

In Stock, only 1 left!

0

106

Husqvarna 532444103

BAGGER SPRING BRACKET

$

$

Not available

38

Husqvarna 532130895

LATCH CER38

$7.49

$

In Stock, only 2 left!

0

26

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

105

Husqvarna 532442526

SEAL.SIDE.LRV.L

$

$

Not available

15

532160793

LATCH ASSY

$

$

Not available

2

Husqvarna 532069180

LOCKNUT

$6.49

$

In Stock, only 2 left!

0

14

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 532438167

ASM.SUPPORT.BAGGER

$61.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532052784

RP STEEL WASHER
(Superseded to 819061216)

$4.99

$

In Stock, Qty 20+

0
