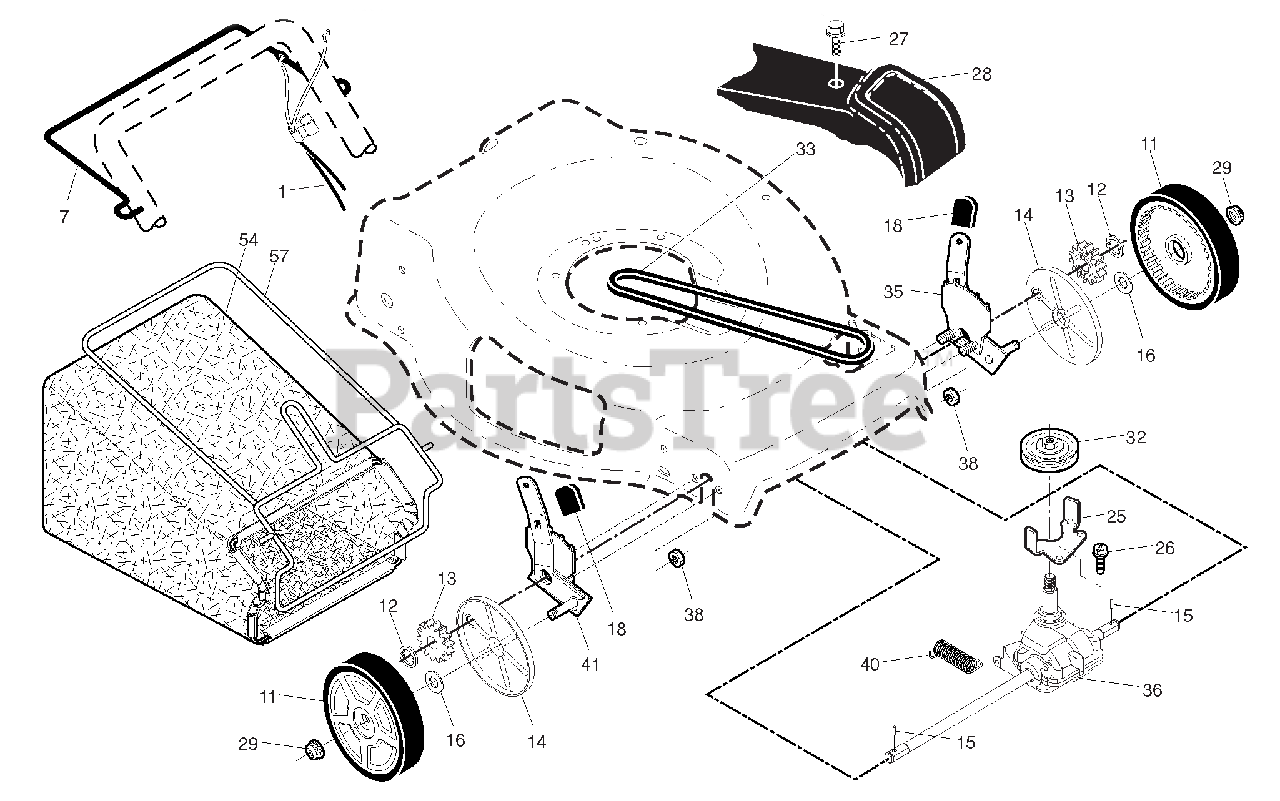

961002 (961460009-01) - Ariens 22" Walk-Behind Mower, Briggs & Stratton Mower Assembly Parts Diagram

22" Walk-Behind Mower, Briggs & Stratton

Mower Assembly Parts Diagram

  • Title
1

Ariens 21548494

CABLE, DRIVE CONTROL

$61.49

$

Usually ships in 4-12 days

0

7

Ariens 21548493

CONTROL BAR, DRIVE
(Superseded to 21548844)

$15.93

$

Usually ships in 4-12 days

0

11

Ariens 21548402

WHEEL & TIRE ASSEMBLY

$40.53

$

In Stock, only 2 left!

0

12

$3.69

$

In Stock, Qty 20+

0

13

$6.09

$

In Stock, Qty 5

0

14

Ariens 21548456

DUST COVER

$6.65

$

Usually ships in 4-12 days

0

15

Ariens 21547585

ROD, BRAKE, PARK

$

$

Not available

16

Ariens 21547471

Washer, Flat 3/8

$6.65

$

Usually ships in 4-12 days

0

18

Ariens 21547504

Selector Knob

$6.65

$

Usually ships in 4-12 days

0

25

Ariens 21548466

BELT KEEPER

$

$

Not available

26

Ariens 21548414

SCREW, HI-LO THREAD #12 X 5/8

$6.09

$

Usually ships in 4-12 days

0

27

Ariens 21547478

Pan Head Tapping Screw #10-24

$6.65

$

In Stock, only 2 left!

0

28

Ariens 21548423

DRIVE COVER

$14.48

$

Usually ships in 4-12 days

0

29

Ariens 21546896

Nut, Hex
(Superseded to 21546897)

$3.63

$

Usually ships in 4-12 days

0

32

Ariens 21548443

DRIVE PULLEY

$9.78

$

Usually ships in 4-12 days

0

33

$19.68

$

Usually ships in 4-12 days

0

35

Ariens 21548497

WHEEL ADJUSTER, FRONT LH W/BRG
(Superseded to 21548404)

Note: (Includes Bearing)

$29.29

$

Usually ships in 4-12 days

0

36

Ariens 21548434

GEARCASE ASSEMBLY, COMPLETE
(Superseded to 21549050)

$106.39

$

Usually ships in 4-12 days

0

38

Ariens 21548415

LOCKNUT, HEX 1/4-20
(Superseded to 06500821)

$1.96

$

In Stock, Qty 9

0

40

$6.65

$

Usually ships in 4-12 days

0

41

Ariens 21548496

WHEEL ADJUSTER, FRONT RH W/BRG

Note: (Includes Bearing)

$27.89

$

Usually ships in 4-12 days

0

54

Ariens 21548448

GRASSBAG

$

$

Not available

57

Ariens 21548427

FRAME, GRASSBAG
(Superseded to 21548845)

$22.08

$

In Stock, only 1 left!

0
