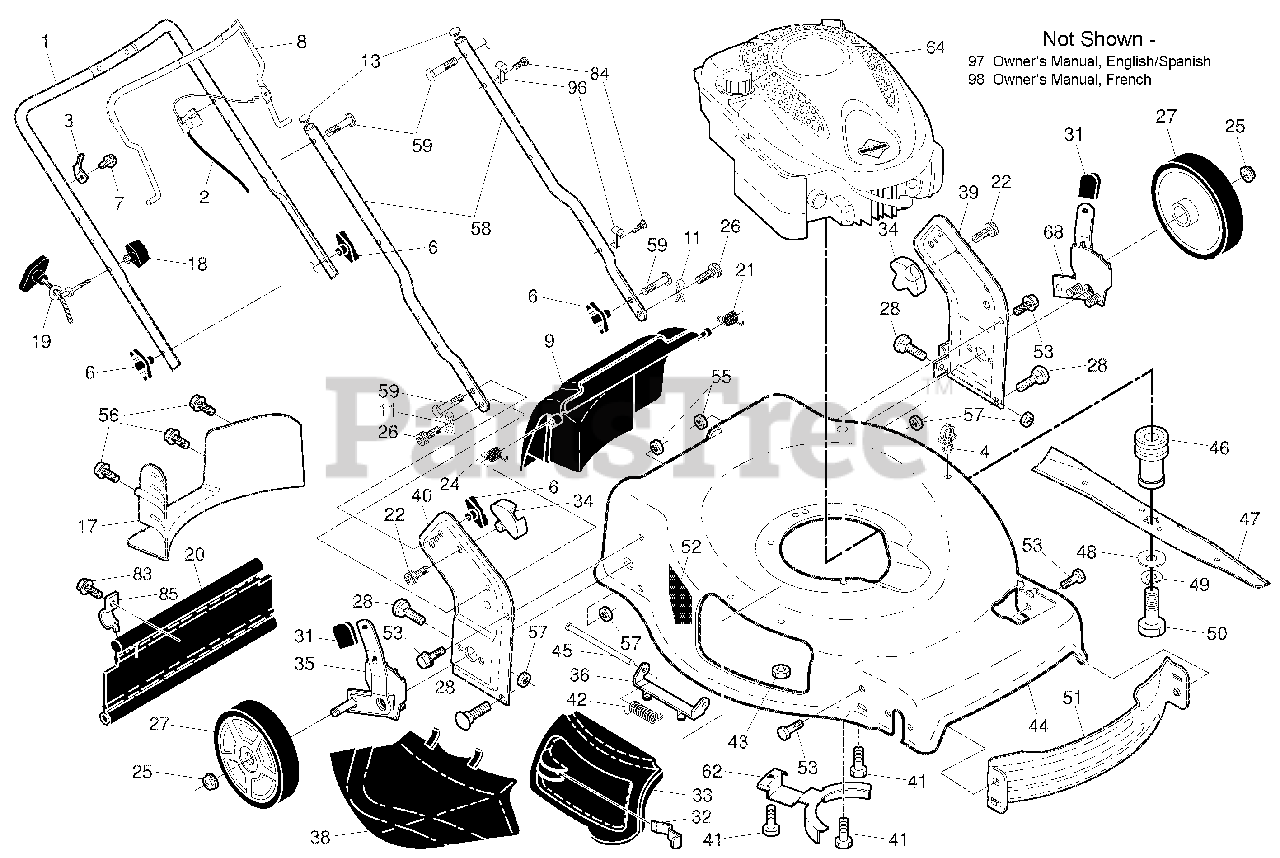

961002 (961460009-02) - Ariens 22" Walk-Behind Mower, Briggs & Stratton Repair Parts Parts Diagram

22" Walk-Behind Mower, Briggs & Stratton

Repair Parts Parts Diagram

  • Title

1

Ariens 21548447

UPPER HANDLE

$50.99

$

Usually ships in 4-12 days

0

2

Ariens 21548490

CABLE, ENGINE ZONE CONTROL

$28.99

$

Usually ships in 4-12 days

0

3

Ariens 21547461

UP-STOP BRACKET

$

$

Not available

4

Ariens 21546110

CLIP.PUSH-IN.HINGED

$

$

Not available

6

Ariens 21547509

Handle Knob

$5.49

$

Usually ships in 4-12 days

0

7

Ariens 21548023

SCREW, HEX WASHER HEAD

$

$

Not available

8

Ariens 21548461

CONTROL BAR

$40.99

$

Usually ships in 4-12 days

0

9

Ariens 21548430

REAR DOOR ASSEMBLY

$

$

Not available

11

Ariens 21548435

HAIRPIN, DOOR/HANDLE PIVOT

$10.99

$

Usually ships in 4-12 days

0

13

Ariens 21548442

PLUG, HANDLE BAR

$4.99

$

Usually ships in 4-12 days

0

17

Ariens 21548462

REAR BAFFLE

$17.99

$

Usually ships in 4-12 days

0

18

Ariens 21548821

T-KNOB

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 21548820

ROPE GUIDE

$12.99

$

Usually ships in 4-12 days

0

20

Ariens 21548437

REAR SKIRT

$20.99

$

Usually ships in 4-12 days

0

21

Ariens 21548426

SPRING, REAR DOOR, LH, BLACK

$6.99

$

Usually ships in 4-12 days

0

22

Ariens 21548412

SCREW, PANHEAD, TORX #20

$

$

Not available

24

Ariens 21548425

SPRING, REAR DOOR, RH, GREY

$

$

Not available

25

Ariens 21546896

Nut, Hex
(Superseded to 21546897)

$6.49

$

Usually ships in 4-12 days

0

26

Ariens 21548424

SCREW, REAR DOOR/HANDLE PIVOT

$

$

Not available

27

Ariens 21548449

WHEEL & TIRE ASSEMBLY, REAR

$38.99

$

Usually ships in 4-12 days

0

28

Ariens 21548445

BOLT, CARRIAGE 5/16-18 X 5/8
(Superseded to 21546770)

$3.99

$

In Stock, Qty 20+

0

31

Ariens 21547504

Selector Knob

$

$

Not available

32

Ariens 21548459

LATCH, MULCHER DOOR
(Superseded to 21549090)

$6.49

$

In Stock, only 1 left!

0

33

Ariens 21548441

MULCHER DOOR

$

$

Not available

34

Ariens 21548460

BRACKET, GRASSBAG

$

$

Not available

35

Ariens 21548440

KIT, WHEEL ADJUSTER, REAR, RH

$

$

Not available

36

Ariens 21547480

Hinge Bracket Assembly

$

$

Not available

38

Ariens 21548458

DISCHARGE DEFLECTOR

$17.99

$

In Stock, only 2 left!

0

39

Ariens 21548840

HANDLE BRACKET, LH

$

$

Not available

40

Ariens 21548841

HANDLE BRACKET, RH

$25.99

$

Usually ships in 4-12 days

0

41

Ariens 21546874

Screw, Hex Head, Threaded, Rol

$6.99

$

Usually ships in 4-12 days

0

42

Ariens 21547483

Spring, Torsion

$6.99

$

Usually ships in 4-12 days

0

43

Ariens 21548415

LOCKNUT, HEX 1/4-20
(Superseded to 06500821)

$0.99

$

In Stock, Qty 11

0

44

Ariens 21548492

KIT, LAWN MOWER HOUSING

$168.99

$

Usually ships in 4-12 days

0

45

Ariens 21547479

Rod, Hinge

$6.49

$

Usually ships in 4-12 days

0

46

Ariens 21548842

BLADE ADAPTER / PULLEY

$22.99

$

Usually ships in 4-12 days

0

47

Ariens 21548433

BLADE, 22"

$27.99

$

Usually ships in 4-12 days

0

48

Ariens 21546910

Hardened Washer

$

$

Not available

49

Ariens 21546909

Helical Lockwasher
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

50

Ariens 21546911

Screw, Hex Head, Grade 8 3/8-2

$7.99

$

In Stock, only 2 left!

0

51

Ariens 21548438

FRONT BAFFLE

$

$

Not available

52

Ariens 21546891

Danger Decal

$

$

Not available

53

Ariens 21546179

BOLT.5/16-18HEX.WHS.HD.LCKSERR

$7.49

$

In Stock, Qty 20+

0

55

Ariens 21548415

LOCKNUT, HEX 1/4-20
(Superseded to 06500821)

$0.99

$

In Stock, Qty 11

0

56

Ariens 21546912

Screw, Rear Baffle

$

$

Not available

57

Ariens 21548413

NUT, HEX

$6.99

$

Usually ships in 4-12 days

0

58

Ariens 21548468

BAR, LOWER HANDLE

$19.99

$

Usually ships in 4-12 days

0

59

Ariens 21546883

Handle Bolt

$3.99

$

In Stock, Qty 20+

0

62

Ariens 21548467

BELT RETAINER

$

$

Not available

64

Engine, Briggs & Stratton, Model Number 126M02- 0131-F1

$

$

Not available

64

(For engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

Note: (For engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

68

Ariens 21548439

KIT, WHEEL ADJUST, REAR, LH

$

$

Not available

83

Ariens 21548444

SCREW

$3.99

$

Usually ships in 4-12 days

0

84

Ariens 21548436

FASTENER, PUSH

$

$

Not available

85

Ariens 21548465

MOUNTING BRACKET, REAR SKIRT

$

$

Not available

96

Ariens 21546887

Clip, Cable

$

$

Not available

97

Ariens 21548833

OWNER'S/PARTS MANUAL (ENG/SPA)

$

$

Not available

98

Ariens 21548834

OWNER'S/PARTS MANUAL (FRENCH)

$

$

Not available
