961120115-07 - Poulan Walk-Behind Mower (2015-04)

Walk-Behind Mower

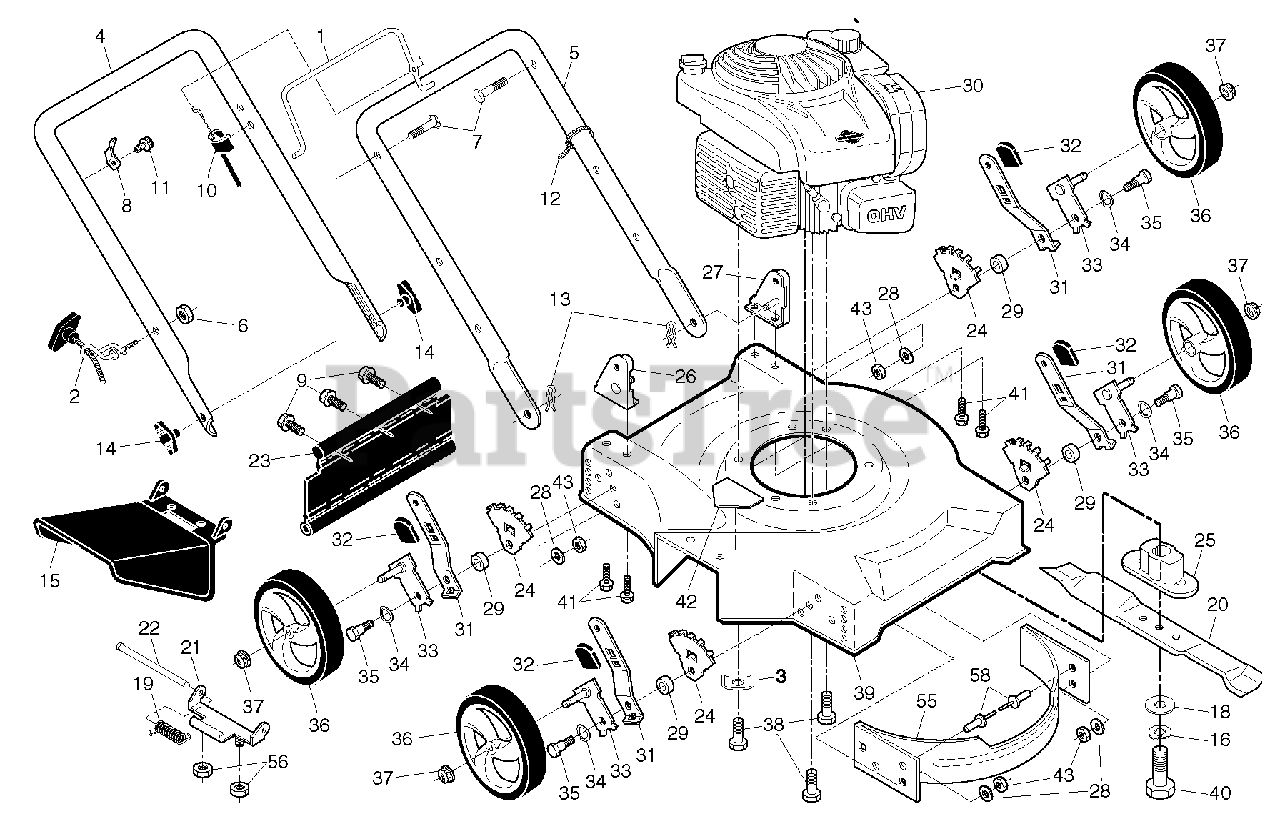

961120115-07 - Poulan Walk-Behind Mower (2015-04) > Parts Diagrams (1) > FRAME ENGINE

  • Title
532196025

1

BAIL.CONT.D.STRAIGHT.PUSH.BLK

Part# 532196025

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $8.93

581902101

2

Rope Guide, Blk Zinc Chrom

Part# 581902101

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $2.23

532125078

3

WASHER.ENGINE.BZP

Part# 532125078

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $4.46

532448263

4

HANDLE.UPPER.ECONOMY.BLACK

Part# 532448263

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $25.70

532434514

5

HANDLE.LOWER.D-STRAIT.BLACK

Part# 532434514

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $25.70

581912601

6

T-KNOB.NEW ROPE GUIDE

Part# 581912601

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $2.23

532191574

7

BOLT, HANDLE 5/16-18X1.75

Part# 532191574

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $2.75

532430034

8

BRACKET.UPSTOP.RT

Part# 532430034

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $3.34

532189241

9

SCREW.HEX.WASH.HD.TAPPING

Part# 532189241

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

532440934

10

CABLE.MZR.RATO.22"LOW.

Part# 532440934

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $13.41

532178848

11

SCREW

Part# 532178848

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $4.46

532066426

12

TIE GUIDE

Part# 532066426 (Superseded to 532007192)

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

532051793

13

HAIRPIN COTTER

Part# 532051793

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

532191938

14

Part# 532191938

OEM Warranty Repair Part for Poulan

Not available

532432040

15

GUARD.DISCHARGE.ECON.BLK.US/CE

Part# 532432040

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $7.82

532850263

16

Part# 532850263

OEM Warranty Repair Part for Poulan

Not available

532851074

18

WASHER,HARDEN

Part# 532851074

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $2.78

532411832

19

SPRING.SIDE.DISCHARGE

Part# 532411832

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $3.34

532145106

20

Mower Blade, 20" Mulching

Part# 532145106

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $13.41

532088602

21

HINGE DEFLECTOR

Part# 532088602

OEM Warranty Repair Part for Poulan

Not available

532150215

22

HINGE ROD

Part# 532150215

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $4.46

532189240

23

SKIRT.ECON.20.SD.WHL.ADJ

Part# 532189240 (Superseded to 583181001)

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 7 business days

Your price: $7.82

532410594

24

WHEEL ADJ BRACKET FRONT

Part# 532410594

OEM Warranty Repair Part for Poulan

Not available

581547901

25

ADAPTOR.BLADE.7/8

Part# 581547901

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $13.41

532170975

26

HANDLE BRACKET ASM. RH

Part# 532170975

Note: RH

OEM Warranty Repair Part for Poulan

Not available

532170977

27

HANDLE BRACKET ASM. LH

Part# 532170977

Note: LH

OEM Warranty Repair Part for Poulan

Not available

532061537

28

WASHER

Part# 532061537 (Superseded to 819132012)

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $5.81

532401629

29

SPACER.HEIGHT.ADJUSTER

Part# 532401629

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $3.34

000000000

30

Part# 000000000

Note: B S 8P502-0064-F1 FOR SERVICE PARTS 1-800-233-3723

OEM Warranty Repair Part for Poulan

Not available

532406428

31

SELECTOR SPRING, FRONT

Part# 532406428

OEM Warranty Repair Part for Poulan

Not available

532087877

32

KNOB PM

Part# 532087877

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $3.34

532407871

33

AXLE ARM ASSY.

Part# 532407871

OEM Warranty Repair Part for Poulan

Not available

532401630

34

WASHER.CURVED.CYLINDRICAL

Part# 532401630

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $3.34

532401638

35

SHOULDER BOLT 5/16-18

Part# 532401638

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

532440356

36

WHEEL.7X1.5.DMD.3SPK.BLACK.

Part# 532440356

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $13.41

532409148

37

NUT.HEX.FLANGE.3/8-16.LOCKNUT

Part# 532409148

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $3.01

532150406

38

BOLT 3/8-16X1-1/8

Part# 532150406

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $4.46

581708364

39

KIT.HSG.20SD.PUSH.MS665.TRI

Part# 581708364

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $103.96

532851084

40

SCREW, HEX HD 3/8-24 X 1-3/8

Part# 532851084

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $3.01

532149741

41

SCREW.5/16-18X3/4

Part# 532149741

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

532404763

42

No Step Decal

Part# 532404763

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

873800500

43

NUT.71038.31-18.HEX.NYLOCK

Part# 873800500

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $3.01

532138348

55

BAFFLE

Part# 532138348 (Superseded to 532700839)

OEM Warranty Repair Part for Poulan

Not available

873800400

56

LOCKNUT.NYLOC.1/4-20

Part# 873800400

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.01

532128415

58

RIVET BLIND

Part# 532128415

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 1 business day

Your price: $3.34

532404764

DECAL, WARNING (NOT SHOWN)

Part# 532404764

OEM Warranty Repair Part for Poulan

Usually leaves our warehouse in 4 to 10 business days

Your price: $6.70
