961320079-02 - Poulan Walk-Behind Mower (2014-02) FRAME ENGINE Parts Diagram

Walk-Behind Mower

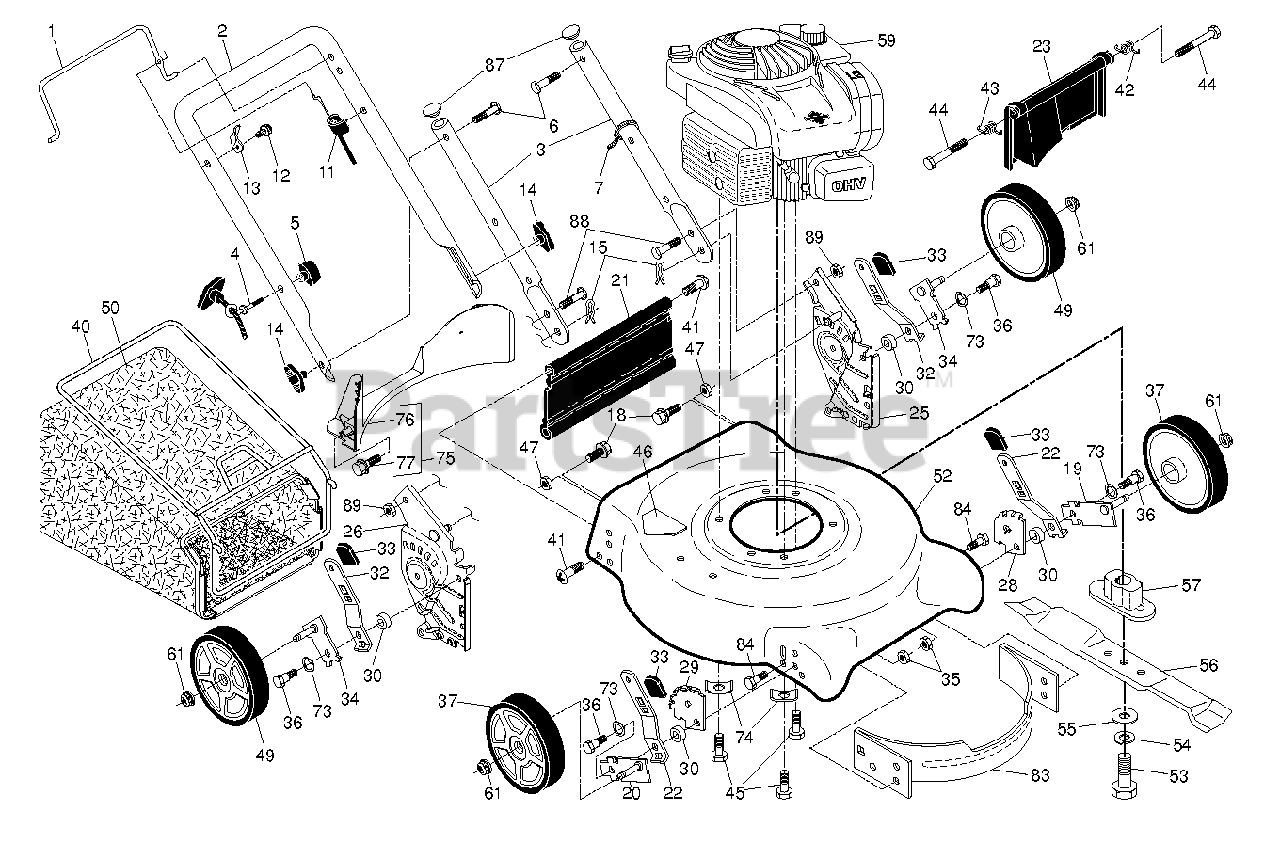

FRAME ENGINE Parts Diagram

  • Title
1

Poulan 532196025

BAIL.CONT.D.STRAIGHT.PUSH.BLK

$

$

Not available

2

Poulan 532448263

HANDLE.UPPER.ECONOMY.BLACK

$30.99

$

Usually ships in 3-10 days

0

3

Poulan 580638602

HANDLE.LOWER.DOME.BT.BLACK

$

$

Not available

4

Poulan 581902101

Rope Guide, Blk Zinc Chrom

$4.99

$

In Stock, only 4 left!

0

5

Poulan 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, Qty 15

0

6

Poulan 532191574

BOLT, HANDLE 5/16-18X1.75

$3.99

$

In Stock, Qty 20+

0

7

Poulan 532066426

TIE GUIDE
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 532440934

CABLE.MZR.RATO.22"LOW.

$17.99

$

In Stock, Qty 10

0

12

$7.49

$

In Stock, Qty 20+

0

13

Poulan 532430034

BRACKET.UPSTOP.RT

$6.49

$

In Stock, Qty 8

0

14

Poulan 532191938

(Superseded to 532189713)

$3.99

$

In Stock, Qty 20+

0

15

Poulan 532051793

HAIRPIN COTTER

$7.49

$

In Stock, only 1 left!

0

18

Poulan 817600406

SCREW 1/4X20

$6.49

$

In Stock, Qty 5

0

19

Poulan 532406689

AXLE ARM ASSY FRONT LH
(Superseded to 532401174)

Note: LH

$

$

Not available

20

Poulan 532406690

AXLE ARM ASSY FRONT RH
(Superseded to 532401175)

Note: RH

$7.49

$

Usually ships in 3-10 days

0

21

Poulan 532418655

KIT.SKIRT.21 DOMED.W/LIP
(Superseded to 532416860)

$13.99

$

In Stock, Qty 8

0

22

Poulan 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$4.99

$

In Stock, Qty 11

0

23

Poulan 532410603

REAR DOOR ASSY
(Superseded to 532401814)

$13.99

$

Usually ships in 3-10 days

0

25

Poulan 581714602

BRACKET.ASM.HAND.LW.21.RT.BLAC

Note: LH

$15.99

$

Usually ships in 3-10 days

0

26

Poulan 581714502

BRACKET.ASM.HAND.LW.21.LT.BLAC

Note: RH

$15.99

$

Usually ships in 3-10 days

0

28

Poulan 532414441

BRACKET.ADJ.5.RTAB.LG.HOLE.ABS
(Superseded to 532407499)

Note: FRONT LH

$

$

Not available

29

Poulan 532414440

BRACKET.ADJ.5.LTAB.LG.HOLE.ABS
(Superseded to 532407500)

Note: FRONT RH

$

$

Not available

30

Poulan 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, Qty 5

0

32

Poulan 532410888

SPRING.SELECTOR.21RD.HTTRT.BZP
(Superseded to 532401623)

$4.99

$

Usually ships in 3-10 days

0

33

$6.49

$

In Stock, only 3 left!

0

34

Poulan 532410890

ARM.ASM.AXLE.REAR.5/9.POS.BZP

Note: REAR

$7.49

$

In Stock, Qty 5

0

35

Poulan 532426589

NUT.FLANGE.HEX.5/16X18.BLACK

$6.49

$

In Stock, Qty 18

0

36

Poulan 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$3.99

$

In Stock, Qty 11

0

37

Poulan 532430501

WHEEL.7X1.75.5SPK.BRK.BLACK
(Superseded to 532436478)

$15.99

$

Usually ships in 3-10 days

0

40

Poulan 532411949

FRAME.BAG.21.REAR.DOMED.PUSH

$

$

Not available

41

Poulan 532194186

SCREW.1/4-20X21/4.HEX.

$6.49

$

Usually ships in 3-10 days

0

42

Poulan 532405421

SPRING.LH.22.REAR.DOOR.EZ.EMPT

Note: LH

$4.99

$

In Stock, only 2 left!

0

43

Poulan 532405423

SPRING.RH.22.REAR.DOOR.EZ.

Note: RH

$4.99

$

In Stock, only 2 left!

0

$

$

Not available

45

Poulan 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 10

0

46

Poulan 532404763

No Step Decal
(Superseded to 532182166)

$4.99

$

In Stock, only 3 left!

0

47

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

49

Poulan 532435280

WHEEL.8X1.75.5.SPK.BRK.BLK.1
(Superseded to 532400542)

$18.99

$

In Stock, Qty 6

0

50

Poulan 581002106

GBAG.24710612.BLK.WEAT
(Superseded to 581002101)

$93.99

$

In Stock, Qty 20+

0

52

Poulan 532446821

HOUSING.21RD.DOME.GRE

Note: . 46

$

$

Not available

53

Poulan 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

54

Poulan 532850263

(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

55

Poulan 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

56

Poulan 532406712

BLADE.21.PUSH/RWGD/FWGD

$15.99

$

In Stock, Qty 20+

0

57

Poulan 581547901

ADAPTOR.BLADE.7/8

$17.99

$

In Stock, Qty 20+

0

59

Poulan 000000000

Note: B S 9P702-0164-F1 FOR SERVICE PARTS 1-800-233-3723

$

$

Not available

61

Poulan 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

73

Poulan 532401630

WASHER.CURVED.CYLINDRICAL

$3.99

$

Usually ships in 3-10 days

0

74

Poulan 532125078

WASHER.ENGINE.BZP

$

$

Not available

76

Poulan 532410589

BAFFLE.REAR.PLASTIC.21.RD.ECON

$12.99

$

In Stock, only 3 left!

0

77

Poulan 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

83

Poulan 532428501

BAFFLE.FRONT.21.DOME.US

$17.99

$

In Stock, Qty 10

0

84

Poulan 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

87

Poulan 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

88

Poulan 872250505

(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

89

Poulan 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

Poulan 532404764

Warning Decal

Note: NOT SHOWN

$8.99

$

Usually ships in 3-10 days

0
