961361 (961460003-01) - Ariens 22" Self-Propelled Walk-Behind Mower, 4.8hp Kohler Mower Assembly Parts Diagram

22" Self-Propelled Walk-Behind Mower, 4.8hp Kohler

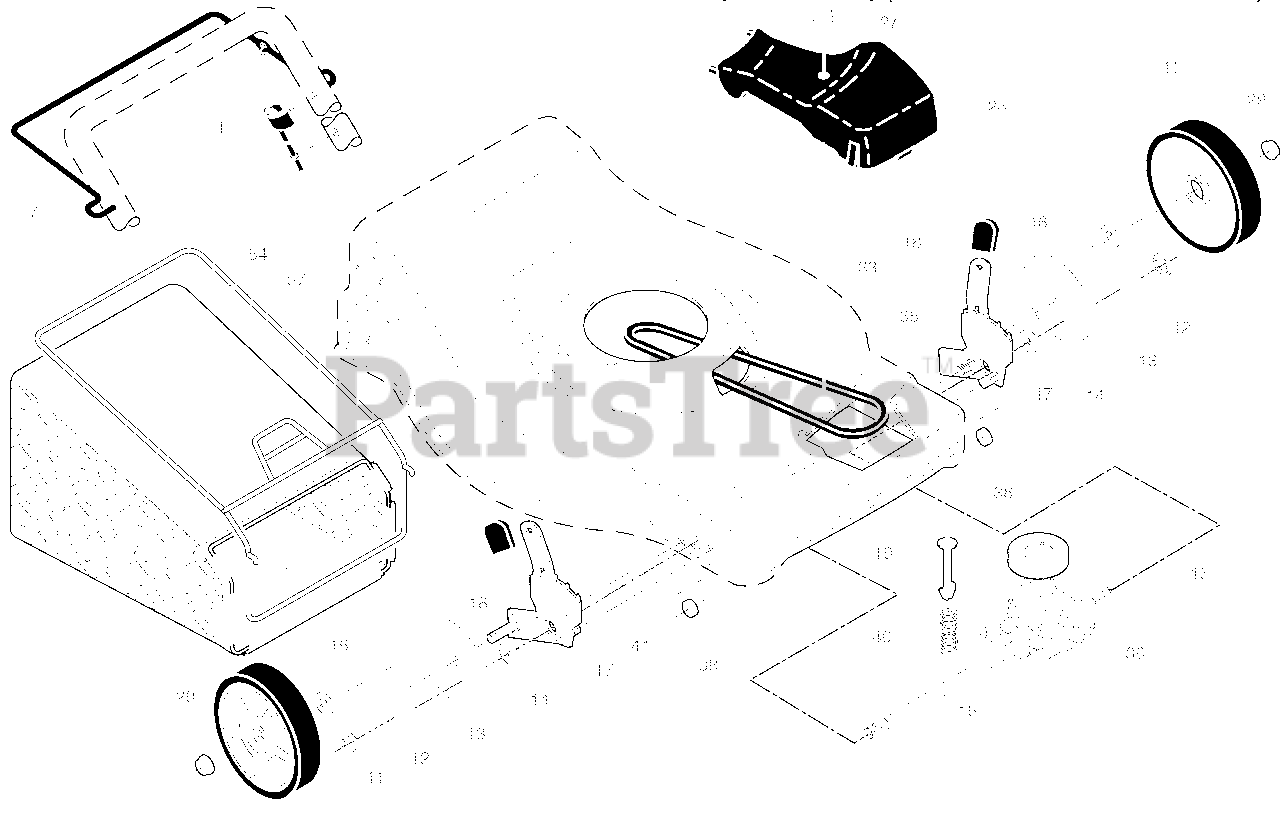

Mower Assembly Parts Diagram

  • Title

1

Ariens 21547462

CABLE, DRIVE CONTROL

Note: (Includes Cable)

$26.99

$

In Stock, Qty 10

0

7

Ariens 21547513

Control Bar, Drive

$

$

Not available

11

Ariens 21547455

WHEEL AND TIRE ASSEMBLY-FRONT

$34.99

$

In Stock, Qty 20+

0

12

Ariens 21547525

E-RING

$3.99

$

In Stock, Qty 20+

0

13

Ariens 21547484

Pinion

$10.99

$

In Stock, Qty 5

0

14

Ariens 21547482

Dust Cover
(Superseded to 21548456)

$6.99

$

Usually ships in 4-12 days

0

15

Ariens 21547485

Pawl, Drive

$6.49

$

In Stock, only 1 left!

0

16

Ariens 21547471

Washer, Flat 3/8

$6.99

$

Usually ships in 4-12 days

0

17

Ariens 21547636

BEARING
(Superseded to 21547457)

$

$

Not available

18

Ariens 21547504

Selector Knob

$

$

Not available

19

Ariens 21547475

Retainer, Spring

$7.49

$

In Stock, only 1 left!

0

27

Ariens 21547478

Pan Head Tapping Screw #10-24

$10.99

$

In Stock, only 2 left!

0

28

Ariens 21547460

DRIVE COVER

$

$

Not available

29

Ariens 21546896

Nut, Hex
(Superseded to 21546897)

$6.49

$

Usually ships in 4-12 days

0

33

Ariens 21547438

DRIVE BELT
(Superseded to 21547637)

$14.99

$

In Stock, Qty 8

0

35

Ariens 21547657

KIT,WHEEL ADJUSTER, RH (INCLUD
(Superseded to 21547488)

Note: (Includes Knob and Bearing)

$44.99

$

Usually ships in 4-12 days

0

36

Ariens 21547486

Gear Case Assembly, Complete

$103.99

$

In Stock, only 1 left!

0

38

Ariens 21546979

Lock Nut 1/4-20
(Superseded to 21546914)

$

$

Not available

40

Ariens 21547473

Spring

$6.49

$

In Stock, only 1 left!

0

41

Ariens 21547658

KIT,WHEEL ADJUSTER, RH (INCLUD
(Superseded to 21547465)

Note: (Includes Knob and Bearing)

$

$

Not available

54

Ariens 21547432

LM BAG

$

$

Not available

57

Ariens 21547437

BAG FRAME

$28.99

$

Usually ships in 4-12 days

0
