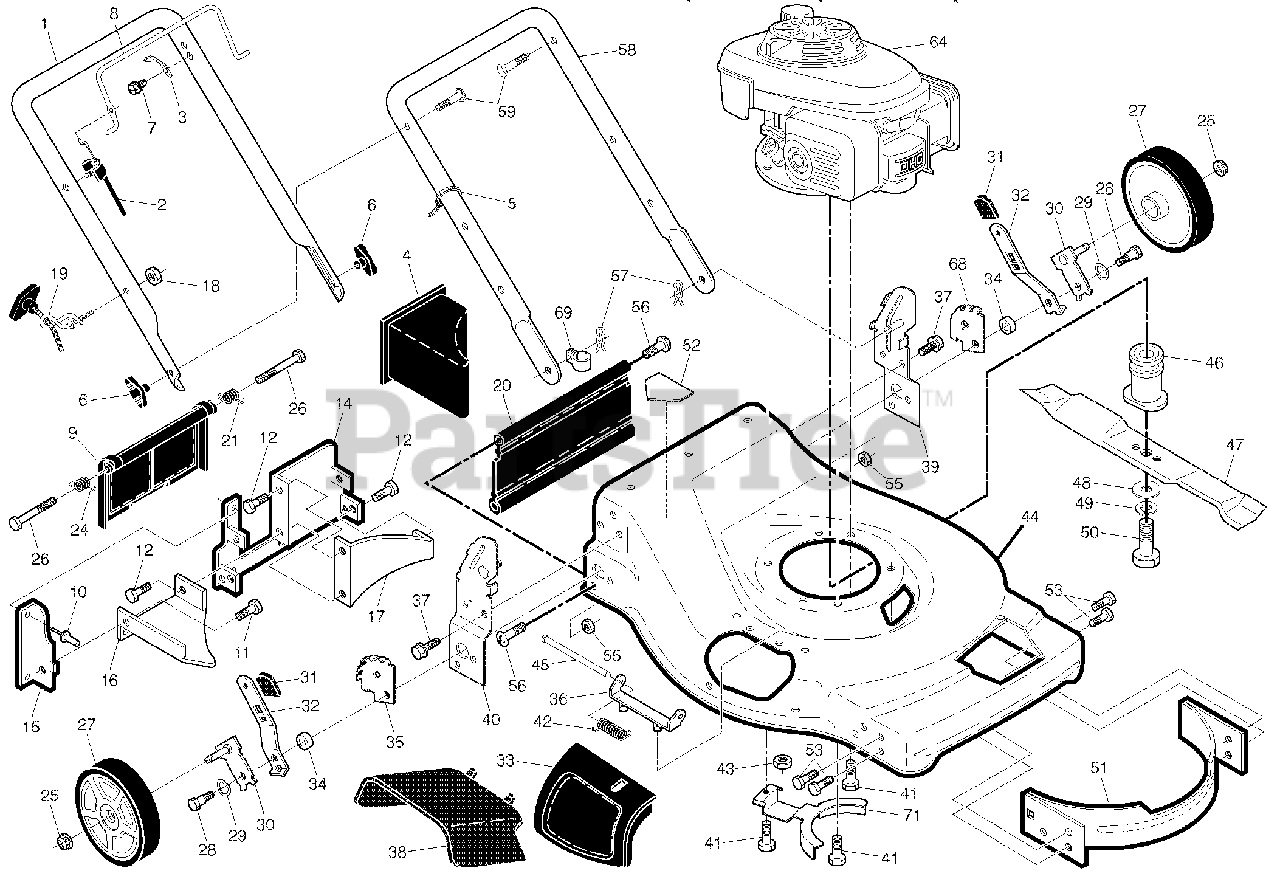

961366 (961460008-00) - Ariens 22" Self-Propelled Walk-Behind Mower, Honda Repair Parts Parts Diagram

22" Self-Propelled Walk-Behind Mower, Honda

Repair Parts Parts Diagram

  • Title

1

Ariens 21548464

UPPER HANDLE

$39.99

$

Usually ships in 4-12 days

0

2

Ariens 21547481

Engine Zone Control Cable

$43.99

$

In Stock, Qty 16

0

3

Ariens 21547524

Bracket, Upstop

$7.49

$

Usually ships in 4-12 days

0

4

Ariens 21547431

MULCH PLUG

$

$

Not available

5

Ariens 21546869

Wire Tie

$

$

Not available

6

Ariens 21547509

Handle Knob

$5.99

$

Usually ships in 4-12 days

0

7

Ariens 21546907

Hex Washer Head Screw

$

$

Not available

8

Ariens 21548041

CONTROL BAR

$

$

Not available

9

Ariens 21547519

Rear Door Assembly

$27.99

$

Usually ships in 4-12 days

0

10

Ariens 21547472

Pop Rivet

$

$

Not available

11

Ariens 21547474

Screw, Self-Tapping

$

$

Not available

12

Ariens 21547526

SCREW, SEMS, HEX HEAD 1/4-20 X

$

$

Not available

14

Ariens 21547514

Back Plate

$

$

Not available

15

Ariens 21547521

Side Baffle

$

$

Not available

16

Ariens 21547508

Discharge Baffle

$10.99

$

Usually ships in 4-12 days

0

17

Ariens 21547506

Rear Baffle

$

$

Not available

18

Ariens 21546872

Nut, Hex
(Superseded to 21546914)

$

$

Not available

19

Ariens 21546884

Rope Guide

$16.99

$

Usually ships in 4-12 days

0

20

Ariens 21547434

REAR SKIRT

$

$

Not available

21

Ariens 21546893

Spring, Rear Door, LH

$9.99

$

Usually ships in 4-12 days

0

24

Ariens 21546894

Spring, Rear Door, RH

$9.99

$

Usually ships in 4-12 days

0

25

Ariens 21546896

Nut, Hex
(Superseded to 21546897)

$7.49

$

Usually ships in 4-12 days

0

26

Ariens 21546882

Bolt, Rear Door

$

$

Not available

27

Ariens 21547430

REAR WHEEL

$35.99

$

Usually ships in 4-12 days

0

28

Ariens 21547477

Bolt, Shoulder 3/8-16 x 1

$

$

Not available

29

Ariens 21546889

Washer, Curved, Cylindrical

$

$

Not available

30

Ariens 21547440

AXLE ARM ASSEMBLY

$13.99

$

Usually ships in 4-12 days

0

31

Ariens 21547504

Selector Knob

$

$

Not available

32

Ariens 21546991

Selector Spring, Front

$6.99

$

Usually ships in 4-12 days

0

33

Ariens 21547510

Mulcher Door

$15.99

$

In Stock, only 1 left!

0

34

Ariens 21546888

Spacer

$7.49

$

In Stock, Qty 20+

0

35

Ariens 21547441

WHEEL ADJUSTING BRKT RH

$

$

Not available

36

Ariens 21547480

Hinge Bracket Assembly

$

$

Not available

37

Ariens 21547490

Screw, Sems, Thread Cutting 5/

$13.99

$

In Stock, Qty 7

0

38

Ariens 21547520

Discharge Def ector

$

$

Not available

39

Ariens 21547442

HANDLE BRACKET ASSEMBLY LH

$

$

Not available

40

Ariens 21547443

HANDLE BRACKET ASSEMBLY RH

$

$

Not available

41

Ariens 21546874

Screw, Hex Head, Threaded, Rol

$7.49

$

Usually ships in 4-12 days

0

42

Ariens 21547483

Spring, Torsion

$7.49

$

Usually ships in 4-12 days

0

43

Ariens 21546914

Locknut, Hex 1/4-20

$

$

Not available

44

Ariens 21547487

Kit, Housing

Note: (Includes Key Numbers 14, 15 and 51)

$

$

Not available

45

Ariens 21547479

Rod, Hinge

$6.99

$

Usually ships in 4-12 days

0

46

Ariens 21547436

PULLEY, BLADE ADAPTER

$

$

Not available

47

Ariens 21547435

BLADE

$33.99

$

In Stock, Qty 20+

0

48

Ariens 21546910

Hardened Washer

$

$

Not available

49

Ariens 21546909

Helical Lockwasher
(Superseded to 06300116)

$1.49

$

In Stock, Qty 11

0

50

Ariens 21546911

Screw, Hex Head, Grade 8 3/8-2

$8.49

$

In Stock, Qty 11

0

51

Ariens 21547476

Kit, Front Baffle

Note: (Includes Key Number 53)

$

$

Not available

52

Ariens 21546891

Danger Decal

$

$

Not available

53

Ariens 21546204

SCREW.HEX.WASHEAD.1/4-20 X 3/8

$5.99

$

In Stock, only 2 left!

0

55

Ariens 21546794

NUT.CENTERLOCK.3/8-16 UNC.

$3.99

$

In Stock, Qty 8

0

56

Ariens 21546871

Hinge Screw

$

$

Not available

57

Ariens 21546868

Hairpin Cotter

$

$

Not available

58

Ariens 21548033

LOWER HANDLE

$30.99

$

Usually ships in 4-12 days

0

59

Ariens 21546883

Handle Bolt

$

$

Not available

64

Engine, Honda, Model Number GCV160-LAOS3A

$

$

Not available

For engine service and replacement parts, call Kohler at 1-800-544-2444)

Note: For engine service and replacement parts, call Kohler at 1-800-544-2444)

$

$

Not available

68

Ariens 21547444

WHEEL ADJUSTING BRKT LH

$

$

Not available

69

Ariens 21546887

Clip, Cable

$

$

Not available

71

Ariens 21547463

BELT KEEPER

$

$

Not available

- -

Ariens 21546892

Warning Decal (not shown)

Note: (Not Shown)

$

$

Not available

- -

Ariens 21548020

OPERATOR'S MANUAL (ENG/SPA)

$

$

Not available

- -

Ariens 21548040

OWNER'S MANUAL (FRENCH)

$

$

Not available
