961420117-01 - Poulan Walk-Behind Mower (2014-02) DRIVE Parts Diagram

Walk-Behind Mower

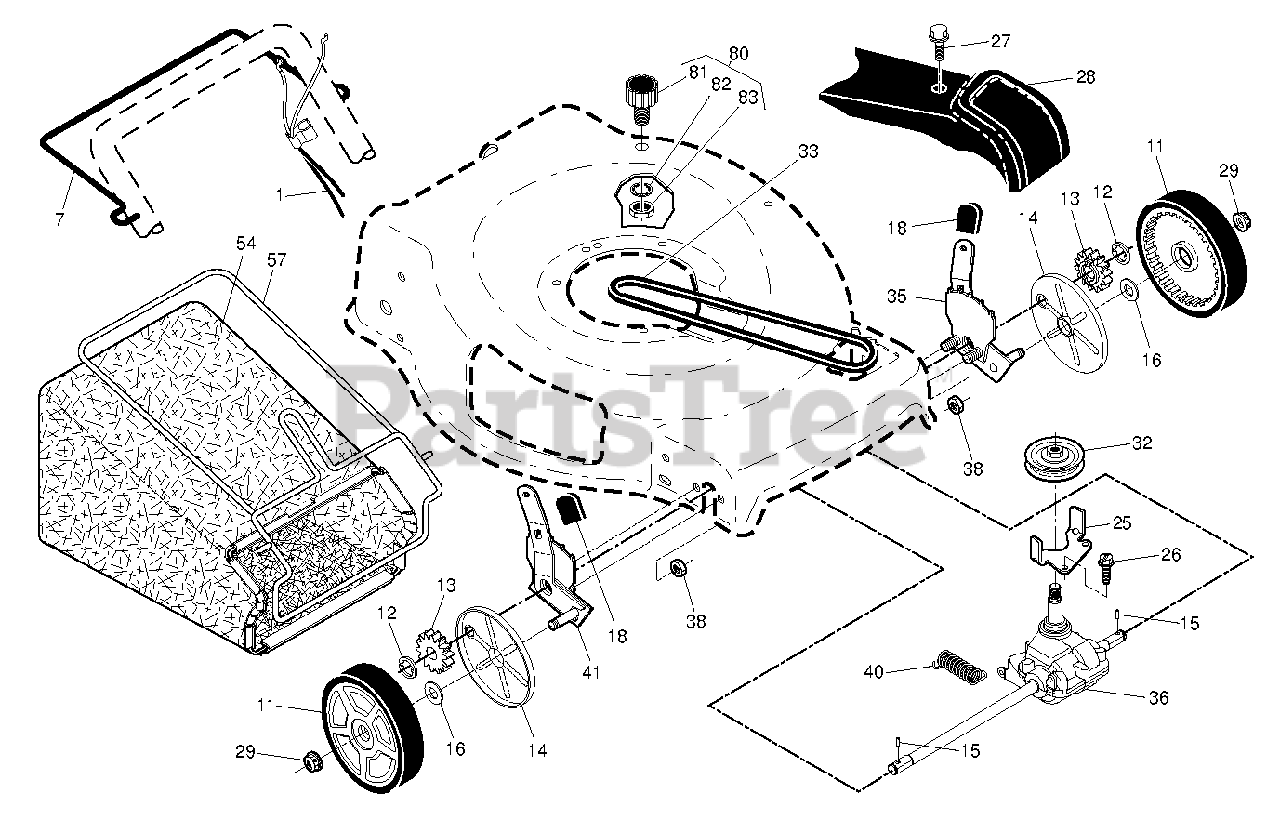

DRIVE Parts Diagram

  • Title

1

Poulan 532420562

CABLE.DRIV.DUAL.LEVER.BAIL.FGD

$34.99

$

In Stock, only 1 left!

0

7

Poulan 532435281

BAIL.DRIVE.S/S.ROUND.MARI.21

$12.99

$

Usually ships in 3-10 days

0

11

Poulan 581009201

WHEEL.8X1.75.5SPK.RAD3.BLACK
(Superseded to 532430452)

$34.99

$

In Stock, Qty 20+

0

12

Poulan 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

13

Poulan 532403849

PINION.14.TEETH.FGD

$6.49

$

In Stock, Qty 20+

0

14

Poulan 581840401

COVER.DUST.WHEEL.INNER.WALK

$4.99

$

In Stock, Qty 20+

0

15

Poulan 532404845

PAWL, DRIVE

$4.99

$

In Stock, Qty 20+

0

16

Poulan 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

18

Poulan 532701037

SELECTOR KNOB

$4.99

$

In Stock, Qty 20+

0

25

Poulan 532431711

BRACKET.BELT.GUIDE.22+FGD.BZP
(Superseded to 532430458)

$

$

Not available

26

Poulan 532163409

SCREW

$7.49

$

In Stock, Qty 12

0

27

Poulan 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

In Stock, only 4 left!

0

28

Poulan 532421086

COVER.DRIVE.22+.MB.GEN.FGD
(Superseded to 532432674)

$15.99

$

Usually ships in 3-10 days

0

29

Poulan 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Poulan 532443262

PULLEY.DRIVE.EZ/VARI.SCREWON

$13.99

$

In Stock, only 4 left!

0

33

Poulan 532196853

BELT.DRIVE.FGD.

$15.99

$

In Stock, Qty 20+

0

35

Poulan 581497904

ADJUSTER.ASM.9.22+/RF/LR.21/RF
(Superseded to 581497907)

Note: INCLUDES BEARING KEY 17

$17.99

$

In Stock, Qty 20+

0

36

Poulan 532424741

TRANSMISSION.22+.FWGD.SS
(Superseded to 589600601)

$120.99

$

In Stock, Qty 6

0

38

Poulan 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 6

0

40

Poulan 532406558

SPRING

$8.99

$

In Stock, Qty 20+

0

41

Poulan 581497903

ADJUSTER.ASM.9.22+/RF/LR.21/LF
(Superseded to 581497908)

Note: INCLUDES BEARING KEY 17

$17.99

$

In Stock, Qty 20+

0

54

Poulan 580947309

GBAG.A1640416S.BLK.PPRO.MRG.
(Superseded to 580947302)

$

$

Not available

57

Poulan 585054702

Grass Bag Frame, 22+ Black

$18.99

$

Usually ships in 3-10 days

0

80

Poulan 532421114

KIT.WASH-OUT.PORT

$24.99

$

In Stock, Qty 6

0

81

Poulan 532419735

FITTING, HOSE, WATER WASHOUT
(Superseded to 532421114)

$24.99

$

In Stock, Qty 6

0

82

Poulan 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 3 left!

0

83

Poulan 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0
