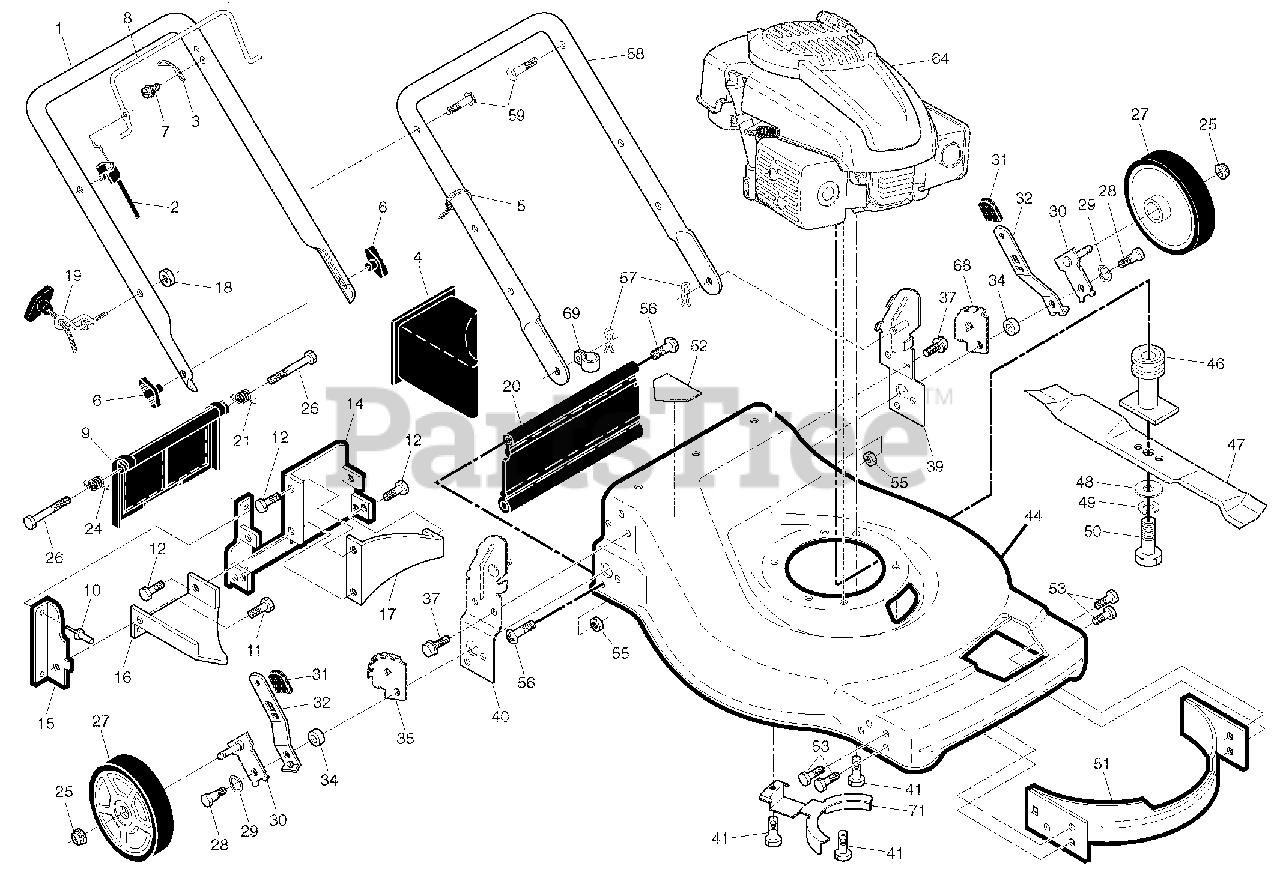

961465 (961460005-00) - Ariens 22" Self-Propelled Walk-Behind Mower, 4.8hp Kohler Repair Parts Parts Diagram

22" Self-Propelled Walk-Behind Mower, 4.8hp Kohler

Repair Parts Parts Diagram

  • Title

1

Ariens 21547522

Upper Handle

$

$

Not available

2

Ariens 21547445

ENGINE CONTROL ZONE CABLE

$23.99

$

In Stock, Qty 6

0

3

Ariens 21547524

Bracket, Upstop

$6.99

$

Usually ships in 4-12 days

0

4

Ariens 21547431

MULCH PLUG

$27.99

$

Usually ships in 4-12 days

0

5

Ariens 21546869

Wire Tie

$

$

Not available

6

Ariens 21547509

Handle Knob

$5.49

$

Usually ships in 4-12 days

0

7

Ariens 21546907

Hex Washer Head Screw

$6.99

$

Usually ships in 4-12 days

0

8

Ariens 21547446

CONTROL BAR

$

$

Not available

9

Ariens 21547519

Rear Door Assembly

$25.99

$

Usually ships in 4-12 days

0

10

Ariens 21547472

Pop Rivet

$

$

Not available

11

Ariens 21547474

Screw, Self-Tapping

$

$

Not available

12

Ariens 21547526

SCREW, SEMS, HEX HEAD 1/4-20 X

$

$

Not available

14

Ariens 21547514

Back Plate

$

$

Not available

15

Ariens 21547521

Side Baffle

$

$

Not available

16

Ariens 21547508

Discharge Baffle

$10.99

$

Usually ships in 4-12 days

0

17

Ariens 21547506

Rear Baffle

$8.99

$

Usually ships in 4-12 days

0

18

Ariens 21546872

Nut, Hex
(Superseded to 21546914)

$

$

Not available

19

Ariens 21546884

Rope Guide

$15.99

$

Usually ships in 4-12 days

0

20

Ariens 21547434

REAR SKIRT

$12.99

$

In Stock, Qty 9

0

21

Ariens 21546893

Spring, Rear Door, LH

$8.99

$

Usually ships in 4-12 days

0

24

Ariens 21546894

Spring, Rear Door, RH

$8.99

$

Usually ships in 4-12 days

0

25

Ariens 21546896

Nut, Hex
(Superseded to 21546897)

$6.49

$

Usually ships in 4-12 days

0

26

Ariens 21546882

Bolt, Rear Door

$6.49

$

Usually ships in 4-12 days

0

27

Ariens 21547430

REAR WHEEL

$24.99

$

Usually ships in 4-12 days

0

28

Ariens 21547477

Bolt, Shoulder 3/8-16 x 1

$

$

Not available

29

Ariens 21546889

Washer, Curved, Cylindrical

$3.99

$

Usually ships in 4-12 days

0

30

Ariens 21547440

AXLE ARM ASSEMBLY

$12.99

$

Usually ships in 4-12 days

0

31

Ariens 21547504

Selector Knob

$

$

Not available

32

Ariens 21546991

Selector Spring, Front

$6.49

$

Usually ships in 4-12 days

0

34

Ariens 21546888

Spacer

$6.49

$

In Stock, only 2 left!

0

35

Ariens 21547441

WHEEL ADJUSTING BRKT RH

$

$

Not available

37

Ariens 21547490

Screw, Sems, Thread Cutting 5/

$12.99

$

In Stock, only 1 left!

0

39

Ariens 21547442

HANDLE BRACKET ASSEMBLY LH

$

$

Not available

40

Ariens 21547443

HANDLE BRACKET ASSEMBLY RH

$

$

Not available

41

Ariens 21546874

Screw, Hex Head, Threaded, Rol

$6.99

$

Usually ships in 4-12 days

0

44

Ariens 21547470

DECK, WALK BEHIND

Note: (Includes Key Numbers 14, 15 and 51)

$219.99

$

Usually ships in 4-12 days

0

46

Ariens 21547436

PULLEY, BLADE ADAPTER

$25.99

$

Usually ships in 4-12 days

0

47

Ariens 21547435

BLADE

$14.99

$

In Stock, Qty 20+

0

48

Ariens 21546910

Hardened Washer

$

$

Not available

49

Ariens 21546909

Helical Lockwasher
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

50

Ariens 21546911

Screw, Hex Head, Grade 8 3/8-2

$7.99

$

In Stock, only 2 left!

0

51

Ariens 21547476

Kit, Front Baffle

Note: (Includes Key Number 53)

$

$

Not available

52

Ariens 21546891

Danger Decal

$

$

Not available

53

Ariens 21546204

SCREW.HEX.WASHEAD.1/4-20 X 3/8

$6.49

$

In Stock, Qty 5

0

55

Ariens 21546794

NUT.CENTERLOCK.3/8-16 UNC.

$3.49

$

In Stock, Qty 9

0

56

Ariens 21546871

Hinge Screw

$6.49

$

Usually ships in 4-12 days

0

57

Ariens 21546868

Hairpin Cotter

$6.49

$

Usually ships in 4-12 days

0

58

Ariens 21547507

Lower Handle

$25.99

$

Usually ships in 4-12 days

0

59

Ariens 21546883

Handle Bolt

$3.99

$

In Stock, Qty 20+

0

64

Engine, Kohler, Model Number XT173-0224 (See Breakdown)

Note: (See Breakdown)

$

$

Not available

68

Ariens 21547444

WHEEL ADJUSTING BRKT LH

$

$

Not available

69

Ariens 21546887

Clip, Cable

$

$

Not available

71

Ariens 21547463

BELT KEEPER

$

$

Not available

- -

Ariens 21546892

Warning Decal (not shown)

Note: (not shown)

$

$

Not available

- -

Ariens 21547290

OWNER'S MANUAL, ENG/SPA

$

$

Not available

- -

Ariens 21547493

Owner's Manual, French

$

$

Not available
