961465 (961460005-01) - Ariens 22" Self-Propelled Walk-Behind Mower, 4.8hp Kohler Mower Assembly Parts Diagram

22" Self-Propelled Walk-Behind Mower, 4.8hp Kohler

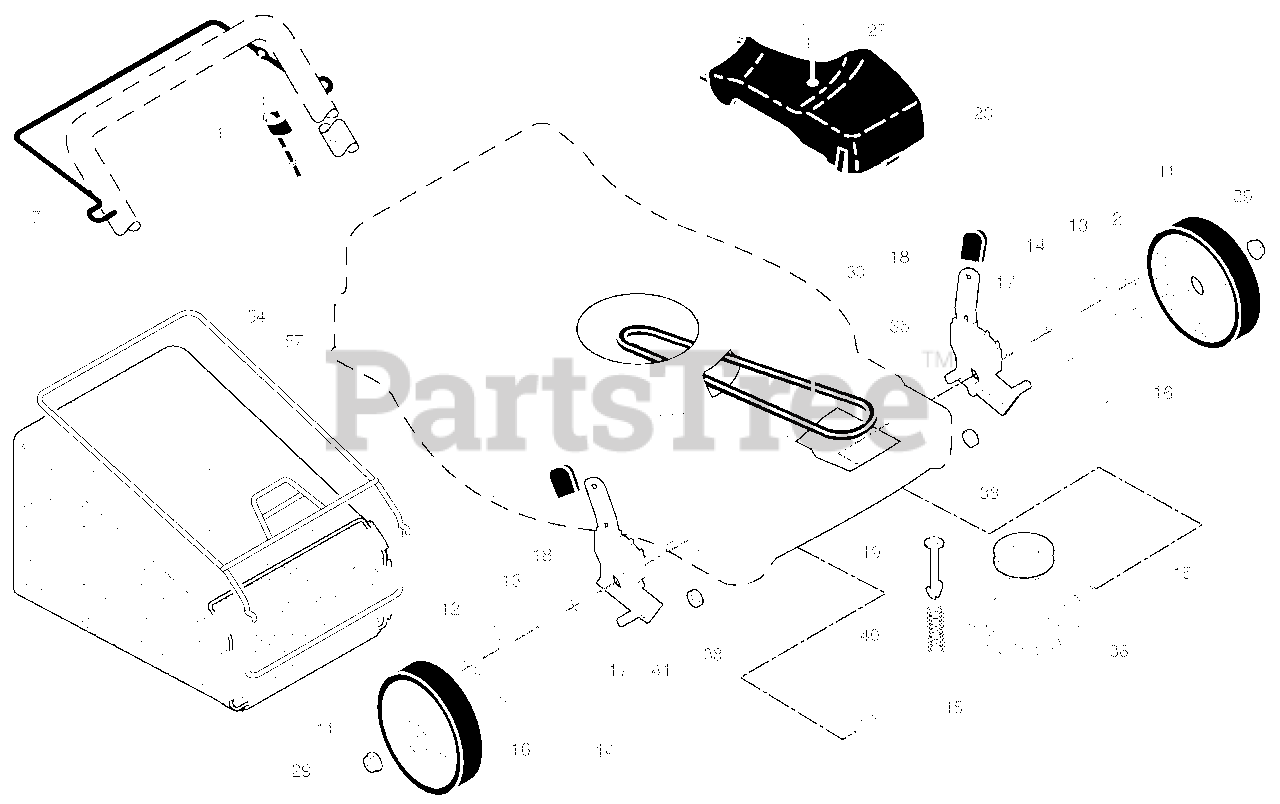

Mower Assembly Parts Diagram

  • Title

1

Ariens 21547462

CABLE, DRIVE CONTROL

$31.99

$

In Stock, Qty 9

0

7

Ariens 21547513

Control Bar, Drive

$

$

Not available

11

Ariens 21547455

WHEEL AND TIRE ASSEMBLY-FRONT

$26.99

$

In Stock, Qty 9

0

12

Ariens 21547525

E-RING

$3.49

$

In Stock, Qty 12

0

13

Ariens 21547484

Pinion

$13.99

$

In Stock, only 2 left!

0

14

Ariens 21547482

Dust Cover
(Superseded to 21548456)

$

$

Not available

15

Ariens 21547485

Pawl, Drive

$6.99

$

In Stock, only 1 left!

0

16

Ariens 21547471

Washer, Flat 3/8

$

$

Not available

17

Ariens 21547636

BEARING
(Superseded to 21547457)

$

$

Not available

18

Ariens 21547504

Selector Knob

$

$

Not available

19

Ariens 21547475

Retainer, Spring

$4.99

$

In Stock, only 1 left!

0

27

Ariens 21547478

Pan Head Tapping Screw #10-24

$10.99

$

In Stock, only 2 left!

0

28

Ariens 21547460

DRIVE COVER

$

$

Not available

29

Ariens 21546896

Nut, Hex
(Superseded to 21546897)

$7.49

$

Usually ships in 4-12 days

0

33

Ariens 21547438

DRIVE BELT
(Superseded to 21547637)

$20.99

$

In Stock, Qty 9

0

35

Ariens 21547657

KIT,WHEEL ADJUSTER, RH (INCLUD
(Superseded to 21547488)

Note: (Includes Knob and Bearing)

$39.99

$

Usually ships in 4-12 days

0

36

Ariens 21547486

Gear Case Assembly, Complete

$107.99

$

In Stock, only 1 left!

0

38

Ariens 21546914

Locknut, Hex 1/4-20

$

$

Not available

40

Ariens 21547473

Spring

$5.99

$

In Stock, only 1 left!

0

41

Ariens 21547658

KIT,WHEEL ADJUSTER, RH (INCLUD
(Superseded to 21547465)

Note: (Includes Knob and Bearing)

$

$

Not available

54

Ariens 21547432

LM BAG

$

$

Not available

57

Ariens 21547437

BAG FRAME

$

$

Not available
