961468 (961320086-02) - Ariens 21" Push Walk-Behind Mower, Briggs & Stratton

21" Push Walk-Behind Mower, Briggs & Stratton

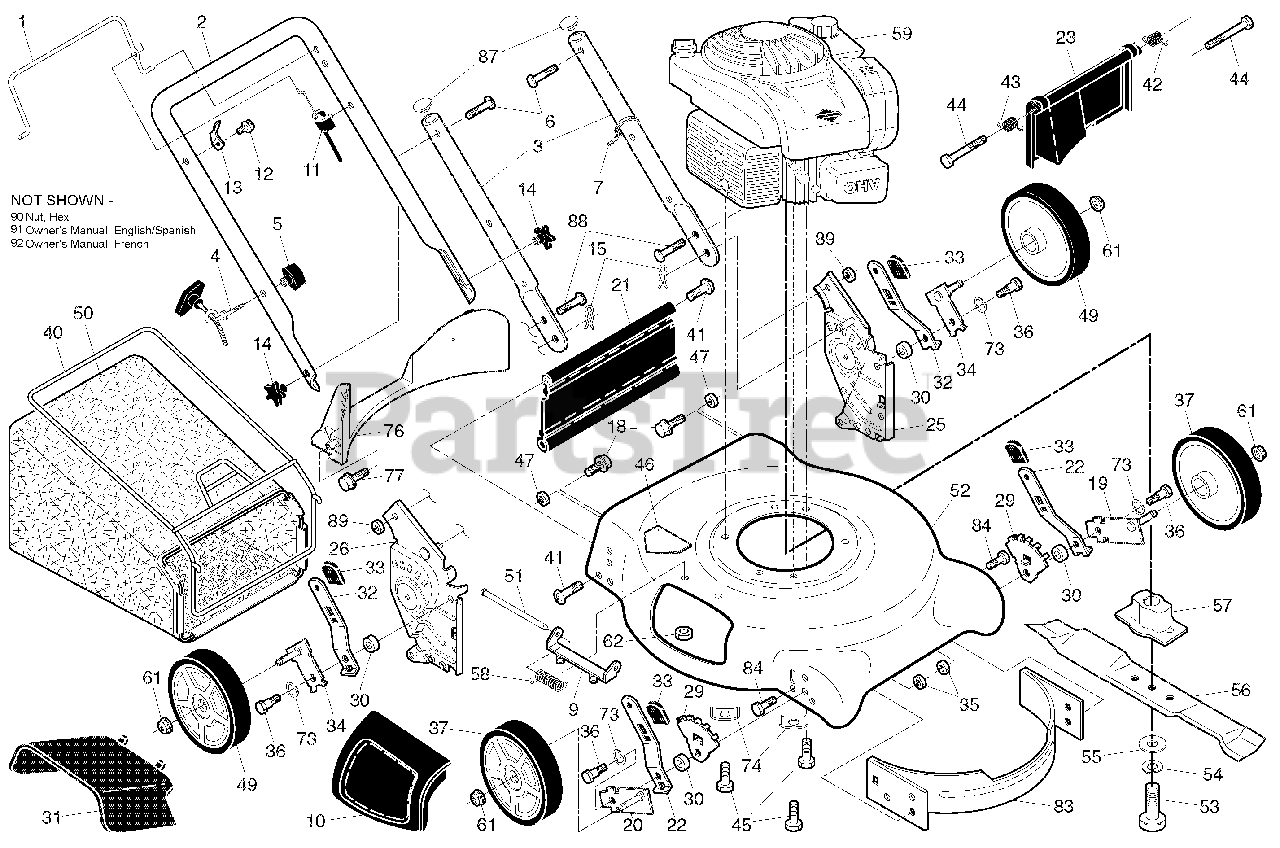

961468 (961320086-02) - Ariens 21" Push Walk-Behind Mower, Briggs & Stratton > Parts Diagrams (1) > Repair Parts

  • Title
21548461

1

CONTROL BAR

Part# 21548461

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.66

21548447

2

UPPER HANDLE

Part# 21548447

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

21548446

3

BAR, LOWER HANDLE

Part# 21548446

OEM Warranty Repair Part for Ariens

Not available

21548820

4

ROPE GUIDE

Part# 21548820

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.63

21546872

5

Nut, Hex

Part# 21546872 (Superseded to 21546914)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

21546883

6

Handle Bolt

Part# 21546883

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.23

21546869

7

Wire Tie

Part# 21546869

OEM Warranty Repair Part for Ariens

Not available

21546876

9

Hinge Bracket

Part# 21546876

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.77

21546877

10

Mulcher Door

Part# 21546877

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $7.82

21548419

11

ENGINE ZONE CONTROL CABLE

Part# 21548419

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

21548023

12

SCREW, HEX WASHER HEAD

Part# 21548023

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21547461

13

UP-STOP BRACKET

Part# 21547461

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

21546880

14

Handle Knob

Part# 21546880

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21546868

15

Hairpin Cotter

Part# 21546868

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21546204

18

SCREW.HEX.WASHEAD.1/4-20 X 3/8

Part# 21546204

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21546987

19

Axle Arm Assembly, Front, LH

Part# 21546987

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $5.58

21546988

20

Axle Arm Assembly, Front, RH

Part# 21546988

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $5.58

21546901

21

Kit, Rear Skirt

Part# 21546901

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.17

21546991

22

Selector Spring, Front

Part# 21546991

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21546993

23

Rear Door Assembly

Part# 21546993

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.36

21548453

25

HANDLE BRACKET ASSEMBLY, LH

Part# 21548453

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.60

21548454

26

HANDLE BRACKET ASSEMBLY, RH

Part# 21548454

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.60

21548032

29

WHEEL ADJUSTING BRACKET, FRONT

Part# 21548032

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

21546888

30

Spacer

Part# 21546888

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

21546878

31

Discharge Deflector

Part# 21546878

OEM Warranty Repair Part for Ariens

Not available

21548031

32

SELECTOR SPRING, REAR

Part# 21548031

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

21547504

33

Selector Knob

Part# 21547504

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

21548030

34

AXLE ARM ASSEMBLY, REAR

Part# 21548030

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

21547489

35

Locknut, Hex 5/16-18

Part# 21547489 (Superseded to 21546879)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21546890

36

Shoulder Bolt

Part# 21546890

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

21548028

37

WHEEL & TIRE ASSEMBLY

Part# 21548028

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.13

21546899

40

Frame, Grassbag

Part# 21546899

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.53

21548416

41

HINGE SCREW

Part# 21548416

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

21546893

42

Spring, Rear Door, LH

Part# 21546893

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

21546894

43

Spring, Rear Door, RH

Part# 21546894

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

21546882

44

Bolt, Rear Door

Part# 21546882

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21546874

45

Screw, Hex Head, Threaded, Rol

Part# 21546874

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21546891

46

Danger Decal

Part# 21546891

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

21546793

47

NUT.CENTER LOCK.5/16-18 UNC

Part# 21546793 (Superseded to 06500522)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

21548028

49

WHEEL & TIRE ASSEMBLY

Part# 21548028

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.13

21546904

50

Grassbag

Part# 21546904

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $90.66

21546873

51

Hinge Rod

Part# 21546873

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.77

21548337

52

KIT, LAWN MOWER HOUSING

Part# 21548337

Note: (Includes Key #46)

OEM Warranty Repair Part for Ariens

Not available

21546911

53

Screw, Hex Head, Grade 8 3/8-2

Part# 21546911

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

21546909

54

Helical Lockwasher

Part# 21546909

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $1.67

21546910

55

Hardened Washer

Part# 21546910

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

21546895

56

21" Blade

Part# 21546895

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

21548026

57

BLADE ADAPTER

Part# 21548026

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.89

21546875

58

Hinge Spring

Part# 21546875

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.58

59

Engine, B&S, Model No. 9P702-0163-F1 (For engine service and replacement parts,

Part#

Not available

59

call B&S at 1-800-233-3723)

Part#

Note: call B&S at 1-800-233-3723)

Not available

21546896

61

Nut, Hex

Part# 21546896

OEM Warranty Repair Part for Ariens

Not available

21546914

62

Locknut, Hex 1/4-20

Part# 21546914

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

21546889

73

Washer, Curved, Cylindrical

Part# 21546889

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21546998

74

Washer, Special, Engine

Part# 21546998

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21546898

76

Baffle, Rear

Part# 21546898

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

21546912

77

Screw, Rear Baffle

Part# 21546912

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

21548024

83

BAFFLE, FRONT

Part# 21548024

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.83

21546179

84

BOLT.5/16-18HEX.WHS.HD.LCKSERR

Part# 21546179

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.58

21548442

87

PLUG, HANDLE BAR

Part# 21548442

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

21548445

88

BOLT, CARRIAGE 5/16-18 X 5/8

Part# 21548445 (Superseded to 21546770)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.01

21546796

89

Nut, Hex, Flangelock

Part# 21546796 (Superseded to 06500020)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

21546892

90

Warning Decal (not shown)

Part# 21546892

Note: (not shown)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

21548852

91

OWNER'S MANUAL,ENGLISH/SPANISH

Part# 21548852

Note: (not shown)

OEM Warranty Repair Part for Ariens

Not available

21548853

92

OWNER'S MANUAL, FRENCH

Part# 21548853

Note: (not shown)

OEM Warranty Repair Part for Ariens

Not available
