961480022-00 - Jonsered Walk-Behind Mower (2011-01) DRIVE Parts Diagram

Walk-Behind Mower

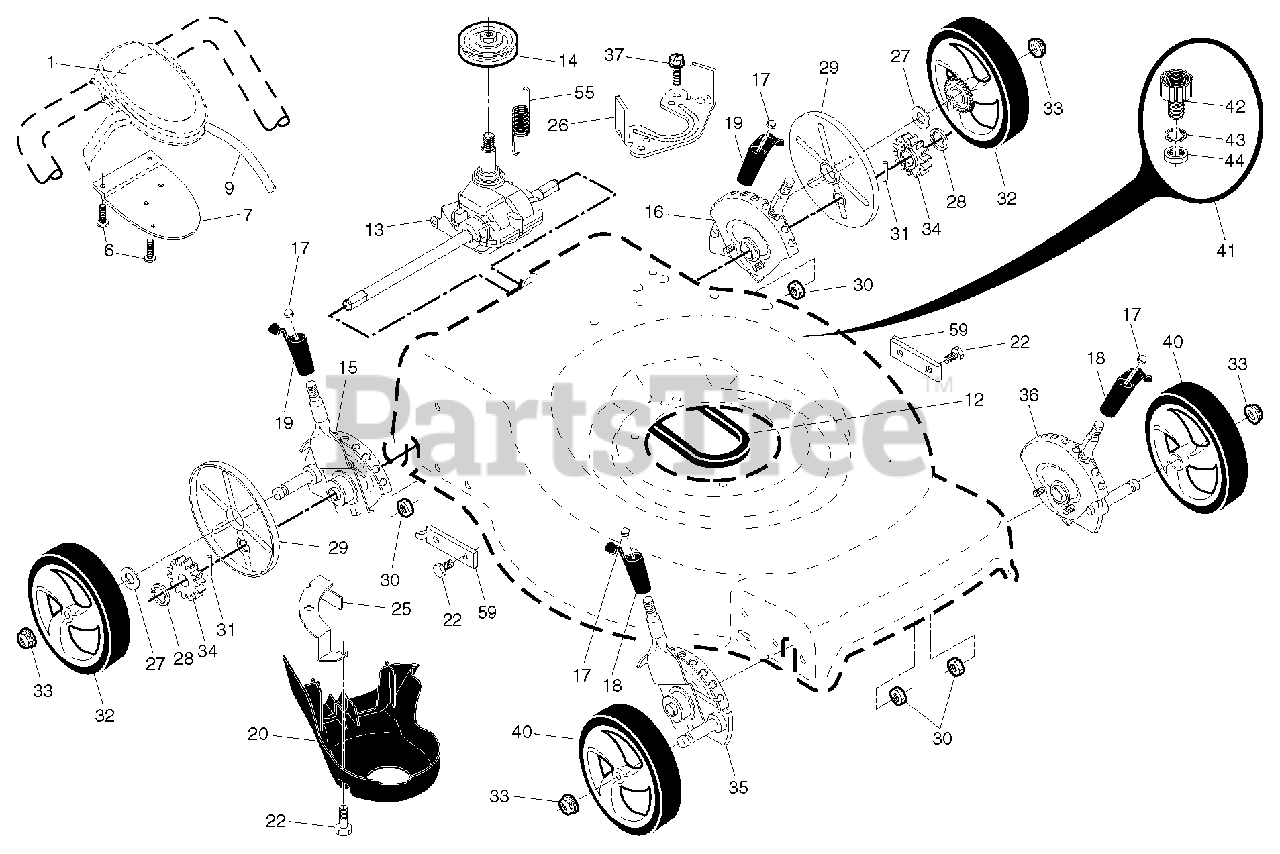

DRIVE Parts Diagram

  • Title

1

Jonsered 532434776

No Description Available
(Superseded to 598688301)

Note: Includes Cable

$45.99

$

Usually ships in 3-10 days

0

6

Jonsered 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$3.99

$

In Stock, only 3 left!

0

7

Jonsered 532400723

BRACKET.DRIVE.CONTROL.MOUNT

$

$

Not available

9

Jonsered 532433745

No Description Available
(Superseded to 587326606)

$41.99

$

In Stock, only 1 left!

0

12

Jonsered 532421527

BELT.DRIVE.RGD.PLUS

$28.99

$

In Stock, Qty 8

0

13

Jonsered 532434564

TRANSMISSION.22+.RGD.AW2/EZ2
(Superseded to 581680801)

$179.99

$

In Stock, Qty 9

0

14

Jonsered 532194128

PULLEY

$17.99

$

In Stock, Qty 6

0

15

Jonsered 532431118

No Description Available

$

$

Not available

16

Jonsered 532431119

No Description Available

$

$

Not available

17

Jonsered 532413808

No Description Available
(Superseded to 583343001)

$3.99

$

In Stock, Qty 20+

0

18

Jonsered 532431895

No Description Available
(Superseded to 532426188)

$

$

Not available

19

Jonsered 532431893

No Description Available

$

$

Not available

20

Jonsered 532427023

COVER.BELT.22.RGD
(Superseded to 580806901)

$29.99

$

In Stock, Qty 10

0

22

Jonsered 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 8

0

25

Jonsered 532426065

BRACKET.DRIVE.COVER.RGD.BZP

$

$

Not available

26

Jonsered 532426066

BRACKET.TRANS.BELT.KEEPER.BZP
(Superseded to 589318302)

$

$

Not available

27

Jonsered 532067725

WASHER FLUT

$6.99

$

In Stock, only 4 left!

0

28

Jonsered 812000058

E-RING 7/16 RE

$3.49

$

In Stock, Qty 20+

0

29

Jonsered 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$8.49

$

In Stock, Qty 20+

0

30

Jonsered 532191730

NUT.HEX.FLANGE.1/4

$3.99

$

In Stock, only 2 left!

0

31

Jonsered 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 20+

0

32

Jonsered 532413570

No Description Available

$

$

Not available

33

Jonsered 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

34

Jonsered 532404835

PINIION.14.TOOTH.RGD

$7.49

$

In Stock, Qty 20+

0

35

Jonsered 532431116

No Description Available

$

$

Not available

36

Jonsered 532431117

No Description Available

$

$

Not available

37

Jonsered 532163409

SCREW

$3.99

$

In Stock, Qty 9

0

40

Jonsered 532441466

WHEEL.8X1.75.MAG.CLOSE.BLACK

$

$

Not available

41

Jonsered 532421114

KIT.WASH-OUT.PORT

$21.99

$

In Stock, only 1 left!

0

42

Jonsered 532419735

FITTING, HOSE, WATER WASHOUT
(Superseded to 532421114)

$21.99

$

In Stock, only 1 left!

0

43

Jonsered 532415585

WASHER.LOCK.INTERNAL.TOOTH

$3.49

$

Usually ships in 3-10 days

0

44

Jonsered 532415586

LOCKNUT.HEX.WITH.O-RING

$

$

Not available

55

Jonsered 532406558

SPRING

$9.99

$

In Stock, Qty 20+

0

59

Jonsered 532442113

BRACKET.SUPPORT.22+RWGD.BZP

$

$

Not available
