965899501 - Husqvarna Tow-Behind Sweeper (2009-09) PRODUCT COMPLETE Parts Diagram

Tow-Behind Sweeper

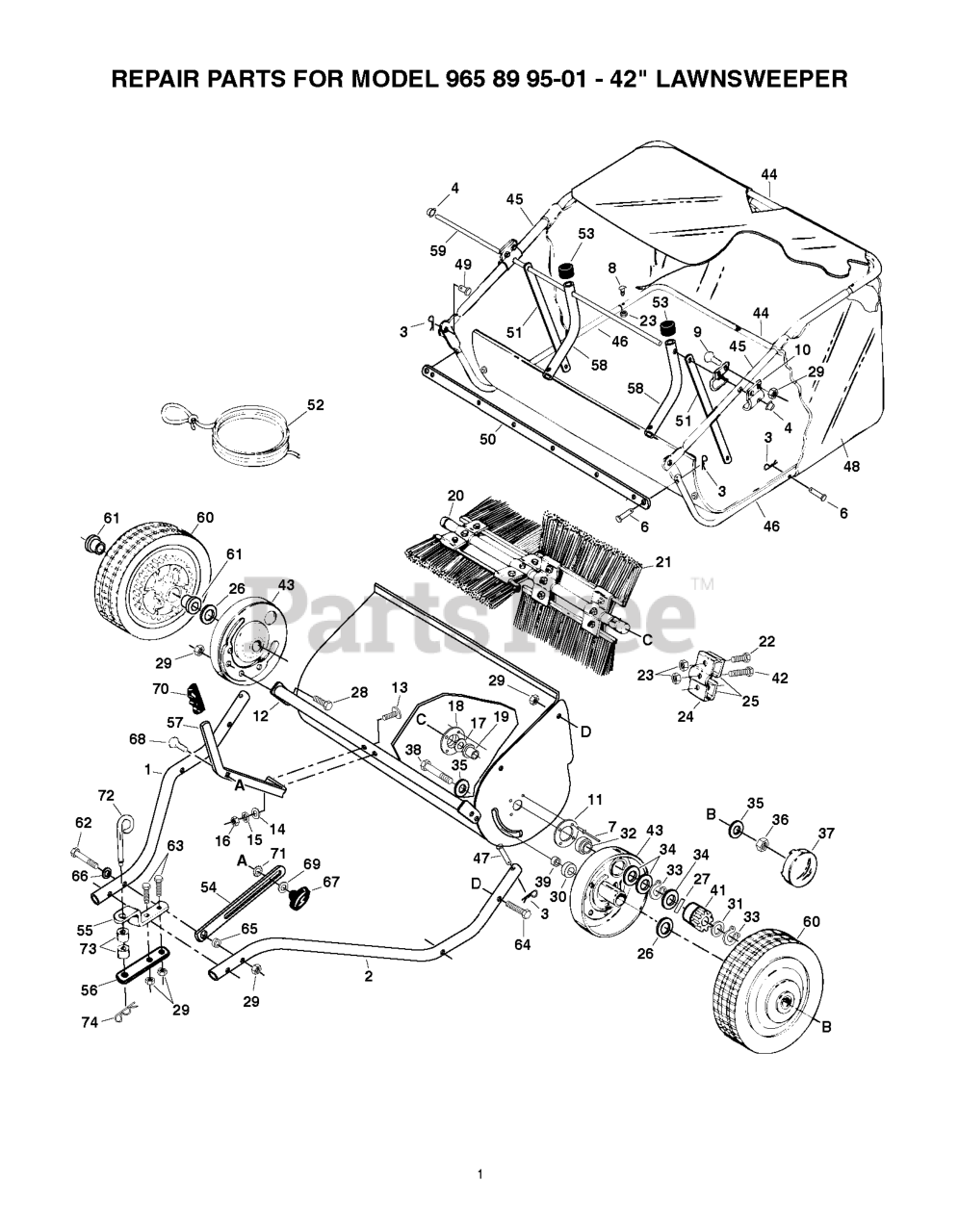

PRODUCT COMPLETE Parts Diagram

  • Title

43

Husqvarna 522762101

NEEDS DESCRIPTION

$

$

Currently unavailable

70

Husqvarna 506626401

Rubber Grip

$

$

Not available

25

Husqvarna 506620701

BRUSH RETAINER SINGLE

$

$

Not available

34

Husqvarna 506622501

SHIM WASHER

$

$

Not available

36

Husqvarna 522760901

NEEDS DESCRIPTION

$

$

Currently unavailable

2

Husqvarna 531002807

TUBE, L.H.

$

$

Not available

69

Husqvarna 522770301

WASHER

$

$

Not available

21

Husqvarna 531002819

BRUSH 42

$23.99

$

Usually ships in 3-10 days

0

65

Husqvarna 531002836

SPACER

$

$

Not available

56

Husqvarna 522751001

NEEDS DESCRIPTION

$

$

Currently unavailable

67

Husqvarna 506626001

Knob, Wing 5/16-18 Thread

$

$

Not available

48

Husqvarna 522762601

ASS'Y HOPPER BAG (22 CU. FT)

$

$

Not available

46

Husqvarna 522762401

NEEDS DESCRIPTION

$

$

Currently unavailable

29

Husqvarna 501021101

NUT

$

$

Not available

44

Husqvarna 522762201

NEEDS DESCRIPTION

$

$

Currently unavailable

58

Husqvarna 522763601

TUBE.BAG.ARM.AGRI-FAB

$

$

Not available

37

Husqvarna 506623001

HUB CAP

$

$

Not available

42

Husqvarna 531007626

BOLT

$

$

Not available

1

Husqvarna 522755501

NEEDS DESCRIPTION

$

$

Currently unavailable

4

Husqvarna 531002840

NUT

$1.99

$

Usually ships in 3-10 days

0

45

Husqvarna 522762301

NEEDS DESCRIPTION

$

$

Currently unavailable

19

Husqvarna 522759001

NEEDS DESCRIPTION

$

$

Currently unavailable

41

Husqvarna 522761601

NEEDS DESCRIPTION

$

$

Currently unavailable

13

Husqvarna 531002815

Bolt, Cv. Hd. 5/16-18 x 1-5/8" Lg.

$

$

Not available

17

Husqvarna 522758801

NEEDS DESCRIPTION

$

$

Currently unavailable

14

Husqvarna 531002816

WASHER

$

$

Not available

62

Husqvarna 531002834

Bolt, Hex 5/16-18 x 3" Lg.

$

$

Not available

28

Husqvarna 522759901

NEEDS DESCRIPTION

$

$

Currently unavailable

60

Husqvarna 531002746

WHEEL
(Superseded to 601001889)

$

$

Not available

74

Husqvarna 522752001

NEEDS DESCRIPTION

$

$

Currently unavailable

20

Husqvarna 522759101

NEEDS DESCRIPTION

$

$

Currently unavailable

55

Husqvarna 531002772

Bracket, Hitch

$

$

Not available

27

Husqvarna 531002863

NEEDS DESCRIPTION

$

$

Currently unavailable

26

Husqvarna 531002741

Washer, Flat 1-1/8" x .78" x .025"

$

$

Not available

3

Husqvarna 531002843

Pin, Hair Cotter 3/32" #3

$

$

Not available

73

Husqvarna 506626501

Hitch Adjustment Tube

$

$

Not available

72

Husqvarna 506625601

Pin, Hitch

$

$

Not available

33

Husqvarna 506622401

Retaining Ring .594" I.D.

$

$

Not available

59

Husqvarna 531002833

SHAFT

$

$

Not available

15

Husqvarna 531004656

WASHER

$

$

Not available

53

Husqvarna 531002842

CAP

$

$

Not available

52

Husqvarna 531002734

ROPE

$

$

Not available

35

Husqvarna 522760801

WASHER

$

$

Not available

50

Husqvarna 531002826

STRAP BAG FRAME

$

$

Not available

38

Husqvarna 522761101

NEEDS DESCRIPTION

$

$

Currently unavailable

68

Husqvarna 522770201

BOLT

$

$

Not available

64

Husqvarna 531002838

SCREW
(Superseded to 522751501)

$

$

Not available

39

Husqvarna 506626601

Spacer 13/32" x 5/8" x 3/16"

$

$

Not available

22

Husqvarna 522759301

BOLT

$

$

Not available

66

Husqvarna 531007476

NEEDS DESCRIPTION

$

$

Currently unavailable

11

Husqvarna 522758201

NEEDS DESCRIPTION

$

$

Currently unavailable

24

Husqvarna 506620601

BRUSHRETAINER DOUBLE

$10.99

$

Usually ships in 3-10 days

0

47

Husqvarna 531002844

PIN CLEVIS 1/4

$

$

Not available

7

Husqvarna 522756101

NEEDS DESCRIPTION

$

$

Currently unavailable

12

Husqvarna 522758301

NEEDS DESCRIPTION

$

$

Currently unavailable

31

Husqvarna 531007628

WASHER

$

$

Not available

6

Husqvarna 531007684

PIN

$6.99

$

Usually ships in 3-10 days

0

61

Husqvarna 531002740

BEARING

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 522756301

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 506626701

HOPPER MOUNTING CLAMPS

$

$

Not available

71

Husqvarna 531002839

WASHER, TOOTH LOCK

$1.99

$

Usually ships in 3-10 days

0

63

Husqvarna 531002835

SCREW

$

$

Not available

51

Husqvarna 522762901

NEEDS DESCRIPTION

$

$

Currently unavailable

30

Husqvarna 522760201

NEEDS DESCRIPTION

$

$

Currently unavailable

49

Husqvarna 531007685

PIN

$6.99

$

Usually ships in 3-10 days

0

32

Husqvarna 522760401

NEEDS DESCRIPTION

$

$

Currently unavailable

54

Husqvarna 531002828

ARM

$

$

Not available

18

Husqvarna 506620401

BEARING RETAINER

$

$

Not available

8

Husqvarna 522756201

NEEDS DESCRIPTION

$

$

Currently unavailable

23

Husqvarna 531008164

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 531004657

NUT

$

$

Not available

57

Husqvarna 531002831

Handle, Height Adjustment

$

$

Not available
