966004401 - Husqvarna 44" Grass Collection Blower Kit (2009-05) Repair Parts and Blower / Fan Parts Diagram

44" Grass Collection Blower Kit

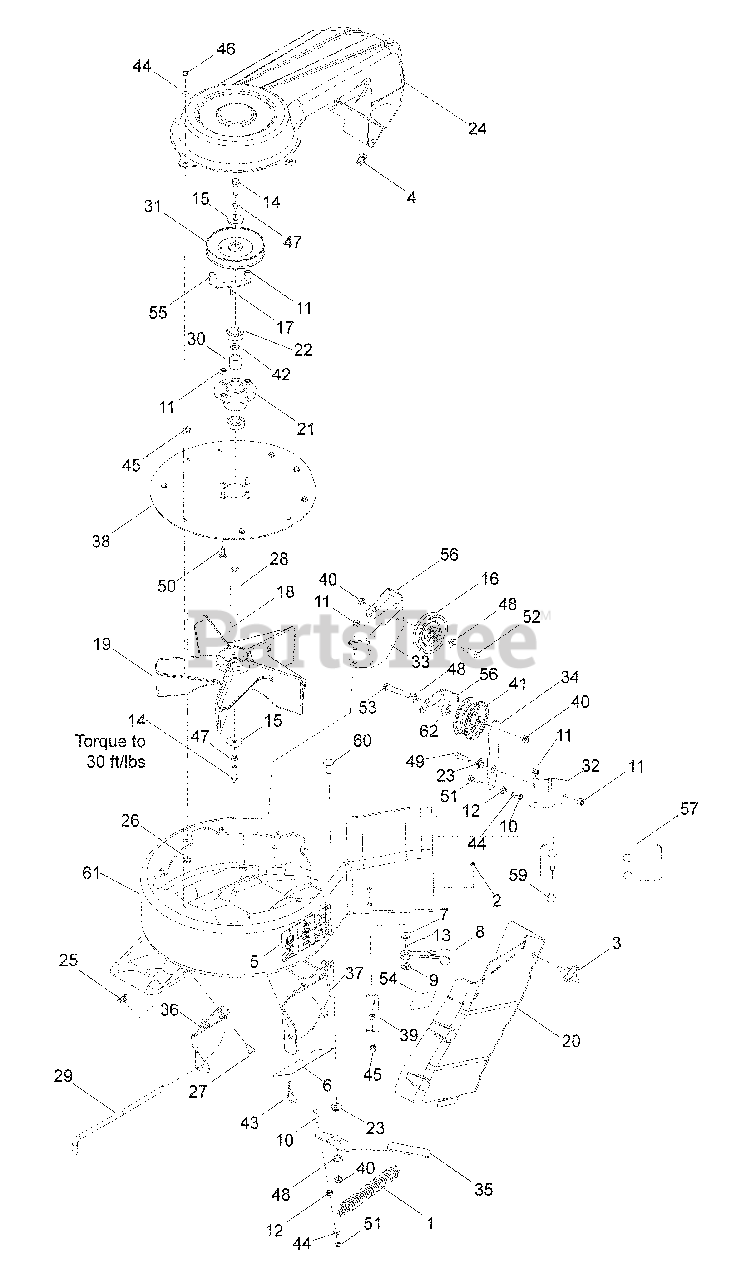

Repair Parts and Blower / Fan Parts Diagram

  • Title

1

Husqvarna 539101977

TRACTION SPRING

$13.99

$

In Stock, only 3 left!

0

2

Husqvarna 539976952

SCREW 10-24 x .625 RD
(Superseded to 596039001)

$3.49

$

In Stock, only 3 left!

0

3

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 13

0

4

Husqvarna 539104763

RETAINER U TYPE

$4.99

$

In Stock, Qty 7

0

5

Husqvarna 539105785

DECAL, WARNING

$11.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539106741

DECAL, SEVERING

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539108084

WASHER 3/16 x ¾ x 16 GA

$3.99

$

In Stock, Qty 8

0

8

Husqvarna 539108088

LATCH, HOOD
(Superseded to 532109808)

$4.99

$

In Stock, Qty 16

0

9

Husqvarna 539108089

WELD NUT, PLATED
(Superseded to 596987401)

$3.49

$

In Stock, Qty 13

0

10

Husqvarna 539108120

NUT ¼-20 HEX NYLOC
(Superseded to 596031501)

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 539108735

NUT ¼-20 HEX FLANGE

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 539109552

WASHER 3/16 LOCK

$

$

Not available

14

Husqvarna 539110321

BOLT, HEX 3/8-24 x 1¼ GR 8
(Superseded to 532850857)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 539110323

WASHER, HARDENED
(Superseded to 532140296)

$6.99

$

In Stock, Qty 16

0

16

Husqvarna 539113683

V-IDLER

$56.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539115667

KEY 3/16 x ½

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539125229

KEY 3/16 x 1½

$4.99

$

In Stock, only 1 left!

0

19

Husqvarna 539130292

IMPELLER

$113.99

$

In Stock, only 1 left!

0

20

Husqvarna 539130293

COVER, BELT

$74.99

$

In Stock, only 2 left!

0

21

Husqvarna 539130295

HUB, BEARING

$85.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539130296

BEARING

$7.99

$

In Stock, only 3 left!

0

23

Husqvarna 539130301

BUSHING

$

$

Not available

24

Husqvarna 539130309

COVER, OUTER PULLEY

$34.99

$

In Stock, only 2 left!

0

25

Husqvarna 539130313

NUT 5/16-18 TEE

$3.49

$

In Stock, Qty 8

0

26

Husqvarna 539130314

NUT ¼-20 TEE

$4.99

$

In Stock, Qty 18

0

27

Husqvarna 539130315

HCS 5/16-18 x ½
(Superseded to 596433301)

$3.49

$

In Stock, Qty 6

0

28

Husqvarna 539130316

SHAFT, IMPELLER

$74.99

$

In Stock, only 2 left!

0

29

Husqvarna 539116225

PIN

$

$

Not available

30

Husqvarna 539130323

SPACER

$17.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539130324

PULLEY

$51.99

$

In Stock, only 4 left!

0

32

Husqvarna 539130335

MOUNT, IDLER, UPPER

$

$

Not available

33

Husqvarna 539130336

MOUNT, IDLER, LOWER

$62.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539130337

ARM, IDLER

$

$

Not available

35

Husqvarna 539130338

ARM, TENSION

$

$

Not available

36

Husqvarna 539130205

BRACKET, MOUNT, FRONT

$4.99

$

In Stock, only 2 left!

0

37

Husqvarna 522949902

BRACKET, MOUNT, REAR

$

$

Not available

38

Husqvarna 539130341

PLATE, OUTER

$74.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539130346

KEEPER

$

$

Not available

40

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC
(Superseded to 596230801)

$3.49

$

In Stock, only 1 left!

0

41

Husqvarna 539919078

PULLEY, IDLER

$31.99

$

In Stock, only 2 left!

0

42

Husqvarna 539910935

WASHER

$3.99

$

In Stock, only 2 left!

0

43

Husqvarna 539115501

HAIRPIN COTTER, 1/8 x 1¾

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 539990055

WASHER ¼ FLAT SAE
(Superseded to 596582301)

$3.49

$

In Stock, only 2 left!

0

45

Husqvarna 539990302

SCREW ¼ x 3/8 THRD FRM
(Superseded to 596582701)

$3.49

$

Usually ships in 3-10 days

0

46

Husqvarna 539108461

HCS ¼-20 x ½

$3.49

$

In Stock, only 2 left!

0

47

Husqvarna 539990118

WASHER 3/8 SPLT LOCK
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

49

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

51

Husqvarna 539990643

HCS ¼-20 x 7/8
(Superseded to 596565401)

$3.49

$

In Stock, only 1 left!

0

52

Husqvarna 539990655

HCS 3/8-16 x 1½

$4.99

$

In Stock, only 1 left!

0

53

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

54

Husqvarna 539130349

DECAL, BELT ROUTING

$7.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539131085

KEEPER, BELT, OUTER

$5.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539131087

KEEPER, BELT, REAR

$34.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539132122

PLATE, BACKING

$22.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539132124

PLATE, BACKING

$13.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539990208

RHSNB 5/16-18 x 1

$

$

Not available

60

Husqvarna 539990645

RHSNB 3/8-16 x 1
(Superseded to 595316801)

$4.99

$

In Stock, only 2 left!

0

61

Husqvarna 539130344

HOUSING w/DECALS

$432.99

$

Usually ships in 3-10 days

0

62

Husqvarna 510116501

SPACER, BELT RETAINER

$

$

Not available
