966004901 - Dixon Grass Collection System for 52" Kodiak SE Zero-Turn Mowers (2009-01) HOOD Parts Diagram

Grass Collection System for 52" Kodiak SE Zero-Turn Mowers

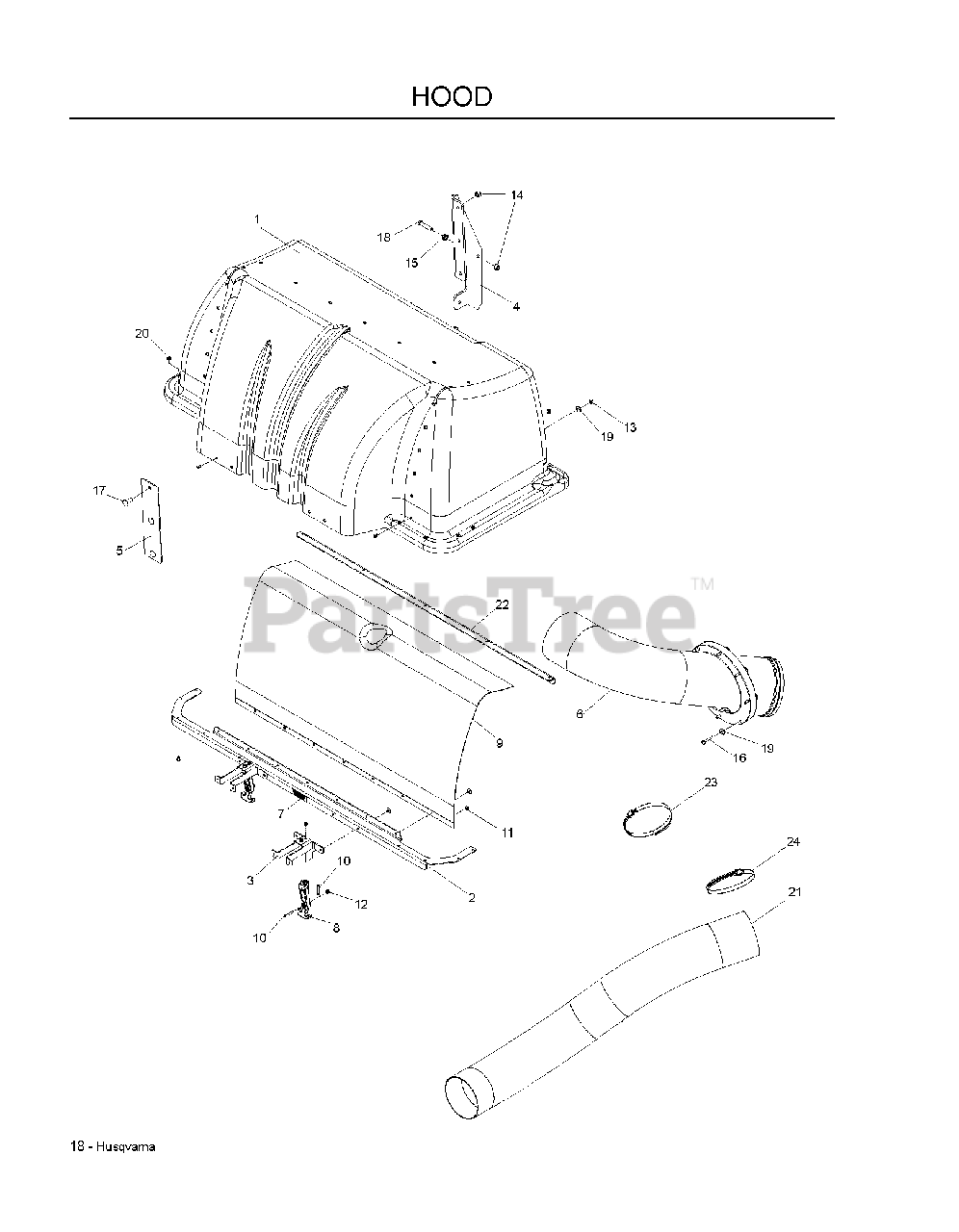

HOOD Parts Diagram

  • Title

1

Dixon 539111172

HOOD

$359.99

$

Usually ships in 3-10 days

0

2

Dixon 539111174

HOOD SUPPORT

$

$

Not available

3

Dixon 539111175

SUPPORT, DRAW LATCH

$59.99

$

Usually ships in 3-10 days

0

4

Dixon 539111177

HOOD HINGE

$

$

Not available

5

Dixon 539111181

MOUNT PLATE

$

$

Not available

6

Dixon 539111182

INLET TUB

$179.99

$

Usually ships in 3-10 days

0

7

Dixon 539111260

DECAL, VENTILATION

$3.99

$

Usually ships in 3-10 days

0

8

Dixon 539200478

No Description Available
(Superseded to 540200478)

$41.99

$

Usually ships in 3-10 days

0

9

Dixon 539111183

MESH, POLY DIAMOND

$8.49

$

Usually ships in 3-10 days

0

10

Dixon 539111186

SCR, #10-24 X 1-1/8

$

$

Not available

11

Dixon 539105408

WASHER #10

$4.99

$

In Stock, Qty 8

0

12

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

13

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

14

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

15

Dixon 539990613

NUT 3/8C WHIZ

$

$

Not available

16

Dixon 539991003

BOLT 1/4C X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available

18

Dixon 539990730

HCS 3/8CX 1 3/4

$1.99

$

Usually ships in 3-10 days

0

19

Dixon 539990598

WASHER 1/4 FLAT

$

$

Not available

20

Dixon 539110033

WASHER, #10 MACH SCR BLK OX

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 523000201

HOSE, 7" X 42"

$

$

Not available

22

Dixon 539111339

HOOD SUPPORT, REAR

Note: REAR

$

$

Not available

23

Dixon 539109901

OVER CTR BAND

$77.99

$

Usually ships in 3-10 days

0

24

Dixon 539097076

HOSE CLAMP 4-3/4 TO 7-3/4"

Note: CENTER

$

$

Not available
