966406901 - Dixon Grass Collection System (2010-01) GUARDS Parts Diagram

Grass Collection System

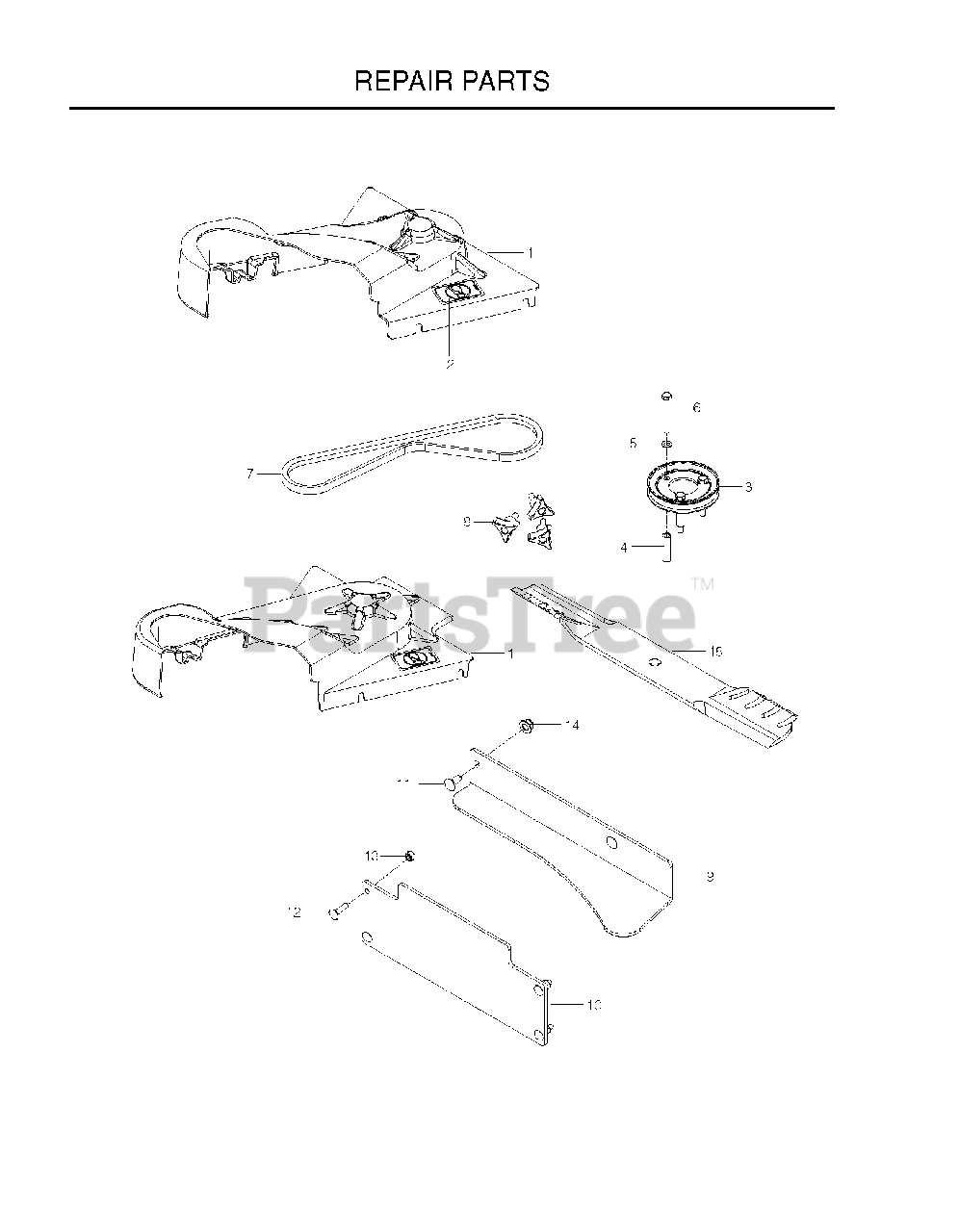

GUARDS Parts Diagram

  • Title

1

Dixon 522595802

SHIELD, LOWER, 54"

Note: 54

$91.99

$

In Stock, only 1 left!

0

Dixon 522595801

SHIELD, LOWER, 60"

Note: 60

$91.99

$

Usually ships in 3-10 days

0

2

Dixon 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

3

Dixon 522594502

PULLEY, DRIVE, 54"

Note: 54

$21.99

$

In Stock, only 1 left!

0

Dixon 522594501

PULLEY, DRIVE, 60"

Note: 60

$21.99

$

Usually ships in 3-10 days

0

4

Dixon 573982701

SPACER, PULLEY

$17.99

$

In Stock, only 2 left!

0

5

Dixon 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available

6

Dixon 539991046

BOLT 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0

7

Dixon 539100439

BELT, DRIVE

Note: 54

$42.99

$

In Stock, only 1 left!

0

Dixon 574216101

Blower Belt

Note: 60

$27.99

$

Usually ships in 3-10 days

0

8

Dixon 539104411

KNOB W/STUD
(Superseded to 597783101)

$2.49

$

In Stock, Qty 20+

0

9

Dixon 575594102

BAFFLE, RH, BLACK

$84.99

$

Usually ships in 3-10 days

0

10

Dixon 575593602

BAFFLE, LH, BLACK

$66.99

$

Usually ships in 3-10 days

0

11

Dixon 539109800

RHSNB, 1/4-20 X 1, GR5
(Superseded to 592807801)

$4.99

$

In Stock, only 3 left!

0

12

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

13

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

15

Dixon 525525901

BLADE, 19" GATOR, 1.25" LIFT

Note: 54

$30.99

$

In Stock, Qty 11

0

Dixon 522936601

BLADE, 21" GATOR, 1.25 LIFT

Note: 60

$30.99

$

In Stock, Qty 7

0
