966406901 - Husqvarna Collection System (2010-01) Repair Parts Parts Diagram

Collection System

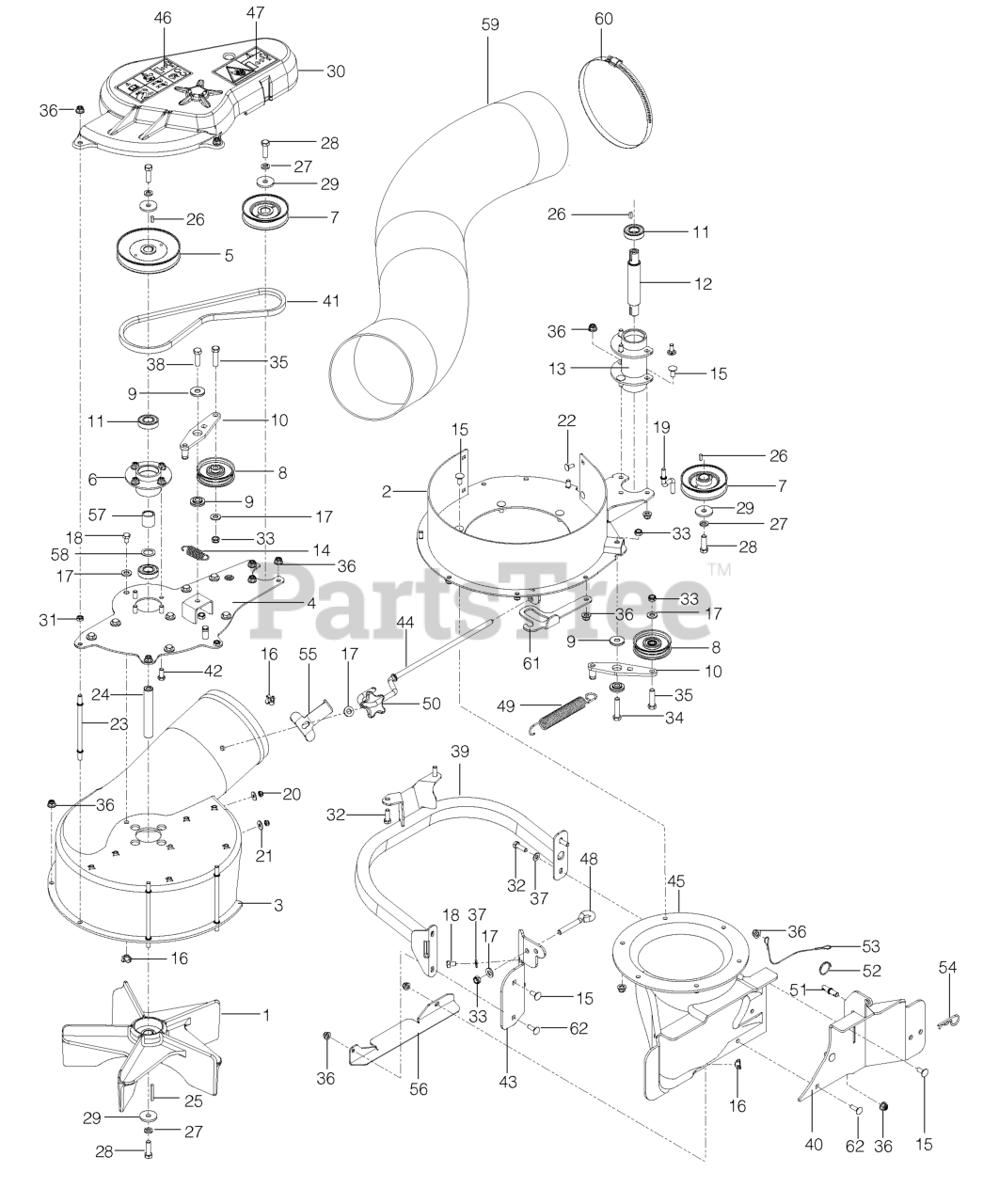

Repair Parts Parts Diagram

  • Title

1

Husqvarna 575488401

IMPELLER, WELDMENT

$398.99

$

Usually ships in 3-10 days

0

2

Husqvarna 522593902

WELDMENT, BLOWER RING, BLK

$

$

Not available

3

Husqvarna 522594001

HOUSING, IMPELLER

$

$

Not available

4

Husqvarna 522594402

WELDMENT, TOP PLATE, BLK

$478.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539130324

PULLEY

$51.99

$

In Stock, only 2 left!

0

6

Husqvarna 539130295

HUB, BEARING

$59.99

$

Usually ships in 3-10 days

0

7

Husqvarna 522594601

PULLEY, DRIVE

$47.99

$

In Stock, Qty 18

0

8

Husqvarna 539106721

PULLEY

$29.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539132161

BUSHING, BRAKE

$3.49

$

In Stock, Qty 17

0

10

Husqvarna 522594802

WELDMENT, IDLER, BLK

$27.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539130296

BEARING

$8.49

$

In Stock, Qty 20+

0

12

Husqvarna 522594901

SHAFT, SPINDLE

$65.99

$

Usually ships in 3-10 days

0

13

Husqvarna 522595001

WELDMENT, SPINDLE TUBE

$167.99

$

In Stock, only 1 left!

0

14

Husqvarna 522595101

SPRING, IDLER

$11.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$2.49

$

In Stock, Qty 12

0

16

Husqvarna 539130313

NUT 5/16-18 TEE

$3.99

$

In Stock, Qty 8

0

17

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539130315

HCS 5/16-18 X 1/2 GR 5 ZD
(Superseded to 596433301)

$3.99

$

In Stock, Qty 12

0

19

Husqvarna 522595201

KEEPER, BELT

$53.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 596031501)

$2.49

$

In Stock, Qty 20+

0

21

Husqvarna 539990598

WASHER 1/4 FLAT
(Superseded to 597338501)

$17.99

$

In Stock, Qty 20+

0

22

Husqvarna 539111786

RHSSNB, 1/4-20X5/8

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 522595301

PIN, RETENTION

$15.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539130316

SHAFT, IMPELLER

$77.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539125229

KEY-SQ. 3/16 X 1 1/2

$4.99

$

In Stock, only 2 left!

0

26

Husqvarna 539115667

KEY, 3/16 X 1/2

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539110321

BOLT, HEX 3/8-24 X 1.25 GR 8
(Superseded to 532850857)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539110323

WASHER, HARDENED
(Superseded to 532140296)

$6.99

$

In Stock, Qty 14

0

30

Husqvarna 522595402

SHIELD, TOP BELT, W/DECALS

$107.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539107897

NUT 5/16-18 HEX JAM ZD
(Superseded to 596436301)

$3.99

$

In Stock, only 3 left!

0

32

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, Qty 19

0

33

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 539976979)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539976949

BOLT, HCS 3/8-16X1-3/4
(Superseded to 596918101)

$3.99

$

In Stock, only 2 left!

0

35

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 1 left!

0

36

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

37

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

39

Husqvarna 522596202

GUARD, RUB, BLK

$

$

Not available

40

Husqvarna 522596502

MOUNT, REAR, BLK
(Superseded to 580279402)

$359.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539101386

BELT-TRANS

$31.99

$

In Stock, only 2 left!

0

42

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 522595502

BRACKET, MOUNT, FT-BLK

$53.99

$

Usually ships in 3-10 days

0

44

Husqvarna 522595601

PIN, MOUNT

$

$

Not available

45

Husqvarna 522593301

HOUSING, BLOWER

$159.99

$

In Stock, only 1 left!

0

46

Husqvarna 539105785

DECAL, EURO WARNING

$11.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539106741

EURO DECAL, IMPELLER

$6.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539107484

EYE BOLT
(Superseded to 596671601)

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532196105

SPRING, DECK DRIVE

$7.49

$

In Stock, Qty 20+

0

50

Husqvarna 574039301

KNOB, 5/16-18 X 1/2

$11.99

$

Usually ships in 3-10 days

0

51

Husqvarna 574031301

PIN, MOUNT

$20.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539916459

RETAINER

$

$

Not available

53

Husqvarna 539102563

LANYARD

$9.49

$

Usually ships in 3-10 days

0

54

Husqvarna 539976989

HAIRPIN #4
(Superseded to 596273101)

$3.99

$

In Stock, Qty 20+

0

55

Husqvarna 573989702

BRACKET, RETAINER, BLK

$89.99

$

Usually ships in 3-10 days

0

56

Husqvarna 575699602

BRACKET, DIVERTER BLK

$

$

Not available

57

Husqvarna 539130323

SPACER

$17.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539910935

WASHER .787 X 1.125 X .06

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539111314

HOSE 7 X 54 CLEAR

$

$

Not available

60

Husqvarna 574386601

CLAMP, HOSE

$8.49

$

Usually ships in 3-10 days

0

61

Husqvarna 575472002

LATCH, PIN, BLK

$22.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539990208

RHSNB 5/16C X 1
(Superseded to 595901501)

$4.99

$

In Stock, Qty 20+

0
