966416001 - Husqvarna Snow Blower Attachment (2012-02) PRODUCT COMPLETE 2 Parts Diagram

Snow Blower Attachment

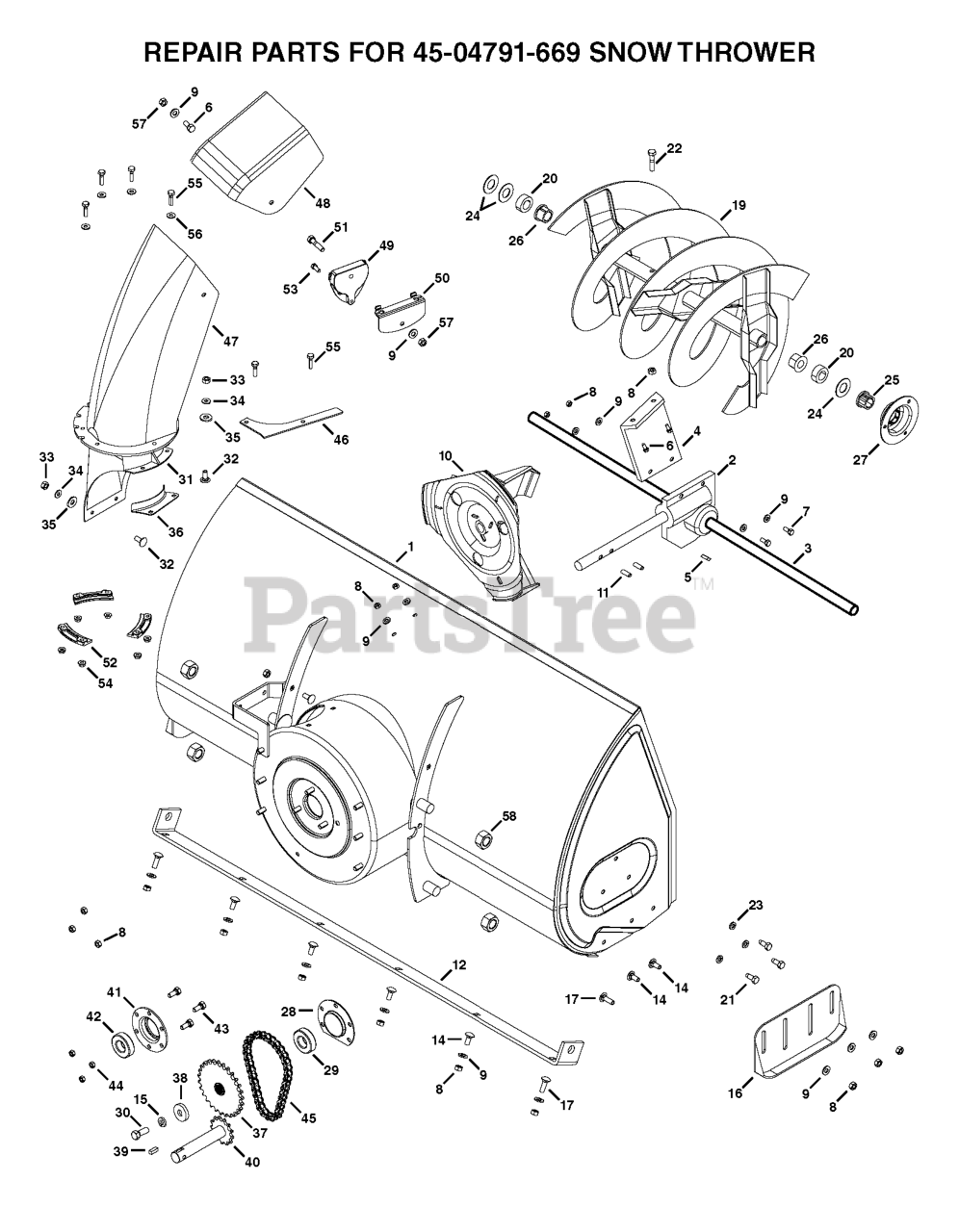

PRODUCT COMPLETE 2 Parts Diagram

  • Title

16

Husqvarna 501337501

SKID SHOE

$

$

Not available

6

Husqvarna 506622601

HEX BOLT 5/16ÄX3/4Ä
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 501337001

WASHER

$

$

Not available

51

Husqvarna 501332101

BOLT

$

$

Not available

25

Husqvarna 531007655

BEARING

$

$

Not available

45

Husqvarna 577768801

CHAIN

$

$

Not available

8

Husqvarna 501021101

NUT

$

$

Not available

37

Husqvarna 577777201

SPROCKET

$

$

Not available

26

Husqvarna 501337401

BEARING

$

$

Not available

54

Husqvarna 501339701

NUT

$

$

Not available

49

Husqvarna 501339901

CABLE GUIDE

$

$

Not available

56

Husqvarna 577779201

WASHER

$

$

Not available

48

Husqvarna 577779001

CHUTE

$

$

Not available

42

Husqvarna 577769101

BEARING

$

$

Not available

22

Husqvarna 501336601

BOLT

$

$

Not available

18

Husqvarna 501336301

AUGER

$

$

Not available

58

Husqvarna 501334101

NUT

$

$

Not available

32

Husqvarna 531007637

BOLT

$

$

Not available

21

Husqvarna 501336501

BOLT

$

$

Not available

28

Husqvarna 501335301

HOUSING

$

$

Not available

34

Husqvarna 522835901

WASHER

$

$

Not available

30

Husqvarna 531007625

BOLT

$

$

Not available

7

Husqvarna 531008117

SCREW

$

$

Not available

38

Husqvarna 501339601

WASHER

$

$

Not available

14

Husqvarna 506625501

CARRIAGE BOLT
(Superseded to 872140506)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 501340601

KEY

$

$

Not available

17

Husqvarna 522770201

BOLT

$

$

Not available

12

Husqvarna 501335801

PLATE

$

$

Not available

2

Husqvarna 501335501

GEAR BOX 71464

$511.99

$

Usually ships in 3-10 days

0

15

Husqvarna 577157101

LOCK WASHER

$

$

Not available

31

Husqvarna 501336901

CHUTE

$

$

Not available

52

Husqvarna 501340301

BRACKET

$

$

Not available

1

Husqvarna 501335401

HOUSING

$

$

Not available

33

Husqvarna 504066001

NUT

$

$

Not available

10

Husqvarna 501335701

IMPELLER

$

$

Not available

11

Husqvarna 501336701

PIN

$

$

Not available

19

Husqvarna 501336401

AUGER

$

$

Not available

41

Husqvarna 501345801

HOUSING

$

$

Not available

55

Husqvarna 522761701

BOLT
(Superseded to 531007626)

$

$

Not available

3

Husqvarna 501335901

SHAFT

$

$

Not available

23

Husqvarna 522758601

LOCK WASHER
(Superseded to 735116450)

$2.49

$

In Stock, only 1 left!

0

50

Husqvarna 501338301

BRACKET

$

$

Not available

44

Husqvarna 531007629

NUT

$

$

Not available

20

Husqvarna 501337101

SPACER

$

$

Not available

53

Husqvarna 501340201

SCREW

$

$

Not available

47

Husqvarna 501340401

CHUTE

$

$

Not available

29

Husqvarna 501337201

BALL BEARING

$

$

Not available

46

Husqvarna 577768401

STOP

$

$

Not available

57

Husqvarna 531007616

NUT

$

$

Not available

9

Husqvarna 522770301

WASHER

$

$

Not available

43

Husqvarna 577158401

BOLT

$

$

Not available

35

Husqvarna 501337601

WASHER

$

$

Not available

36

Husqvarna 501336201

SUPPORT

$

$

Not available

40

Husqvarna 577777601

SHAFT

$

$

Not available

27

Husqvarna 501337701

HOUSING

$

$

Not available

4

Husqvarna 501340501

BRACKET

$

$

Not available

39

Husqvarna 501340601

KEY

$

$

Not available
