966445001 - Husqvarna 54" Grass Catcher (2009-06) Repair Parts Parts Diagram

54" Grass Catcher

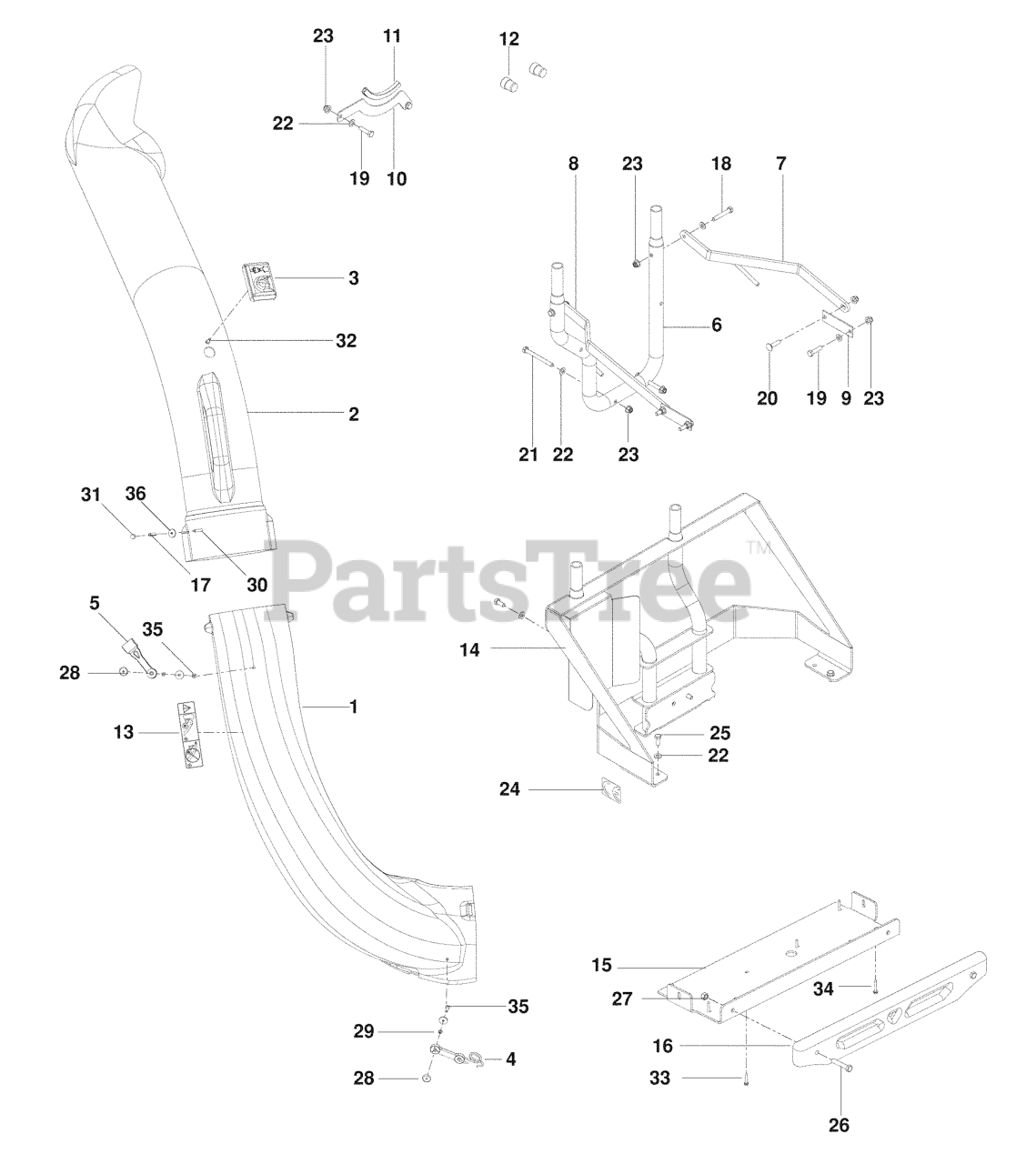

Repair Parts Parts Diagram

  • Title

1

Husqvarna 539113204

CHUTE, LOWER 54
(Superseded to 532187300)

$101.99

$

In Stock, only 1 left!

0

2

Husqvarna 539108141

CHUTE.COLLECTION.UPPER

$107.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539108082

DUMP BAG INDICATOR
(Superseded to 532140572)

$7.99

$

In Stock, only 2 left!

0

4

Husqvarna 539108194

LATCH ASSY TBR
(Superseded to 597000601)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539108088

HOOD LATCH
(Superseded to 532109808)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 539131091

MOUNT.TUBE.COLLECTIONS

$179.99

$

Usually ships in 3-10 days

0

7

Husqvarna 522854502

STRAP, SUPPORT, LT BLK

$418.99

$

Usually ships in 3-10 days

0

8

Husqvarna 522854402

STRAP, SUPPORT, RT BLK

$

$

Not available

9

Husqvarna 523112802

REINFORCEMENT PLATE BLK

$101.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539110234

SUPPORT.CHUTE.COLLECTION.BLACK

$23.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539112294

RP.FLEX TRIM, BLK-LENGTH 1 FT
(Superseded to 589362602)

$5.99

$

In Stock, only 2 left!

0

12

Husqvarna 522801301

SPACER PLUG, BAGGER

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539108163

DECAL, CATCHER

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 505338202

HITCH, COLLECTION, BLACK

$

$

Not available

15

Husqvarna 539113225

WEIGHT BRKT PAINTED

$

$

Not available

16

Husqvarna 539113177

WEIGHT, CAST

$

$

Not available

17

Husqvarna 539108085

BSHG .202X.75 LG SPLIT ZD SPEC
(Superseded to 532007206)

$5.99

$

In Stock, only 2 left!

0

18

Husqvarna 539976937

HCS 5/16-18X2

$3.99

$

In Stock, only 2 left!

0

19

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 539110472

BRACKET DEFLECTOR MOWER 42
(Superseded to 529845901)

$5.99

$

In Stock, Qty 11

0

21

Husqvarna 539101520

HCS 5/16-18 X 3 1/4

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

24

Husqvarna 539108447

DECAL, CE

$

$

Not available

25

Husqvarna 539107899

HCS 5/16-18 X 3/4 GR 8 ZD

$

$

Not available

26

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 11

0

27

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539108089

NUT 10-24 WELD PLATED
(Superseded to 596987401)

$3.99

$

In Stock, Qty 15

0

29

Husqvarna 539109552

WASHER - 3/16 LOCK ZD
(Superseded to 596987301)

$3.99

$

In Stock, Qty 9

0

30

Husqvarna 539108083

SCREW #10-24 X 1-1/8 ZD SPEC

$

$

Not available

31

Husqvarna 539108086

NUT 10-24 ACORN ZD

$3.99

$

In Stock, Qty 11

0

32

Husqvarna 539108081

SCREW
(Superseded to 818021008)

$5.99

$

In Stock, Qty 6

0

33

Husqvarna 539113182

SCR #10-12 X 1 HEX

$

$

Not available

34

Husqvarna 539113183

SCR #10-12 X 1-1/4 HEX

$

$

Not available

35

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 539108084

WASHER

$3.99

$

In Stock, only 2 left!

0

Husqvarna 539990598

WASHER 1/4 FLAT
(Superseded to 597338501)

Note: NOT SHOWN

$17.99

$

In Stock, Qty 20+

0

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

Note: NOT SHOWN

$3.99

$

Usually ships in 3-10 days

0
