966476901 - Husqvarna Collection Kit (2009-08) Repair Parts Parts Diagram

Collection Kit

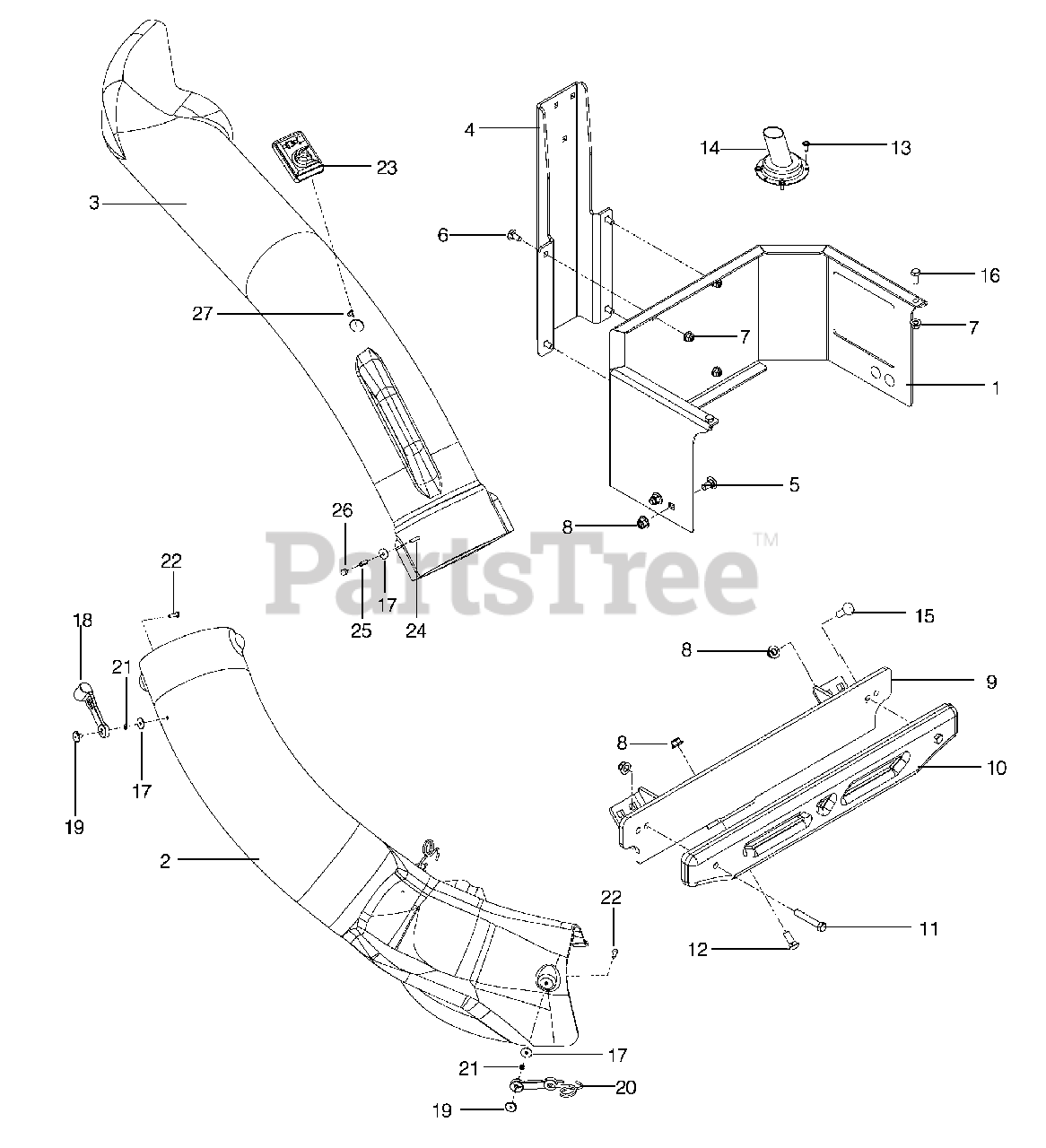

Repair Parts Parts Diagram

  • Title

1

Husqvarna 574031003

GUARD REAR.RZ30.BLACK

$275.99

$

Usually ships in 3-10 days

0

2

Husqvarna 573975801

CHUTE, LOWER 30

$

$

Not available

3

Husqvarna 539108141

CHUTE.COLLECTION.UPPER

$107.99

$

Usually ships in 3-10 days

0

4

Husqvarna 574031102

BRACKET, COLLECTION (PTD)

$

$

Not available

5

Husqvarna 539111785

RHSNB 3/8-16 X 3/4 GR5 ZD

$8.49

$

Usually ships in 3-10 days

0

6

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$2.49

$

In Stock, Qty 8

0

7

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

8

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 7

0

9

Husqvarna 574255502

WELDMENT.WEIGHT.BRACKET.RZ30.B

$

$

Not available

10

Husqvarna 539113177

WEIGHT, CAST

$

$

Not available

11

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$

$

Not available

12

Husqvarna 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 539115537

SCREW, TAP #10-16 X 1/2

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539131601

MUFFLER EXTENSION

$

$

Not available

15

Husqvarna 539100413

RHSNB 3/8-16 X 1-1/4

$

$

Not available

16

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 539108084

WASHER

$3.99

$

In Stock, only 2 left!

0

18

Husqvarna 539108088

HOOD LATCH
(Superseded to 532109808)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 539108089

NUT 10-24 WELD PLATED
(Superseded to 596987401)

$3.99

$

In Stock, Qty 15

0

20

Husqvarna 539108194

LATCH ASSY TBR
(Superseded to 597000601)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 539109552

WASHER - 3/16 LOCK ZD
(Superseded to 596987301)

$3.99

$

In Stock, Qty 9

0

22

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539108082

DUMP BAG INDICATOR
(Superseded to 532140572)

$7.99

$

In Stock, only 2 left!

0

24

Husqvarna 539108083

SCREW #10-24 X 1-1/8 ZD SPEC

$

$

Not available

25

Husqvarna 539108085

BSHG .202X.75 LG SPLIT ZD SPEC
(Superseded to 532007206)

$5.99

$

In Stock, only 2 left!

0

26

Husqvarna 539108086

NUT 10-24 ACORN ZD

$3.99

$

In Stock, Qty 11

0

27

Husqvarna 539108081

SCREW
(Superseded to 818021008)

$5.99

$

In Stock, Qty 6

0
