966555402 - Husqvarna 61" Mower Deck Assembly for PZ (2010-03) Repair Parts Parts Diagram

61" Mower Deck Assembly for PZ

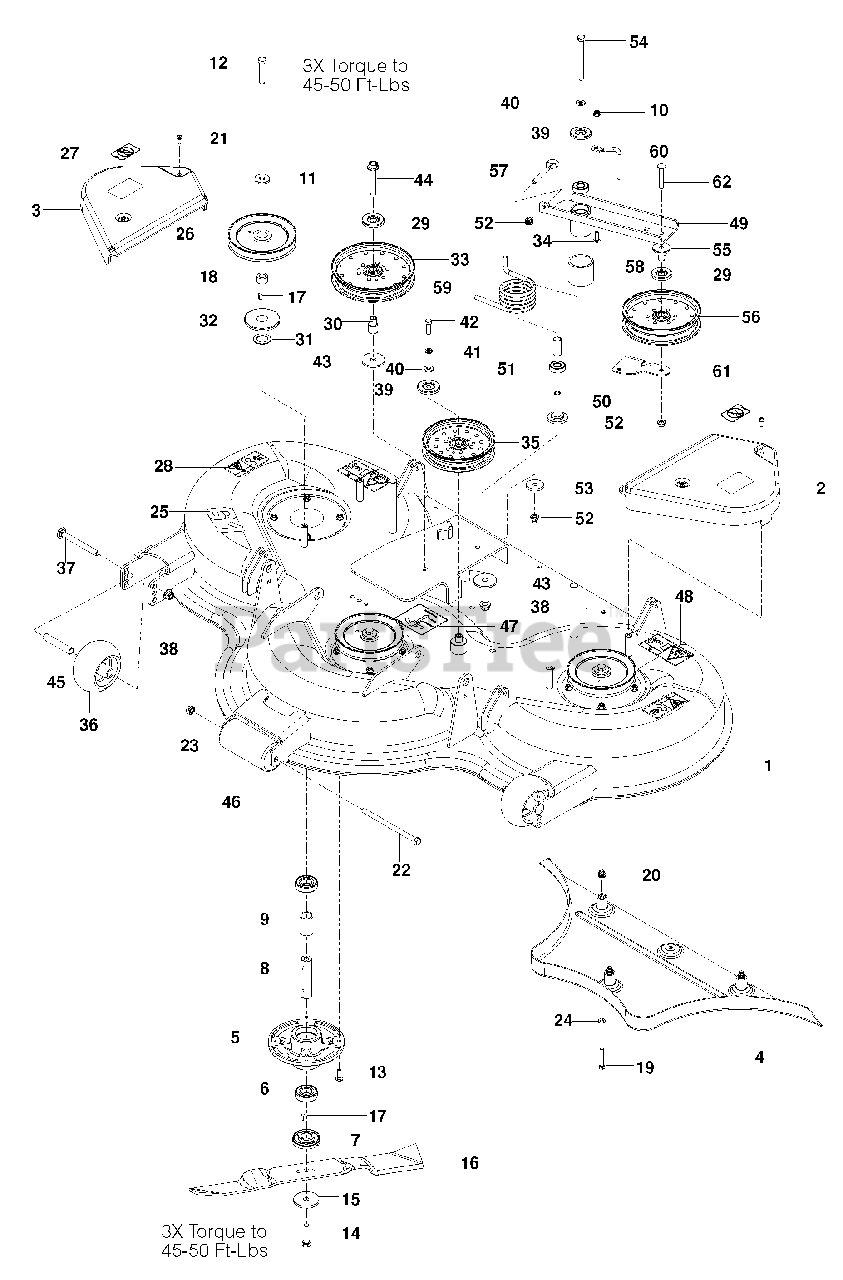

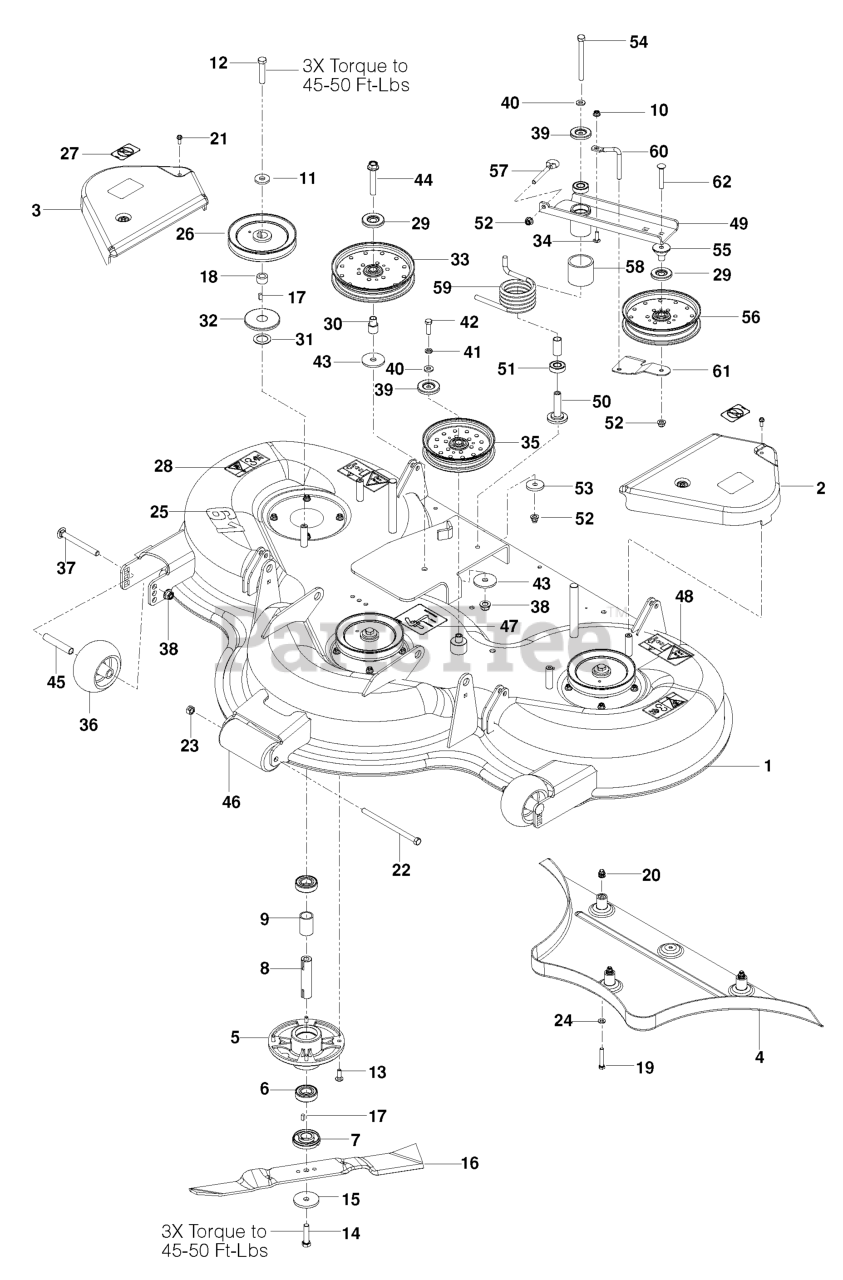

Repair Parts Parts Diagram

  • Title

1

Husqvarna 576380201

DECK W/SAFETY DECALS

$

$

Not available

2

Husqvarna 539112508

BELT SHIELD LT

$29.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539112509

BELT SHIELD RT

$59.99

$

In Stock, only 1 left!

0

4

Husqvarna 544166401

PLUG ASSEMBLY

$

$

Not available

5

Husqvarna 535428901

BEARING HOUSING

$

$

Not available

6

Husqvarna 738220519

BALL BEARING

$58.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539132778

BUSHING, BLADE

$

$

Not available

8

Husqvarna 535428702

AXLE

$68.99

$

Usually ships in 3-10 days

0

9

Husqvarna 535428801

SPACER

$10.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

11

Husqvarna 539115550

WASHER-.533IDX1.37OD

$

$

Not available

12

Husqvarna 539132479

HCS M12 X 1.75 X 60 GR5 ZD

$3.49

$

In Stock, only 1 left!

0

13

Husqvarna 539990208

RHSNB 5/16C X 1
(Superseded to 595901501)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 539132480

HCS M12 X 1.75 X 50 GR8.8 ZD

$3.99

$

In Stock, only 1 left!

0

15

Husqvarna 506792302

WASHER

$

$

Not available

16

Husqvarna 544175801

BLADE

$

$

Not available

17

Husqvarna 506533501

KEY

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539112609

KEY RETAINER

$

$

Not available

19

Husqvarna 539132494

HCS M8 X 1.25 X 50 GR8.8 ZD

$

$

Not available

20

Husqvarna 506916203

BLIND RIVET NUT

$9.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

22

Husqvarna 539132470

HCS 7/16-14 X 7 GR5 ZD

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.49

$

In Stock, only 2 left!

0

24

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 544245302

DECAL
(Superseded to 539002461)

$

$

Not available

26

Husqvarna 539112507

PULLEY, 61

$

$

Not available

27

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, Qty 10

0

28

Husqvarna 539105744

DECAL, BELT DRIVE

$3.99

$

In Stock, only 2 left!

0

29

Husqvarna 510262201

SHIELD, DUST
(Superseded to 596840301)

$33.99

$

In Stock, Qty 12

0

30

Husqvarna 539114582

SPACER - IDLER

$27.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539127099

WASHER-1.06IDX1.63ODX.06

$5.99

$

In Stock, only 1 left!

0

32

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, Qty 16

0

33

Husqvarna 525598201

PULLEY - 7" NARROW
(Superseded to 525598202)

$53.99

$

In Stock, only 1 left!

0

34

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 510019601

PULLEY IDLER, 6" NARROW
(Superseded to 597087101)

$65.99

$

In Stock, only 2 left!

0

36

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$21.99

$

In Stock, Qty 20+

0

37

Husqvarna 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD
(Superseded to 510022302)

$7.49

$

In Stock, Qty 9

0

38

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 510254501

DUST SHIELD
(Superseded to 510254502)

$4.99

$

In Stock, Qty 6

0

40

Husqvarna 522023401

WASHER, 3/8 THICK

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

43

Husqvarna 539111844

WASHER, HEAVY

$

$

Not available

44

Husqvarna 525828901

HFFS 1/2-13 X 3 GD 5 ZD
(Superseded to 596789601)

$5.99

$

Usually ships in 3-10 days

0

45

Husqvarna 574196401

TUBE, ROLLER AXLE
(Superseded to 574196402)

$7.49

$

In Stock, Qty 11

0

46

Husqvarna 544185401

ROLLER
(Superseded to 539002472)

$

$

Not available

47

Husqvarna 574437301

DECAL, BELT ROUTING

$3.99

$

In Stock, only 1 left!

0

48

Husqvarna 539105746

DECAL, EURO SEVERING

$3.49

$

In Stock, only 2 left!

0

49

Husqvarna 525464402

IDLER.ARM.BLACK

$89.99

$

Usually ships in 3-10 days

0

50

Husqvarna 522729701

BEARING, IDLER PIVOT

$9.99

$

In Stock, only 2 left!

0

51

Husqvarna 539112050

BEARING, BALL

$7.49

$

In Stock, Qty 20+

0

52

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 10

0

53

Husqvarna 539106504

SPINDLE WASHER
(Superseded to 596770301)

$5.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539101686

HCS 3/8-16 X 4-1/2 GR 8 ZD
(Superseded to 596435401)

$3.99

$

In Stock, only 1 left!

0

55

Husqvarna 510263701

BEARING, IDLER ARM

$7.49

$

In Stock, Qty 9

0

56

Husqvarna 510015101

PULLEY - IDLER 7"
(Superseded to 510015102)

$77.99

$

In Stock, only 3 left!

0

57

Husqvarna 574202001

EYE BOLT, 3/8 X 4"
(Superseded to 574202002)

$7.49

$

Usually ships in 3-10 days

0

58

Husqvarna 525465601

SPACER, IDLER PIVOT

$11.99

$

In Stock, only 2 left!

0

59

Husqvarna 525310901

SPRING, TORSION, IDLER

$113.99

$

Usually ships in 3-10 days

0

60

Husqvarna 574262201

BELT KEEPER
(Superseded to 574262202)

$8.49

$

Usually ships in 3-10 days

0

61

Husqvarna 574262102

BELT.GUIDE.BLACK

$43.99

$

In Stock, only 2 left!

0

62

Husqvarna 539128101

CARRIAGE BOLT 3/8-16 X
(Superseded to 596337801)

$5.99

$

In Stock, Qty 20+

0
