966656601 - Husqvarna Grass Catcher for P-ZT48 Mower REPAIR PARTS 3 Parts Diagram

Grass Catcher for P-ZT48 Mower

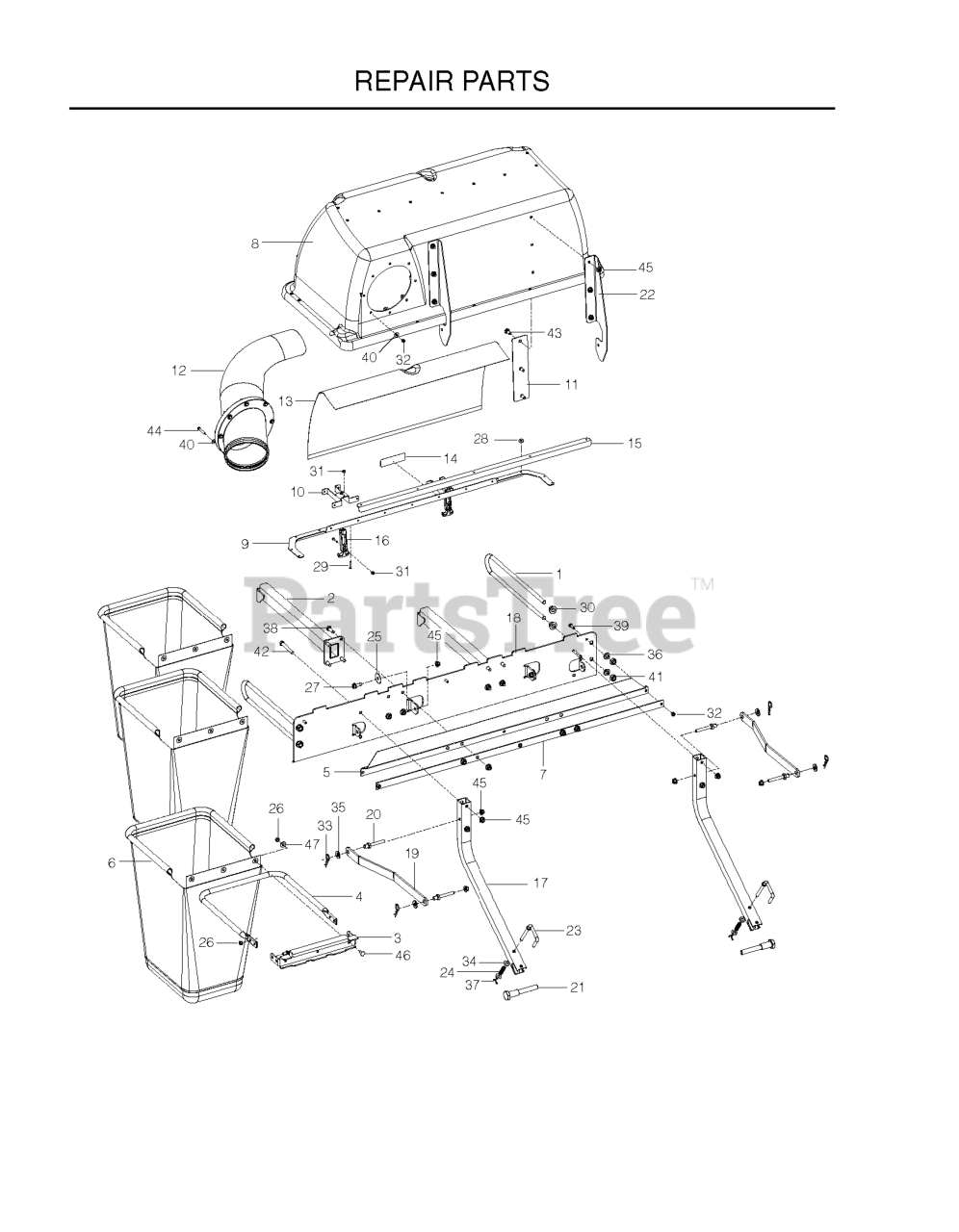

REPAIR PARTS 3 Parts Diagram

  • Title

36

Husqvarna 539990254

WASHER 1/2" SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

3

Husqvarna 575467702

HANGER, BAG, BLK

$66.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 525816001

SPRING, COMPRESSION

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539111187

NUT 1/2-13 HEX

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 525445301

BOLT, PIVOT

$

$

Not available

2

Husqvarna 539111162

SUPPORT ARM WELDMENT

$157.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539111175

SUPPORT, DRAW LATCH

$36.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539111166

TUBE BAG FRAME

$84.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

47

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

44

Husqvarna 539991003

BOLT 1/4C X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539111174

HOOD SUPPORT

$78.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539110033

WASHER, #10 MACH SCR BLK OX

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539111186

SCR, #10-24 X 1-1/8

$2.49

$

Usually ships in 3-10 days

0

22

Husqvarna 525445402

BRACKET, HINGE, BLK

$34.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

In Stock, only 4 left!

0

43

Husqvarna 539990645

RHSNB 3/8C X 1

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539102998

WASHER, FRICTION

$8.99

$

In Stock, Qty 10

0

19

Husqvarna 525444902

STRAP, BLK

$42.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

5

Husqvarna 539111167

SEAL, RUBBER

$27.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539990625

NUT 1/2 HEX JAM

$3.99

$

In Stock, Qty 15

0

35

Husqvarna 539990250

WASHER 1/2" FLAT

$1.49

$

Usually ships in 3-10 days

0

34

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 525815901

PIN, RETENTION

$24.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539111172

HOOD

$241.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539111300

BAG, SMALL

$182.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539111158

SUPPORT, OUTER

$

$

Not available

12

Husqvarna 539111182

INLET TUB

$109.99

$

Usually ships in 3-10 days

0

20

Husqvarna 525445001

PIN, MOUNT

$34.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.49

$

Usually ships in 3-10 days

0

13

Husqvarna 539111183

MESH, POLY DIAMOND

$24.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539107476

BOLT 3/8-16 X 1.0

$6.49

$

In Stock, only 3 left!

0

33

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539111260

DECAL, VENTILATION

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 525444502

TUBE, HITCH, BLK

$121.99

$

Usually ships in 3-10 days

0

18

Husqvarna 525444702

PLATE, MOUNT, BLK

$145.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539111171

SEAL STRAP

$27.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539111181

MOUNT PLATE

$48.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 575486802

SUPPORT, HOOD-RR, BLK

$

$

Not available

37

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

16

Husqvarna 539200478

DRAW LATCH, FLEXIBLE T-HANDLE
(Superseded to 540200478)

$34.99

$

Usually ships in 3-10 days

0
