966792801 - Husqvarna Grass Catcher (2012-05) FAN Parts Diagram

Grass Catcher

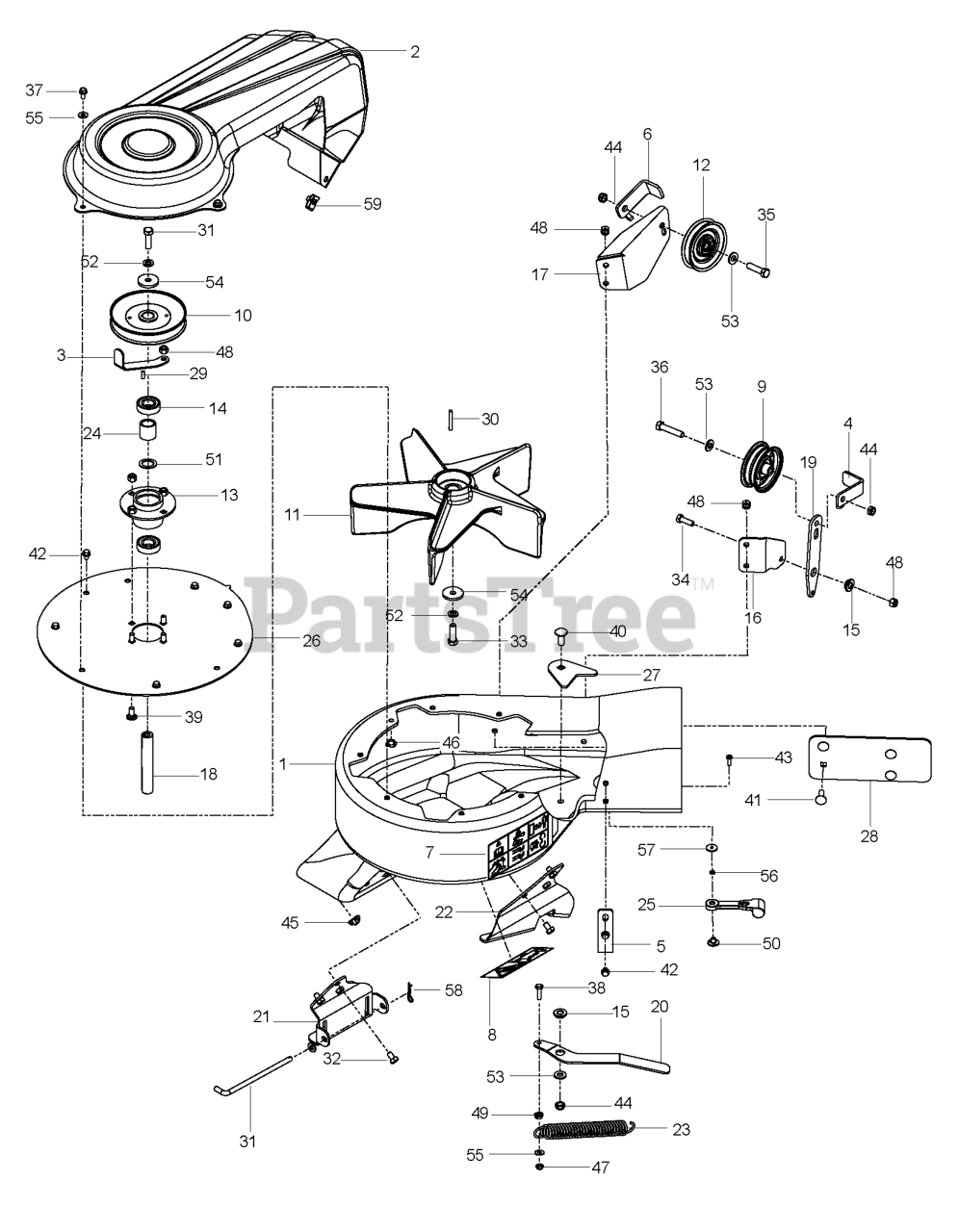

FAN Parts Diagram

  • Title

36

Husqvarna 539976949

BOLT, HCS 3/8-16X1-3/4
(Superseded to 596918101)

$3.49

$

In Stock, only 3 left!

0

30

Husqvarna 539125229

KEY-SQ. 3/16 X 1 1/2

$4.99

$

In Stock, only 2 left!

0

46

Husqvarna 539130314

NUT 1/4-20 TEE

$4.99

$

In Stock, Qty 18

0

41

Husqvarna 872140508

BOLT
(Superseded to 595901501)

$4.99

$

In Stock, Qty 14

0

8

Husqvarna 539106741

EURO DECAL, IMPELLER

$6.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539132122

PLATE.BACKING.BLACK

$22.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539130323

SPACER

$48.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539130344

BLOWER.HOUSING.W/DECALS.COLLEC

$432.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 596031501)

$2.49

$

In Stock, Qty 20+

0

55

Husqvarna 819091016

WASHER
(Superseded to 596582301)

$3.49

$

In Stock, only 2 left!

0

35

Husqvarna 874780624

BOLT
(Superseded to 874930624)

$9.49

$

In Stock, Qty 8

0

59

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, only 2 left!

0

53

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

54

Husqvarna 539110323

WASHER, HARDENED
(Superseded to 532140296)

$6.99

$

In Stock, Qty 16

0

29

Husqvarna 539115667

KEY, 3/16 X 1/2

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 579150802

PULLEY, IDLER, BACKSIDE

$39.99

$

In Stock, only 2 left!

0

7

Husqvarna 539105785

DECAL, EURO WARNING

$11.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539132124

PLATE, BACKING

$13.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539976988

HAIRPIN #2
(Superseded to 596580601)

$4.99

$

In Stock, only 3 left!

0

45

Husqvarna 539130313

NUT 5/16-18 TEE

$3.49

$

In Stock, Qty 8

0

40

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 3 left!

0

10

Husqvarna 539130324

PULLEY

$53.99

$

In Stock, only 4 left!

0

49

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR
(Superseded to 596041001)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539130301

BUSHING

$

$

Not available

34

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00
(Superseded to 596580801)

$3.49

$

In Stock, only 2 left!

0

13

Husqvarna 539130295

HUB, BEARING

$85.99

$

Usually ships in 3-10 days

0

17

Husqvarna 579137502

MOUNT IDLER LOWER

$15.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539109552

WASHER - 3/16 LOCK ZD

$

$

Not available

18

Husqvarna 539130316

SHAFT, IMPELLER

$74.99

$

In Stock, only 3 left!

0

2

Husqvarna 539130293

COVER, BELT

$74.99

$

In Stock, only 2 left!

0

38

Husqvarna 874780414

BOLT
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

43

Husqvarna 871081010

SCREW
(Superseded to 596039001)

$3.49

$

In Stock, only 3 left!

0

37

Husqvarna 817490408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, Qty 10

0

48

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539108084

WASHER

$3.49

$

In Stock, Qty 8

0

39

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

42

Husqvarna 539990302

HWST 1/4C X 3/8
(Superseded to 596582701)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539130292

IMPELLER.COLLECTION.BLOWER.BLA

$113.99

$

In Stock, only 2 left!

0

21

Husqvarna 539130339

BRKT, MT, FRONT

$62.99

$

Usually ships in 3-10 days

0

6

Husqvarna 579137702

KEEPER FLAT LOWER BLACK

$

$

Not available

22

Husqvarna 539130340

BRKT, MT, REAR

$17.99

$

Usually ships in 3-10 days

0

52

Husqvarna 810030600

LOCKWASHER
(Superseded to 539990118)

$3.49

$

In Stock, Qty 20+

0

4

Husqvarna 579137602

KEEPER FLAT UPPER BLK

$17.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539101977

SPRING

$13.99

$

In Stock, only 3 left!

0

20

Husqvarna 539130338

ARM, TENSION

$

$

Not available

33

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539130346

KEEPER

$

$

Not available

31

Husqvarna 539130317

PIN

$22.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539113683

V-IDLER

$66.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539108089

NUT 10-24 WELD PLATED
(Superseded to 596987401)

$3.49

$

In Stock, Qty 13

0

3

Husqvarna 539131085

KEEPER, BELT, OUTER

$5.99

$

Usually ships in 3-10 days

0

32

Husqvarna 874780508

HCS 5/16-18 X 1/2 GR 5 ZD
(Superseded to 596433301)

$3.49

$

In Stock, Qty 12

0

51

Husqvarna 539910935

WASHER .787 X 1.125 X .06

$4.99

$

In Stock, only 2 left!

0

26

Husqvarna 539130341

PLATE, OUTER

$74.99

$

In Stock, only 1 left!

0

14

Husqvarna 539130296

BEARING

$7.99

$

In Stock, only 2 left!

0

19

Husqvarna 579137302

ARM IDLER

$

$

Not available

44

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.49

$

In Stock, only 1 left!

0

16

Husqvarna 579137402

MOUNT.IDLER.UPPER

$

$

Not available

25

Husqvarna 532109808

LATCH.HOOD.

$4.99

$

In Stock, Qty 18

0
