966793002 - Husqvarna Grass Catcher (2013-04) ACCESSORIES Parts Diagram

Grass Catcher

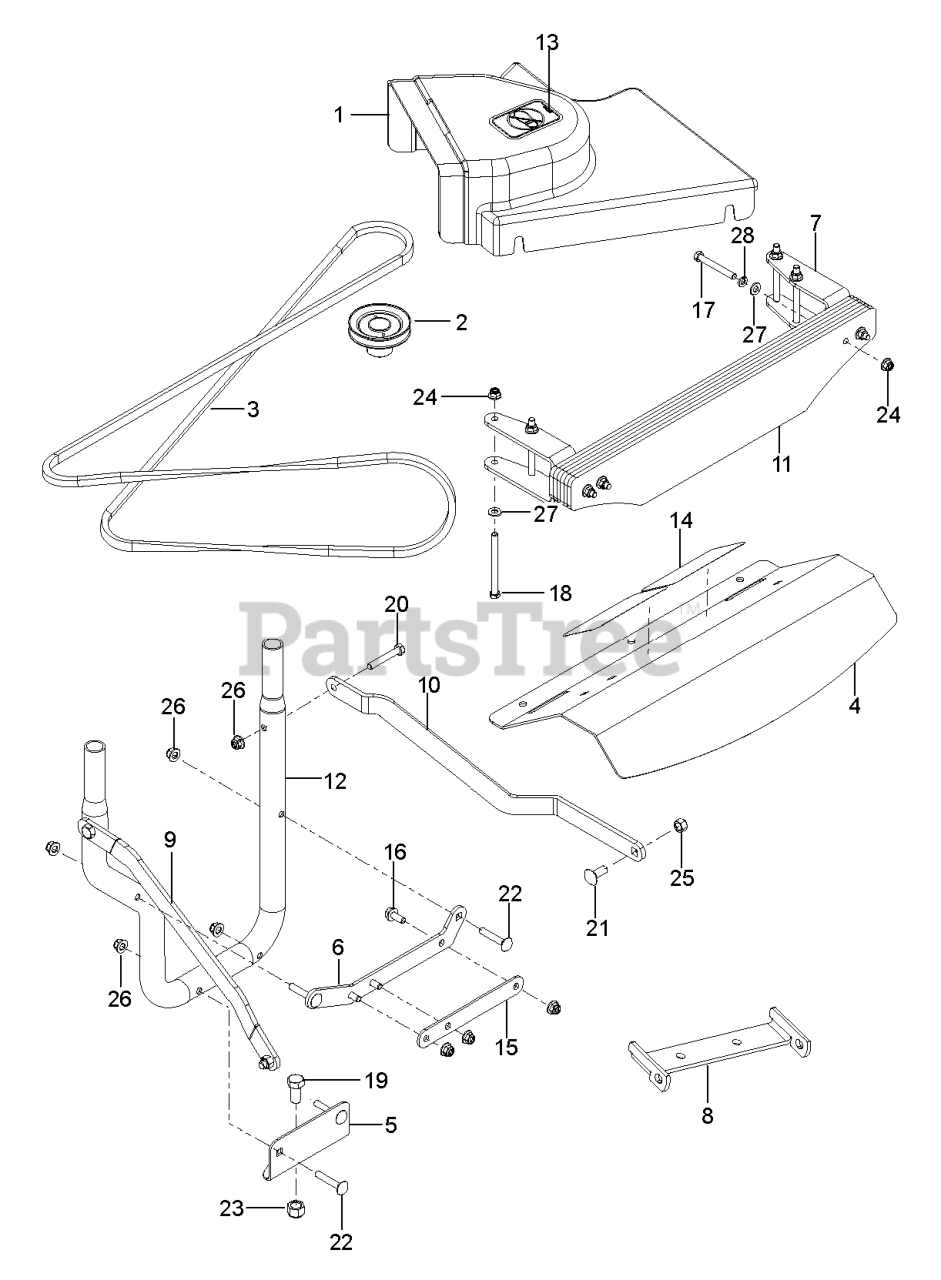

ACCESSORIES Parts Diagram

  • Title

6

Husqvarna 576221402

BRKT, SUPPORT, BLK

$31.99

$

In Stock, only 1 left!

0

Husqvarna 539130321

PULLEY, 61"

$119.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539131091

MOUNT.TUBE.COLLECTIONS

$179.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539132198

STRAP.RT.BLACK

$41.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990861

RHSNB 5/16-18X1 3/4

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

28

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 584412002

FOOTPLATE.ORANGE.2013
(Superseded to 584412003)

$131.99

$

Usually ships in 3-10 days

0

7

Husqvarna 522989002

BRACKET, WEIGHT, BLK

$39.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539976937

HCS 5/16-18X2

$3.99

$

In Stock, only 2 left!

0

17

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 11

0

19

Husqvarna 539990646

HHCS 1/2-13 X 1
(Superseded to 596583601)

$

$

Not available

5

Husqvarna 539132192

MOUNT, HITCH, LOWER

$23.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

25

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 539130347

BELT, 48/52"

$107.99

$

In Stock, only 2 left!

0

18

Husqvarna 539102334

TAPBOLT 3/8C X 4 1/2

$

$

Not available

11

Husqvarna 539113232

WEIGHT PLATE, BLACK

$131.99

$

Usually ships in 3-10 days

0

8

Husqvarna 581606104

BRACKET, CHUTE BLK

$27.99

$

In Stock, only 2 left!

0

1

Husqvarna 539130307

SHIELD, BELT, 52"

$23.99

$

Usually ships in 3-10 days

0

Husqvarna 539130348

BELT, 61"

$155.99

$

Usually ships in 3-10 days

0

24

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 9

0

21

Husqvarna 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 575953302

STRAP.LH.BLACK

$39.99

$

In Stock, only 1 left!

0

14

Husqvarna 539121322

FOOT PAD

$3.99

$

In Stock, only 3 left!

0

23

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

Husqvarna 539130308

SHIELD, BELT, 61"

$35.99

$

Usually ships in 3-10 days

0

15

Husqvarna 576221502

SPACER, PLATE, BLK

$17.99

$

In Stock, only 1 left!

0

13

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, Qty 10

0

2

Husqvarna 539130320

PULLEY, 52"

$83.99

$

In Stock, only 2 left!

0
