967004601 - Husqvarna Grass Catcher (2012-10) HOOD Parts Diagram

Grass Catcher

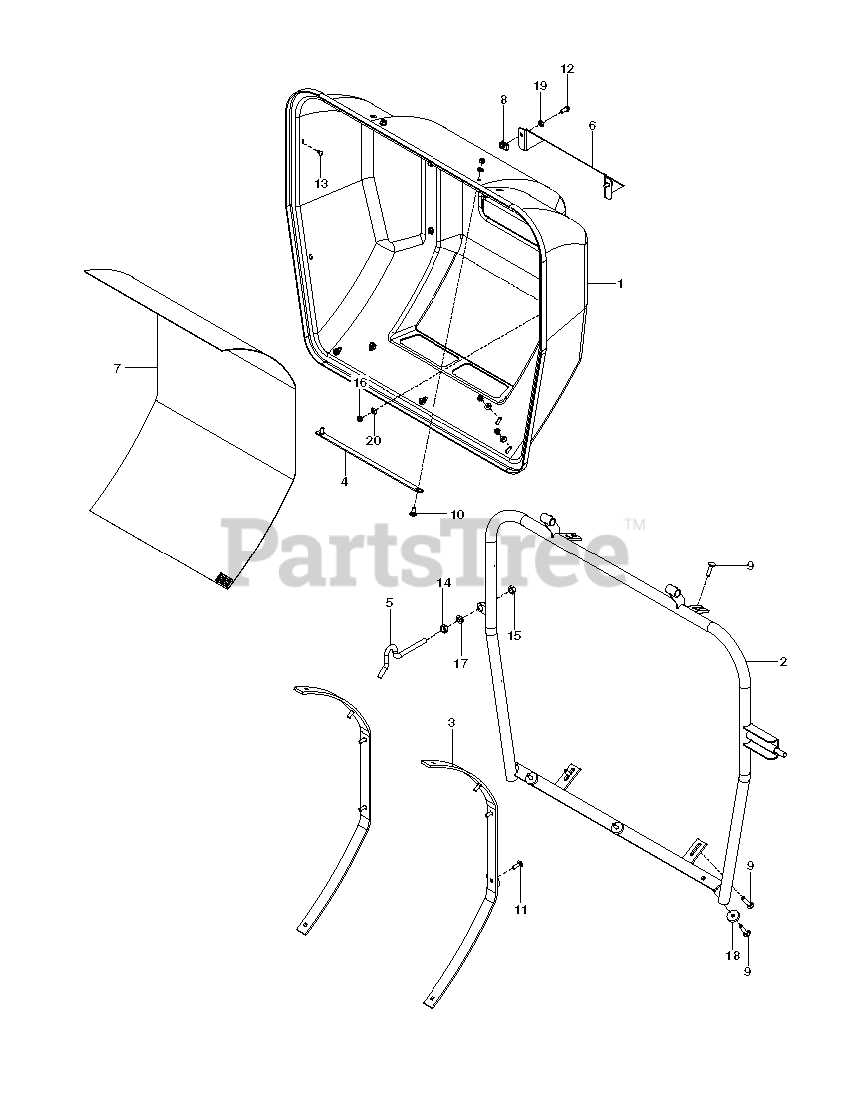

HOOD Parts Diagram

  • Title

13

Husqvarna 539119413

LARGE DOME RIVET

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 539119396

STRAP

$85.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539115609

NUT, 1/2-13 THIN PROF NYL
(Superseded to 539108010)

$3.49

$

In Stock, only 2 left!

0

19

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

10

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4
(Superseded to 596671401)

$4.99

$

In Stock, Qty 19

0

2

Husqvarna 539117987

REAR FRAME WLDT.

$319.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539117543

CLAMSHELL VENT

$34.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539990625

NUT 1/2 HEX JAM
(Superseded to 596433401)

$3.49

$

In Stock, Qty 8

0

12

Husqvarna 539990206

SCREW 5/16C X 1 HEX CAP
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 539115789

WASHER NYLON

$7.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539119458

STRAP

$20.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539119377

CLAM SHELL (BACK)
(Superseded to 580978401)

$262.99

$

Usually ships in 3-10 days

0

7

Husqvarna 581532901

SCREEN.VENT

$148.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539115677

CLIP NUT 5/16-18

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539990254

WASHER 1/2" SPLIT LOCK

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539119367

HOOK LATCH

$7.99

$

Usually ships in 3-10 days

0
