967322701 - Husqvarna Grass Catcher (2014-06) FRAME Parts Diagram

Grass Catcher

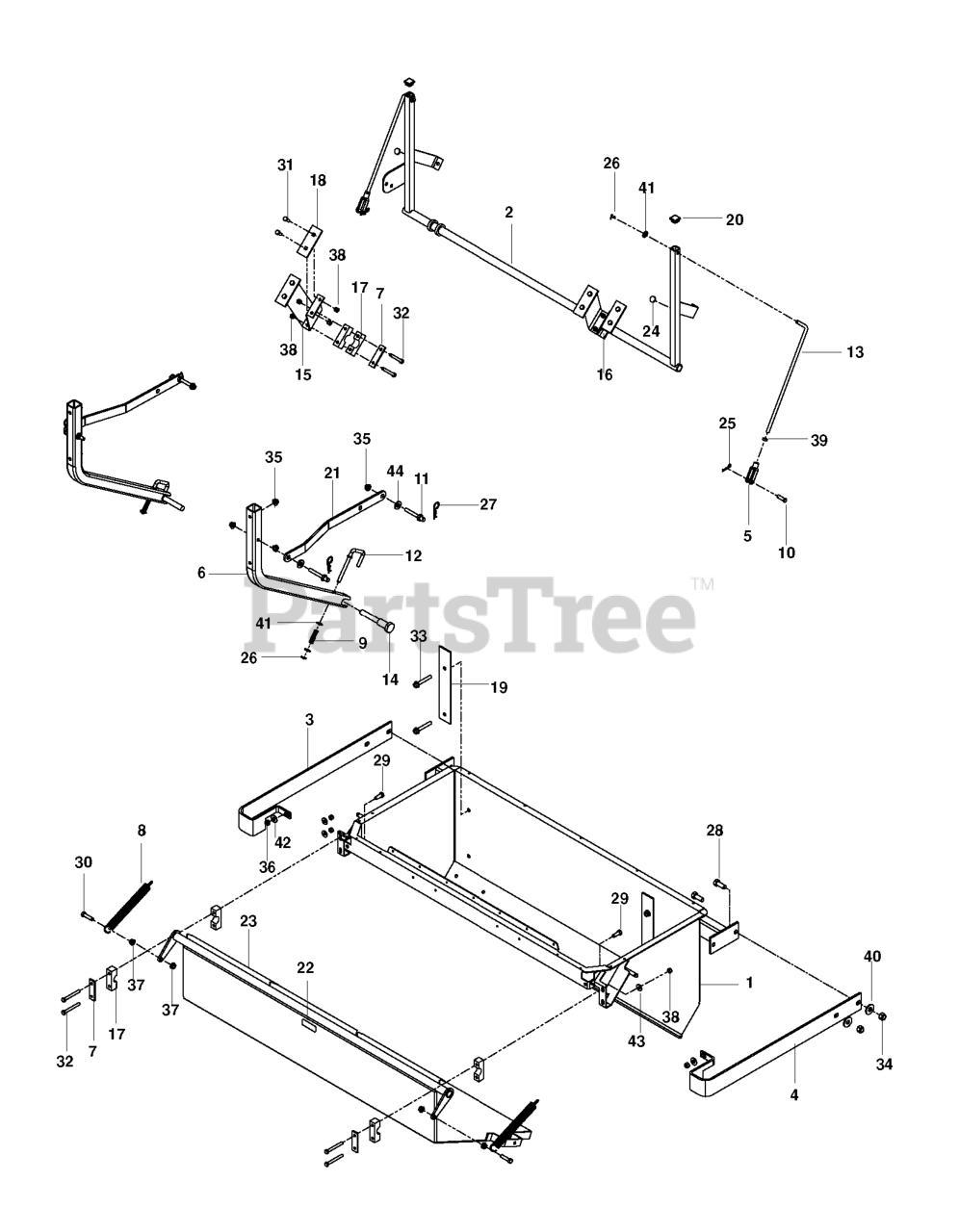

FRAME Parts Diagram

  • Title

32

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 10

0

39

Husqvarna 539108732

NUT 3/8-24 JAM
(Superseded to 596029901)

$3.99

$

In Stock, only 1 left!

0

42

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 578916202

BELLCRANK.WELDMENT

Note: RH

$359.99

$

Usually ships in 3-10 days

0

25

Husqvarna 578348402

STRAP BLACK

$47.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539111260

DECAL, VENTILATION

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 539113750

GUARD - L.H.

$101.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539113722

ROD.DOOR.COLECTION

$17.99

$

Usually ships in 3-10 days

0

2

Husqvarna 578348602

PLATE.MOUNTING.PNT

$7.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539107315

SPRING BAGGER

$13.99

$

Usually ships in 3-10 days

0

8

Husqvarna 578348502

TUBE.HITCH.BLK

$215.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539108369

HCS 1/2-13 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539113722

ROD.DOOR.COLECTION

$17.99

$

Usually ships in 3-10 days

0

19

Husqvarna 525445301

BOLT, PIVOT

$33.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 6

0

35

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, only 4 left!

0

3

Husqvarna 578902502

HOPPER WLDT BLK

Note: LH

$718.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 9

0

31

Husqvarna 539990206

SCREW 5/16C X 1 HEX CAP
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 525816001

SPRING, COMPRESSION

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

In Stock, Qty 10

0

37

Husqvarna 539990613

NUT 3/8C WHIZ
(Superseded to 596583501)

$3.99

$

In Stock, Qty 10

0

12

Husqvarna 539109232

PIN CLEVIS, 3/8 X 1 1/4
(Superseded to 599260701)

$11.99

$

Usually ships in 3-10 days

0

20

Husqvarna 578349102

BRACKET, SUPPORT LEFT BLK

$65.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539113747

WELDMENT - DOOR

$1077.99

$

Usually ships in 3-10 days

0

44

Husqvarna 819171713

WASHER STEEL

$3.99

$

In Stock, Qty 6

0

1

Husqvarna 578349002

PLATE, BLK

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 521815901

NEEDS DESCRIPTION

$

$

Currently unavailable

21

Husqvarna 578348702

BRACKET, SUPPORT RIGHT BLK

$71.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539976989

HAIRPIN #4
(Superseded to 596273101)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

16

Husqvarna 539976988

HAIRPIN #2
(Superseded to 596580601)

$4.99

$

In Stock, Qty 9

0

30

Husqvarna 539990655

HCS 3/8C X 1 1/2

$

$

Not available

38

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$14.99

$

In Stock, only 3 left!

0

6

Husqvarna 539113751

GUARD - R.H.

$89.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 539109554

WASH USS FLAT 1/2
(Superseded to 595316401)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 539977465

YOKE-3/8-24 PLTD
(Superseded to 596739901)

$35.99

$

In Stock, Qty 11

0

33

Husqvarna 539133006

HHFS 3/8-16 X 2.5 GR 5 ZD
(Superseded to 596581901)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539113758

PLUG - SQUARE TUBE

$3.99

$

Usually ships in 3-10 days

0
