975-00 - Paramount Edger, Electric EDGER/BRUSHCUTTER ASSEMBLY Parts Diagram

Edger, Electric

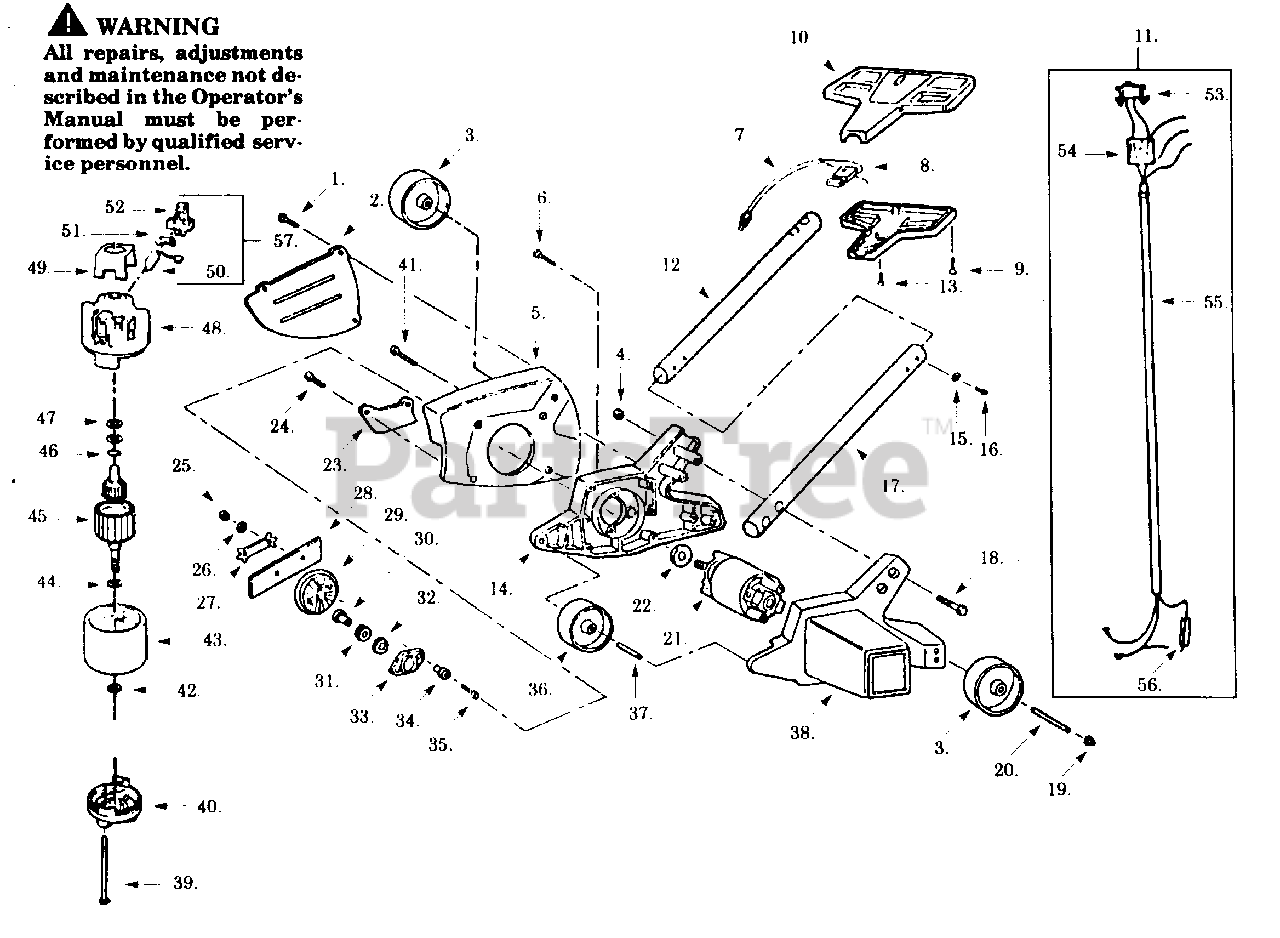

EDGER/BRUSHCUTTER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534193800

Screw

$

$

Not available

2

Poulan 534323405

Side Guard

$

$

Not available

3

Poulan 534240003

Wheel

$

$

Not available

4

Poulan 534235901

Locknut
(Superseded to 530403094)

$

$

Not available

5

Poulan 534346702

Guard Housing

$

$

Not available

6

Poulan 534136401

Screw

$

$

Not available

7

Poulan 534234500

Power Cord

$

$

Not available

8

Poulan 534193004

Trigger Switch

$

$

Not available

9

Poulan 534184700

Screw

$

$

Not available

10

Poulan 534234245

Handle Set

$

$

Not available

11

Poulan 534336403

Harness Ass'y.

$

$

Not available

12

Poulan 534222503

Upper Handle Tube

$

$

Not available

13

Poulan 534222400

Screw

$

$

Not available

14

Poulan 534323202

Frame

$

$

Not available

15

Poulan 534713000

Lockwasher

$

$

Not available

16

Poulan 534970001

Screw

$

$

Not available

17

Poulan 534223200

Lower Handle Tube

$

$

Not available

18

Poulan 534174501

Screw

$

$

Not available

19

Poulan 534121000

Push Nut

$7.99

$

Usually ships in 3-10 days

0

20

Poulan 534781011

Axle

$

$

Not available

21

Poulan 534225022

Motor

$

$

Not available

22

Poulan 534136100

Thrust Washer

$

$

Not available

23

Poulan 534323500

Edge Guide

$

$

Not available

24

Poulan 534222403

Screw

$

$

Not available

25

Poulan 534136200

Nut

$

$

Not available

26

Poulan 534136600

Lockwasher

$

$

Not available

27

Poulan 534135700

Lock Strap

$3.49

$

Usually ships in 3-10 days

0

28

Poulan 952710529

Blade

$14.99

$

Usually ships in 3-10 days

0

29

Poulan 534135305

Fan

$

$

Not available

30

Poulan 534135500

Clutch Sleeve

$

$

Not available

31

Poulan 534238900

Load Spring Washer

$

$

Not available

32

Poulan 534136300

Washer

$

$

Not available

33

Poulan 534135400

Clutch Plate

$

$

Not available

34

Poulan 534135605

Sleeve

$

$

Not available

35

Poulan 534135900

Bolt

$

$

Not available

36

Poulan 534730001

Wheel

$

$

Not available

37

Poulan 534740002

Axle

$

$

Not available

38

Poulan 534323302

Motor Cover

$

$

Not available

39

Poulan 534228700

Bolt

$

$

Not available

40

Poulan 534207101

Endbell (Output)

$

$

Not available

41

Poulan 534222401

Screw

$

$

Not available

42

Poulan 534238903

Washer

$

$

Not available

43

Poulan 534227001

Field Ass'y.

$

$

Not available

44

Poulan 534246700

Retainer Ring

$

$

Not available

45

Poulan 534225120

Armature

$

$

Not available

46

Poulan 534747002

Retainer Ring

$

$

Not available

47

Poulan 534228800

Washer

$

$

Not available

48

Poulan 534227501

Endbell (Brush)

$

$

Not available

49

Poulan 534226000

Insulator

$

$

Not available

50

Poulan 534227800

Brush

$

$

Not available

51

Poulan 534228000

Brush Spring

$

$

Not available

52

Poulan 534227700

Brush Holder

$

$

Not available

53

Poulan 534332500

Power Switch

$

$

Not available

54

Poulan 534402800

P.C. Bridge Kit

$

$

Not available

55

Poulan 534336403

Harness

$

$

Not available

56

Poulan 534134500

Resistor

$

$

Not available

57

Poulan 534450400

Brush Kit (Incl. 50,51,52)

Note: Not Shown.

$

$

Not available

58

Poulan 534883580

Operator Manual

Note: Not Shown.

$

$

Not available
