9753-0 - Generac XL 4,000 Watt Portable Generator Control Panel Parts Diagram

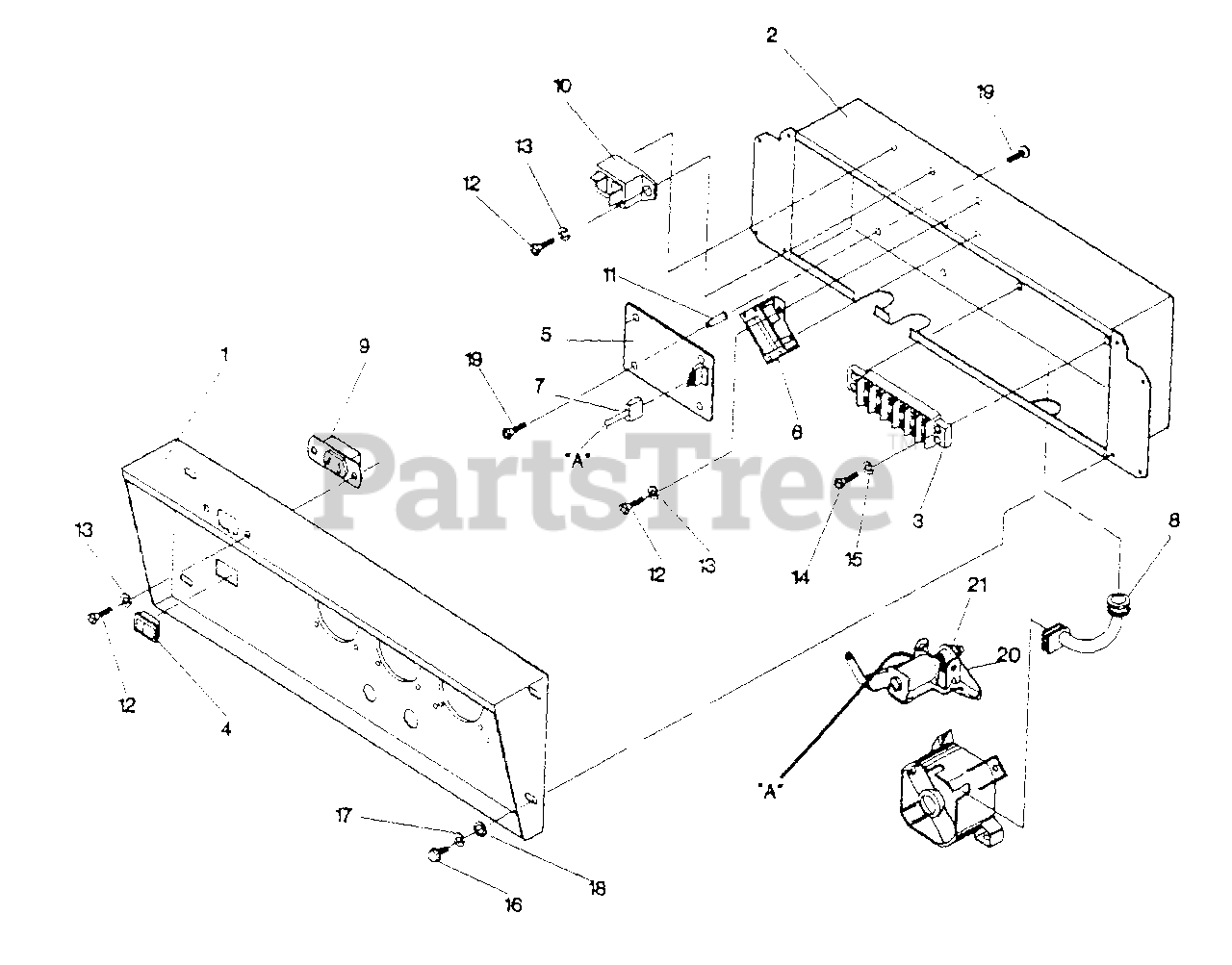

XL 4,000 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 87781

Control Panel
(Superseded to 87781GS)

$

$

Not available

2

Briggs & Stratton 87782

Control Panel Box

$

$

Currently unavailable

3

Briggs & Stratton 46357

Terminal Block
(Superseded to 7046357YP)

$14.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 87968

Idle Control Switch
(Superseded to 87968GS)

$7.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 83970B

System Control Board
(Superseded to 83970BGS)

$200.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 84028

Idle Control Transformer
(Superseded to 84028GS)

$47.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 84335

Wire Harness Assembly
(Superseded to 84335GS)

$39.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 84134

Rubber Grommet Connector
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 66822

12-Volt DC Outlet and Bracket
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 87962

12V, 10-amp Circuit Breaker
(Superseded to 87962GS)

$29.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 64525

3/4" Hex Stand-off

$

$

Currently unavailable

12

Briggs & Stratton 43181

M3-0.5 x 10mm Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 43182

M3 Lock Washer
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 76055

M4-0.7 x 16mm Screw

$

$

Not available

15

Briggs & Stratton 22264

M4 Lock Washer

$

$

Not available

16

Briggs & Stratton 52749

M5-0.8 x 12mm Screw

$

$

Currently unavailable

17

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 23897

M5 Flat Washer
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 64526

No. 6-32 x 3/8" Screw

$

$

Not available

20

Briggs & Stratton 83781

Bracket

$

$

Currently unavailable

21

Briggs & Stratton 66311

M8-1.25 Hex Jam Nut

$

$

Currently unavailable
