9761-0 - Generac CP 6,000 PSI Pressure Washer Pressure Washer And Cradle No. 91855 Parts Diagram

CP 6,000 PSI Pressure Washer

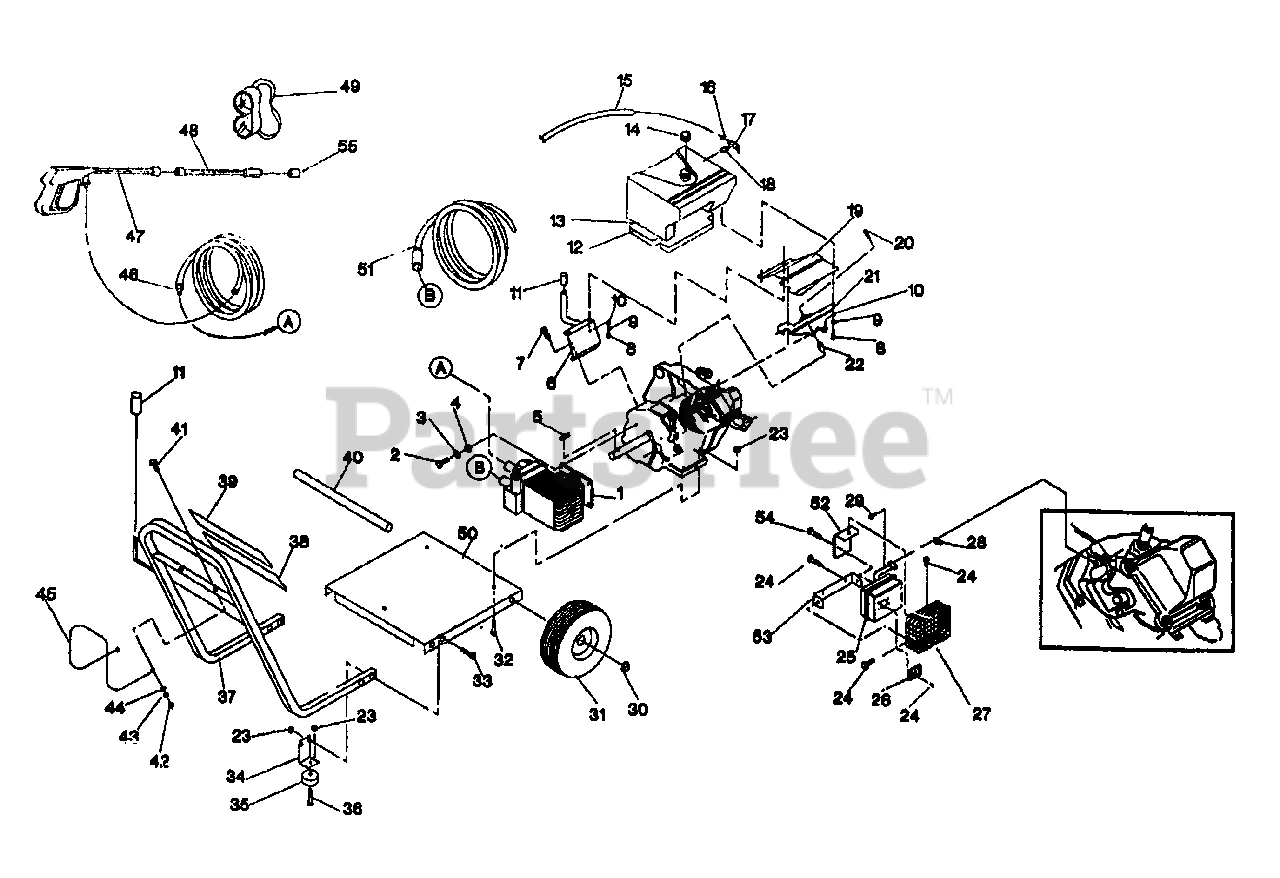

Pressure Washer And Cradle No. 91855 Parts Diagram

  • Title

1

Briggs & Stratton 92293

Pump - 3 GPM at 2000 PSI
(Superseded to 92293GS)

$502.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 22147

5/16"-24 x 1" Hex Head Capscrew
(Superseded to 22147GS)

$3.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 22129

5/16" Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 22145

3/16" Flat Washer

$

$

Not available

5

Briggs & Stratton 89241

3/16" x 1/4" Key
(Superseded to 89241GS)

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 92416

Fuel Tank Bracket

$

$

Currently unavailable

7

Briggs & Stratton 83512

M8 x 15mm Taptite Screw
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 26983

1/4"-20 x 3/4" Hex Head Capscrew

$

$

Not available

9

Briggs & Stratton 22097

1/4" Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

10

22473

1/4" Flat Washer

$

$

Not available

11

Briggs & Stratton 92528

1/4" x 1" Vinyl Cap

$

$

Currently unavailable

12

Briggs & Stratton 90562

Fuel Tank Insulation

$

$

Not available

13

Briggs & Stratton 89620

4 Liter Fuel Tank

$

$

Currently unavailable

14

Briggs & Stratton 90878

Fuel Tank Cap
(Superseded to 846987)

$21.99

$

In Stock, Qty 6

0

15

Briggs & Stratton 82580

3/16" I.D. x 11" Fuel Line

$

$

Currently unavailable

16

Briggs & Stratton 48031G

Hose Clamp
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 80270

Fuel Shut-off Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

18

Briggs & Stratton 78299

Fuel Valve Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

19

Briggs & Stratton 89896

Fuel Tank Shield

$

$

Currently unavailable

20

Briggs & Stratton 91225

M8 x 35mm Screw

$

$

Not available

21

Briggs & Stratton 90880

Fuel Tank Bracket
(Superseded to 1960547SM)

$4.49

$

In Stock, Qty 6

0

22

Briggs & Stratton 91224

3/8" I.D. Spacer (20mm long)

$

$

Currently unavailable

23

Briggs & Stratton 52858

M8 Hex Locking Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

24

Briggs & Stratton 90299

MS x 10mm Extrudite Screw

$

$

Not available

25

Briggs & Stratton 88683

Muffler Assembly

$

$

Currently unavailable

26

Briggs & Stratton 83083

Spark Arrestor Screen
(Superseded to 83083GS)

$9.49

$

In Stock, Qty 8

0

27

Briggs & Stratton 89712

Muffler Guard

$

$

Currently unavailable

28

Briggs & Stratton 80314

Exhaust Gasket
(Superseded to 80314GS)

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 40976

MS x 20mm Socket Head Capscrew

$

$

Not available

30

Briggs & Stratton 75402

1/2" I.D, Push Nut
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

31

Briggs & Stratton 88521

10" dia. Wheel
(Superseded to 88521GS)

$93.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 39414

M8 x 35mm Hex Head Capscrew
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 57821

M8 x 40mm Hex Head Capscrew

$

$

Not available

34

Briggs & Stratton 92339

Support Leg
(Superseded to 92339GS)

$6.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 87841

Vibration Mount
(Superseded to 87841GS)

$3.99

$

In Stock, only 3 left!

0

36

Briggs & Stratton 39253

M8 x 20mm Hex Head Capscrew
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 92368

Guide Handle

$

$

Currently unavailable

38

Briggs & Stratton 87838

Decal - Starting Instructions

$

$

Currently unavailable

39

Briggs & Stratton 92415

Decal - 6000CP

$

$

Currently unavailable

40

Briggs & Stratton 92299

Wheel Axle

$

$

Currently unavailable

41

Briggs & Stratton 52618

M6 x 12mm Hex Head Capscrew
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 51716

MS Hex Nut
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 49226

MS Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 51713

MS Flat Washer
(Superseded to 51713GS)

$2.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 87816

Hose Support

$

$

Currently unavailable

46

Briggs & Stratton 91830

High Pressure Hose
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 91028

Spray Gun
(Superseded to 7091028YP)

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 91031

Wand

$

$

Not available

49

Briggs & Stratton 87815

Safety Goggles
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 92297

Mounting Base

$

$

Currently unavailable

51

Briggs & Stratton 92550

Plastic Chemical Injector Hose and Filter
(Superseded to 92550GS)

$67.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 92535

Muffler Support Bracket

$

$

Currently unavailable

53

Briggs & Stratton 90300

Muffler Support Bracket
(Superseded to 90300GS)

$11.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 56893

Screw
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

55

Briggs & Stratton 92661

Replacement Nozzle
(Superseded to 92661GS)

Note: (NOTE: Part number for Item 55 Indicates replacement part only. The nozzle for your pressure washer should come attached to wand)

$9.49

$

Usually ships in 2-12 days

0
