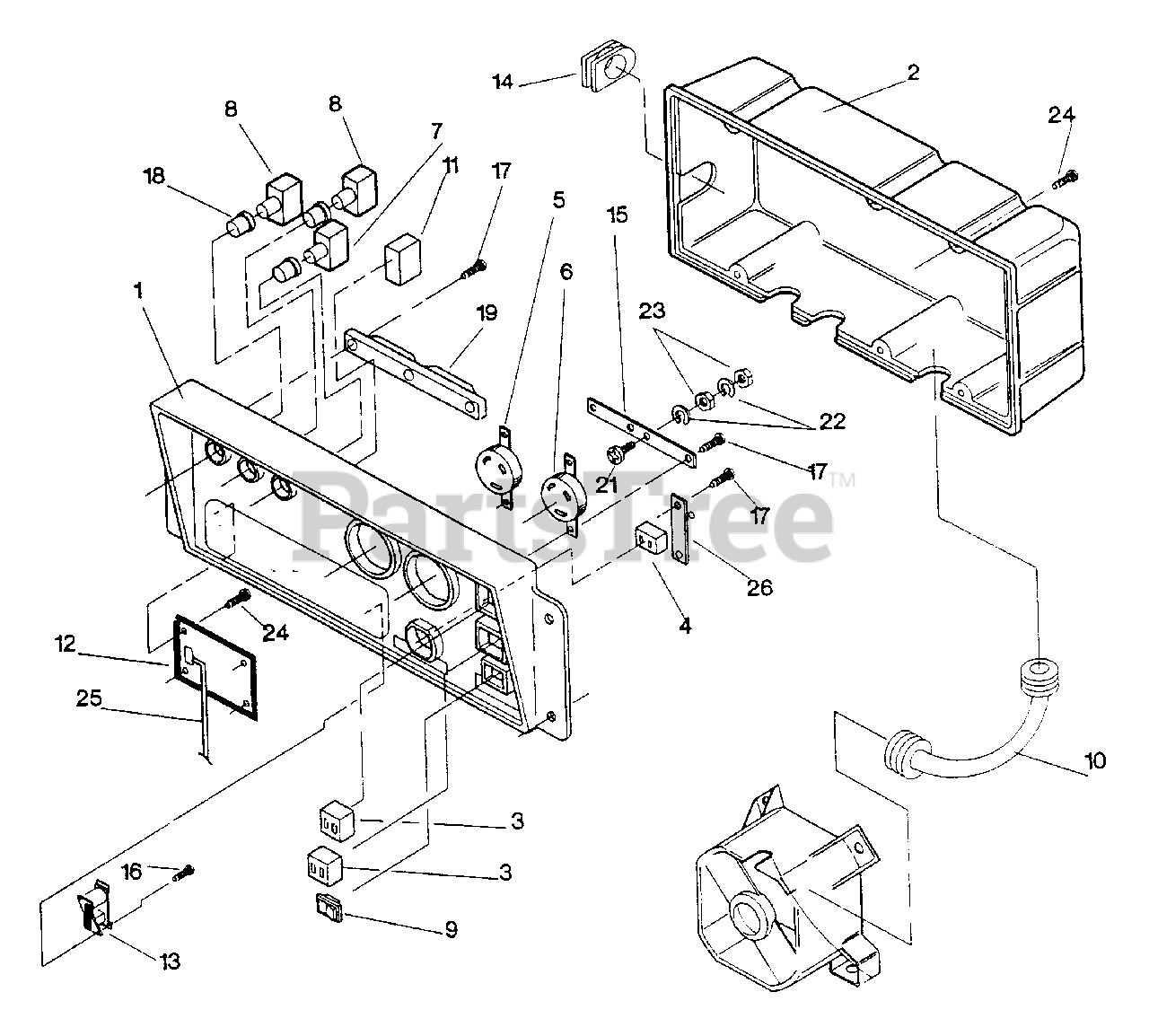

9777-0 - Generac XL 4,000 Watt Portable Generator Control Panel Parts Diagram

XL 4,000 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 83976

CONTROL PANEL
(Superseded to 83976GS)

$95.99

$

In Stock, only 2 left!

0

2

Briggs & Stratton 83975

CONTROL BOX
(Superseded to 83975GS)

$

$

Not available

3

Briggs & Stratton 66818

120 VOLTS AC OUTLET
(Superseded to 66818GS)

$25.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66821

12 VOLTS DC OUTLET
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 68867C

120/240 VOLTS, 20 AMP TWISTLOCK OUTLET
(Superseded to 68867CGS)

$19.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68868C

120 VOLTS, 30AMP TWISTLOCK OUTLET
(Superseded to 68868CGS)

$37.99

$

Usually ships in 2-12 days

0

7

75207A

30 A CIRCUIT BREAKER

$

$

Not available

8

Briggs & Stratton 75207G

AMP CIRCUIT BREAKER
(Superseded to 75207GGS)

$10.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 82538

ON/OFF ROCKER SWITCH
(Superseded to 82538GS)

$6.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 84134

RUBBER GROMMET
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 83514

10 A CIRCUIT BREAKER
(Superseded to 83514GS)

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 83970

SYSTEM CONTROL BRD.
(Superseded to 83970GS)

$

$

Not available

13

Briggs & Stratton 84028

IDLE CONTROL TRANSFORMER
(Superseded to 84028GS)

$47.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 67022

RUBBER GROMMET
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 85584

BUS BAR
(Superseded to 85584GS)

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 84534A

3.0 X 12MM SCREW

$

$

Currently unavailable

17

Briggs & Stratton 84534C

3.5 X 18MM SCREW

$

$

Currently unavailable

18

Briggs & Stratton 84198

CIRCUIT BREAKER SHIELD
(Superseded to 84198GS)

$4.49

$

In Stock, only 2 left!

0

19

Briggs & Stratton 84197

CIRCUIT BREAKER RETAINING BAR
(Superseded to 84197GS)

$3.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 75476

4.0 X 16MM SCREW
(Superseded to 75476GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22264

M4 LOCK WASHER

$

$

Not available

23

Briggs & Stratton 51715

M3 HEX NUT
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84534B

3.5 X 12MM SCREW

$

$

Currently unavailable

25

Briggs & Stratton 84335

WIRE HARNESS
(Superseded to 84335GS)

$39.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 82542

DC OUTLET RETAINING BAR
(Superseded to 82542GS)

$1.99

$

Usually ships in 2-12 days

0
