9777-3 - Generac XL 4,000 Watt Portable Generator Control Panel Parts Diagram

XL 4,000 Watt Portable Generator

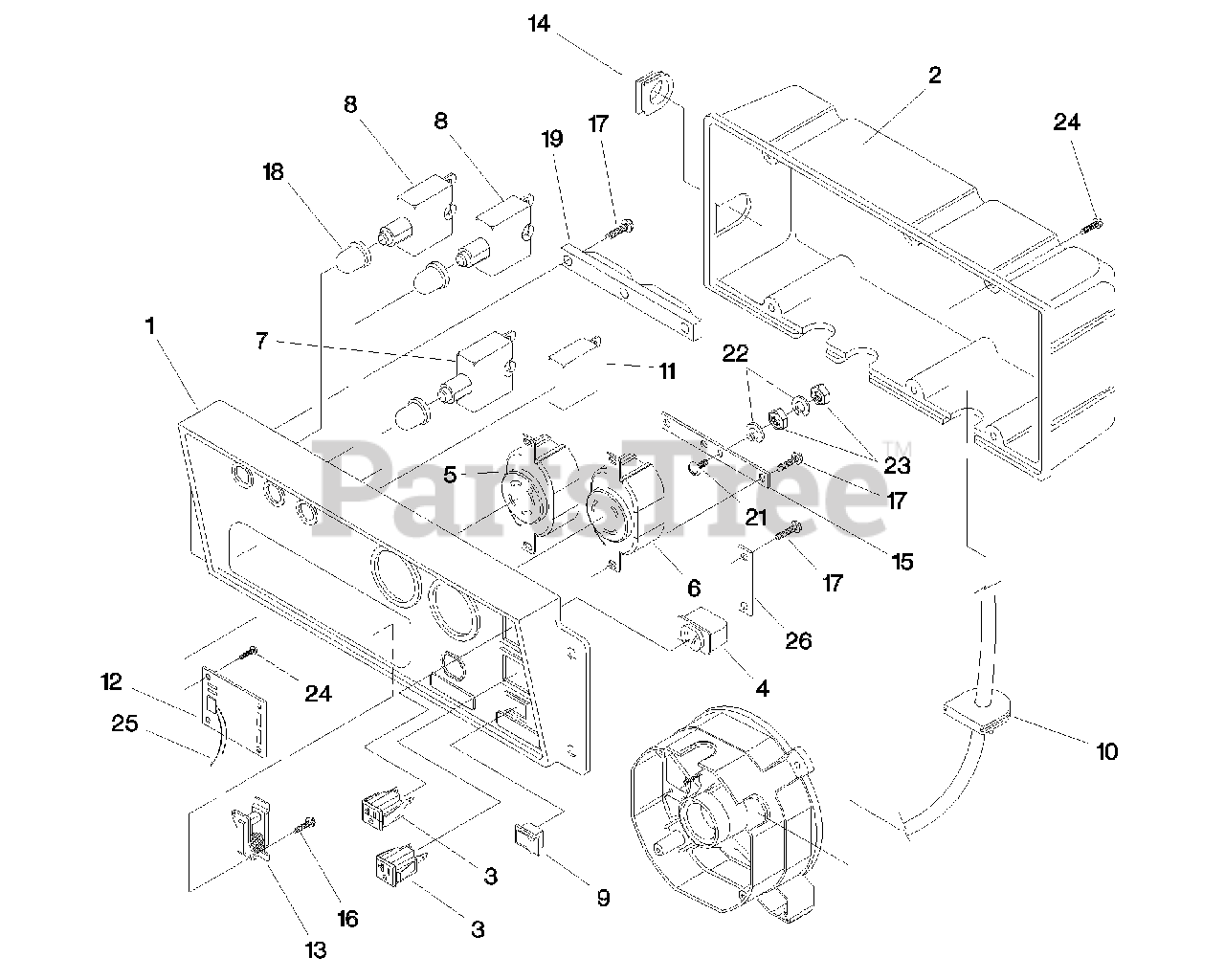

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 83976GS

PANEL, Control

$95.99

$

In Stock, only 2 left!

0

2

Briggs & Stratton 83975GS

BOX, Control

$

$

Not available

3

Briggs & Stratton 66818GS

OUTLET, 120 V AC, 15 A Duplex

$25.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66821GS

OUTLET, 12 V DC

$21.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 68867CGS

OUTLET, 120/240 V AC, 20 A Locking

$19.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68868CGS

OUTLET, 120 V AC, 30 A Locking
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 75207AGS

BREAKER, Circuit
(Superseded to 706178)

$34.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 75207GGS

BREAKER, Circuit

$10.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 82538GS

SWITCH, On/Off Rocker

$6.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 84134GS

GROMMET, Rubber

$5.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 83514GS

BREAKER, Circuit

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 83970GS

CONTROL BOARD, System

$

$

Not available

13

Briggs & Stratton 84028GS

TRANSFORMER, Idle Control

$47.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 85584GS

BAR, Bus

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 84543AGS

SCREW

$3.49

$

In Stock, only 4 left!

0

17

Briggs & Stratton 84543CGS

SCREW

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 84198GS

SHIELD, Circuit Breaker

$4.49

$

In Stock, only 2 left!

0

19

Briggs & Stratton 84197GS

BAR, Circuit Breaker Retaining

$3.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 75476GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22264GS

WASHER, Lock

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 51715GS

NUT

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84543BGS

SCREW

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 84335GS

HARNESS, Wire

$39.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 82542GS

BAR, DC Outlet Retaining

$1.99

$

Usually ships in 2-12 days

0
