9777-3 - Generac XL 4,000 Watt Portable Generator Main Unit Parts Diagram

XL 4,000 Watt Portable Generator

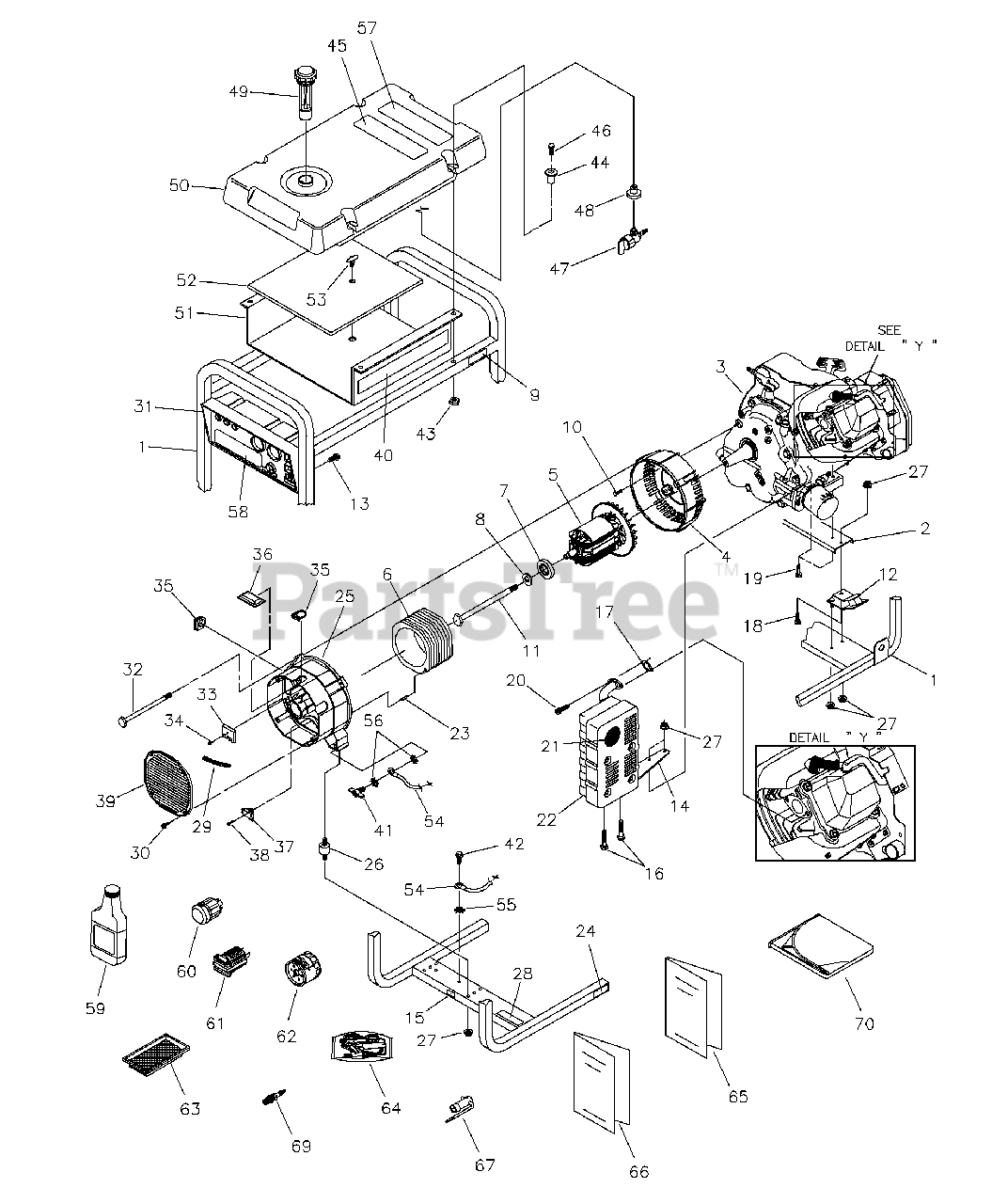

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton A93199GS

CRADLE

$

$

Not available

2

Briggs & Stratton A84021GS

SUPPORT, Engine
(Superseded to B84021GS)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

4

Briggs & Stratton 66365GS

HOUSING, Engine Adapter

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84141JGS

ASSY, Rotor

Note: (Inclds Item 7)

$278.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 83540JGS

ASSY, Stator
(Superseded to 187105AGS)

$

$

Not available

7

Briggs & Stratton 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 73054GS

DECAL, Fuel Shut Off

$8.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 86307GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 47480GS

SCREW

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84508GS

MOUNT, Vibe

$22.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 83208GS

BRACKET, Muffler

$21.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 66476GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 89476GS

GASKET, Exhaust

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 70644GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 84346GS

SCREW
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 40976GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

22

Briggs & Stratton 83071GS

MUFFLER

$

$

Not available

23

Briggs & Stratton 81917GS

PIN, Roll

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 77816GS

DECAL, Caution Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton SRV66825DGS

CARRIER, Rear Bearing

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 85652GS

MOUNT, Vibe
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 17

0

27

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 20+

0

28

Briggs & Stratton 20566GS

DECAL, 1-800

$1.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 84409GS

SLEEVING, Flexo

$4.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 87116GS

ASSY, Control Panel

Note: (See "Control Panel" illustration and parts list.)

$

$

Not available

32

Briggs & Stratton 86308GS

BOLT

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

$

$

Not available

34

Briggs & Stratton 66849AGS

SCREW

$4.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84132GS

ASSY, Drive Module Pwr Reg.

$126.99

$

In Stock, only 3 left!

0

37

Briggs & Stratton 66386GS

ASSY, Brush Holder

$23.99

$

In Stock, only 4 left!

0

38

Briggs & Stratton 66849GS

SCREW

$4.99

$

In Stock, only 1 left!

0

39

Briggs & Stratton B4871GS

COVER, Bearing Carrier

$9.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 189404GS

DECAL, Heat Shield

$

$

Currently unavailable

41

Briggs & Stratton 86494GS

SCREW, Wing

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 86292GS

SCREW
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

43

Briggs & Stratton 77395GS

NUT, Lock

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 83465GS

GROMMET, Tank

$3.99

$

In Stock, Qty 20+

0

45

Briggs & Stratton 93826GS

DECAL, Operating Instructions

$14.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 78831BGS

SCREW

$

$

Not available

47

Briggs & Stratton 80270GS

VALVE, Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 78299GS

BUSHING, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

49

Briggs & Stratton 85134GS

GUAGE, Fuel
(Superseded to B4363GS)

$41.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 88325GS

ASSY, Tank, Fuel

Note: (Includes Items 47 & 48)

$

$

Not available

51

Briggs & Stratton J84042GS

SHIELD, Heat

$94.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 84687GS

INSULATION

$22.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 85000GS

CLIP, Insulation

$2.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 26850GS

WASHER

$2.99

$

In Stock, only 1 left!

0

57

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 189405GS

DECAL, Control Panel

$

$

Currently unavailable

59

Briggs & Stratton BB3061GS

BOTTLE, Oil

$13.99

$

In Stock, only 1 left!

0

60

Briggs & Stratton 43483GS

PLUG, 250 V 20 A 4-Prong
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 37806GS

PLUG, 125 V 30 A 3-Prong
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 70185GS

FILTER, Oil

$14.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 78601GS

CLEANER, Air

$13.99

$

In Stock, only 1 left!

0

64

Briggs & Stratton 65787GS

CABLE, Battery Charge

$24.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 189383GS

MANUAL, Owners

$

$

Currently unavailable

66

Briggs & Stratton A8926GS

MANUAL, Engine

$14.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 84882GS

WRENCH, Spark Plug

$9.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 72347GS

PLUG, Spark
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

70

Briggs & Stratton 84895GS

COVER, Storage
(Superseded to B4767GS)

$108.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 84883GS

Cord Wrap

Note: Optional Accessory Not

$29.99

$

Usually ships in 2-12 days

0
