9779-4 - Generac XL 6,500 Watt Portable Generator Main Unit Parts Diagram

XL 6,500 Watt Portable Generator

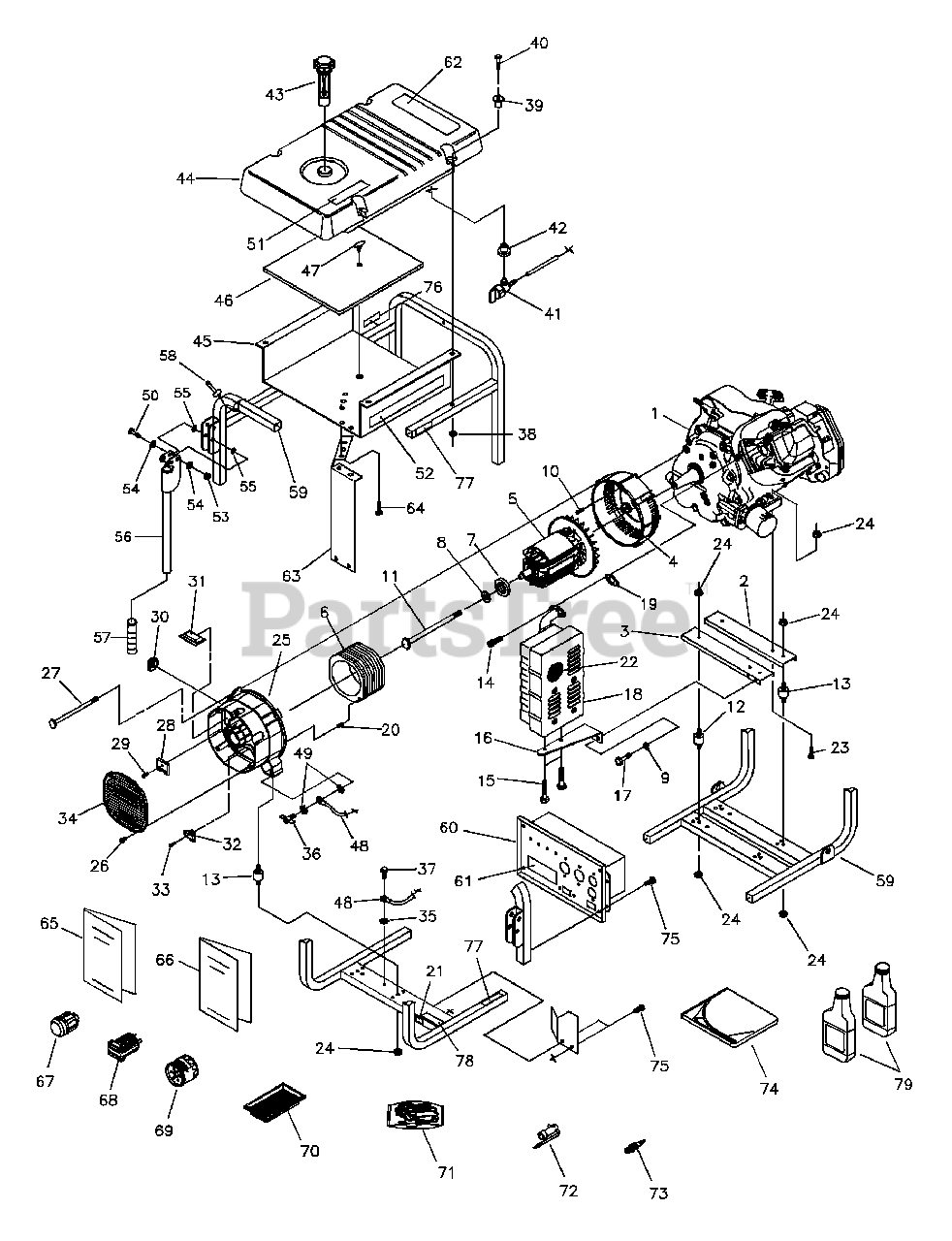

Main Unit Parts Diagram

  • Title

1

NSP

ENGINE

$

$

Not available

2

Briggs & Stratton A92531GS

SUPPORT, Support

$21.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton A92731GS

SUPPORT, Engine & Muffler
(Superseded to M92731GS)

$22.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 92247GS

HOUSING, Engine Adapter

$122.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 92679GGS

ASSEMBLY, Rotor

Note: (Inclds Item 7)

$617.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 92681AGS

ASSEMBLY, Stator

$633.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER, 22.2 O.D. x 3 Thk

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22129GS

WASHER, M8 Lock

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 86307GS

HHMS, 5/16 - 24 x 3/4 SEMS

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 25254GS

HHCS, 5/16 - 24 x 9-7/8"

$12.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 92609GS

MOUNT,Vibration

$38.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 82857GS

MOUNT,Vibration

$12.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 40976GS

SCREW, M8 - 1.25 x 20

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 66476GS

CAPSCREW, M6 - 1.0 x 12mm

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 92532GS

BRACKET, Muffler

$22.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 22142GS

SCREW, 5/16 - 18 x 3/4"
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

18

Briggs & Stratton A7433GS

MUFFLER

$

$

Not available

19

Briggs & Stratton 90239GS

GASKET, Muffler

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 81917GS

PIN, 4 mm x 10 Roll

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 83083GS

SCREEN, Spark Arrester

$9.49

$

In Stock, Qty 8

0

23

Briggs & Stratton 22531GS

HHCS, 5/16-18 x 1-3/4"
(Superseded to 704288)

$4.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 189160GS

NUT, 5/16-18 Serrated Flange

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66825CGS

CARRIER, Rear Bearing
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

TAPTITE, M5-0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 86308BGS

BOLT, M6 -1 x 165 mm Stator

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

$

$

Not available

29

Briggs & Stratton 66849AGS

TAPTITE, M5-0.8 x 20

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 84132GS

ASSEMBLY, Power Regulator

$126.99

$

In Stock, only 3 left!

0

32

Briggs & Stratton 66386GS

ASSEMBLY, Brush Holder

$23.99

$

In Stock, only 4 left!

0

33

Briggs & Stratton 66849GS

TAPTITE, M5 - 0.8 x 16

$4.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton B4871GS

COVER, Bearing Carrier

$9.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 22769GS

WASHER, #10 Int. Shakeproof

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 86494GS

SCREW, M6 -1.0 x 16 Wing

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 86292GS

HHCS, #10 Self Driller
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

38

Briggs & Stratton 77395GS

NUT, M6 Flange Lock

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 83465GS

GROMMET,Tank

$3.99

$

In Stock, Qty 20+

0

40

Briggs & Stratton 78831BGS

HHCS, M6-1.0 x 60, SEMS

$

$

Not available

41

Briggs & Stratton 80270GS

VALVE,Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 78299GS

BUSHING, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton B1998GS

TANK,ASM, 7- Gal
(Superseded to 193500GS)

Note: (Includes Items 41 & 42)

$

$

Not available

45

Briggs & Stratton J92039GS

SHIELD, Heat

$

$

Not available

46

Briggs & Stratton 92665GS

INSULATION #2-1/4" Thick

$16.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 85000GS

CLIP, Insulation

$2.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 26850GS

WASHER, M6 Shakeproof

$2.99

$

In Stock, only 1 left!

0

50

Briggs & Stratton 39287GS

HHCS, M8 - 1.25 x 45

$3.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189407GS

DECAL, Heat Shield

$

$

Currently unavailable

53

Briggs & Stratton 49820GS

NUT, M8 Nylok

$3.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 22145GS

WASHER, Flat, 5/16 - M8

$2.99

$

In Stock, only 1 left!

0

55

Briggs & Stratton 187104GS

WASHER, Nylon

$4.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton BB5586GS

HANDLE

$

$

Not available

57

Briggs & Stratton B4605GS

GRIP
(Superseded to 198669GS)

$8.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton B4135GS

PIN, with Lanyard

$6.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton A187024GS

CRADLE
(Superseded to M197022GS)

$372.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 92630GS

ASSEMBLY, Control Panel

$490.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 189406GS

DECAL, Control Panel

$

$

Currently unavailable

62

Briggs & Stratton 93826GS

DECAL, Start Instructions

$14.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton J96068GS

SHIELD, Heat
(Superseded to 192983GS)

$38.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2"

$3.49

$

In Stock, only 1 left!

0

65

Briggs & Stratton A8927GS

MANUAL, Engine

$14.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 189417GS

MANUAL, Owners

$16.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 43438GS

PLUG, 240V, 30A 4-Prong

$26.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 37806GS

PLUG, 125V, 30A 3-Prong
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 70185GS

OIL FILTER

$14.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 73111GS

ELEMENT,Air Cleaner

$15.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 65787GS

CABLE, Battery Charge

$24.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 84882GS

WRENCH, Spark Plug

$9.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 72347GS

SPARK PLUG
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

74

Briggs & Stratton B4767GS

COVER, Storage

$108.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton B2153GS

SCREW, Self Driller, 12-14 x 7/8"

$4.49

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 73054GS

DECAL, Fuel Shut Off

$8.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 77816GS

DECAL, Caution Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 20566GS

DECAL, 1-800

$1.99

$

Usually ships in 2-12 days

0

79

Briggs & Stratton AB3061GS

OIL BOTTLES, 28 oz.
(Superseded to BB3061GS)

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 84883GS

Cord Wrap

Note: Optional Accessory Not Included

$29.99

$

Usually ships in 2-12 days

0
