9795-0 - Generac XEP 5,500 Watt Portable Generator Control Panel Parts Diagram

XEP 5,500 Watt Portable Generator

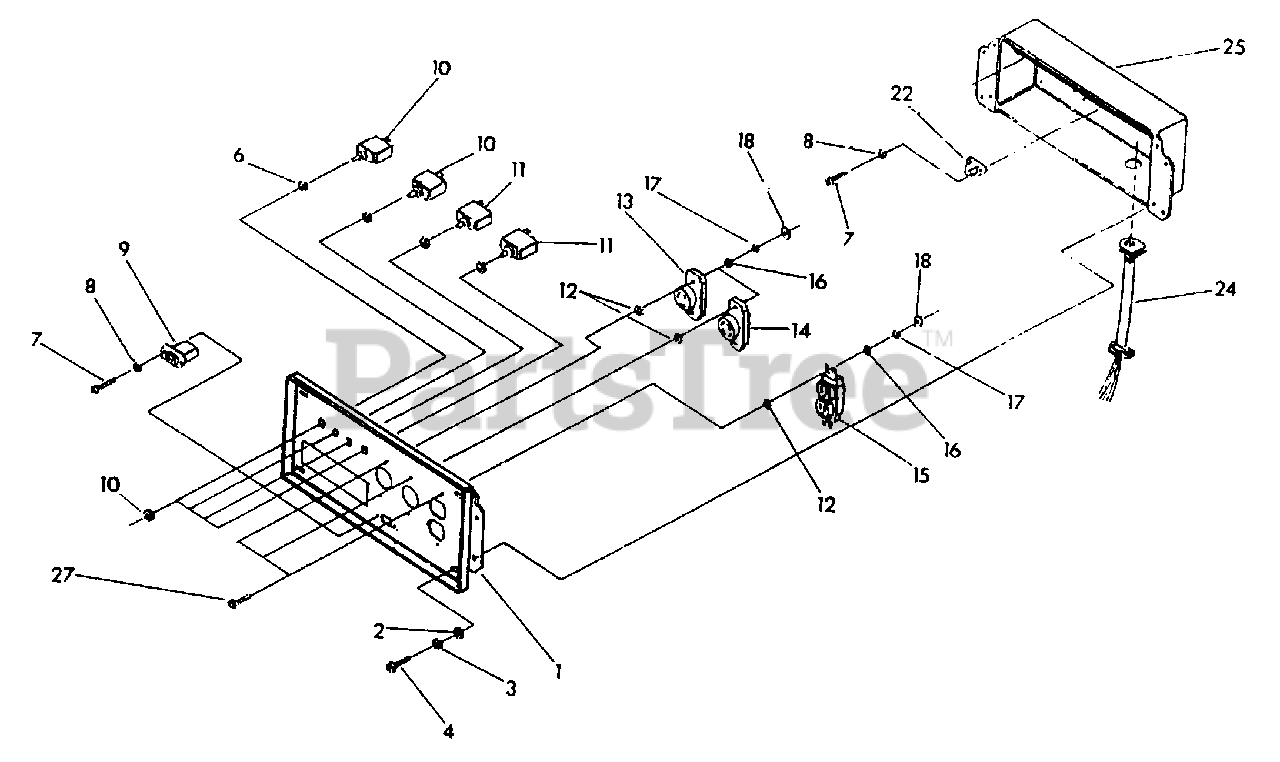

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 95884

Control Panel

$

$

Currently unavailable

2

Briggs & Stratton 23897

#10 (M5) Flat Washer
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 91526

M5-0.8 x 12mm Screw

$

$

Not available

6

Briggs & Stratton 82881

7/16" Internal Lock Washer
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 43181

M3-0.5 x 10mm Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 43182

M3 Lock Washer
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 66822

12 volts Outlet & Retaining Bracket
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

10

75207A

30 amp Circuit Breaker

$

$

Not available

11

Briggs & Stratton 75207

20 amp Circuit Breaker
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 23365

#8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton 68868

120 volts, 30 Amp Twistlock Outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 43437

120/240 volts 20 Amp Twistlock Outlet

$

$

Not available

15

Briggs & Stratton 68759

120 volts, 20 Amp Twistlock Outlet
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 43180

M4 Flat Washer
(Superseded to 5043180B)

$54.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 22264

#8 (M4) Lock Washer

$

$

Not available

18

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87692

12 volts 10 amp (automatic)

$

$

Currently unavailable

24

Briggs & Stratton 84134

Rubber Connector Grommet
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 95883

Control Panel Box

$

$

Currently unavailable

27

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available
