980 - Weed Eater Blower CARBURETOR Parts Diagram

Blower

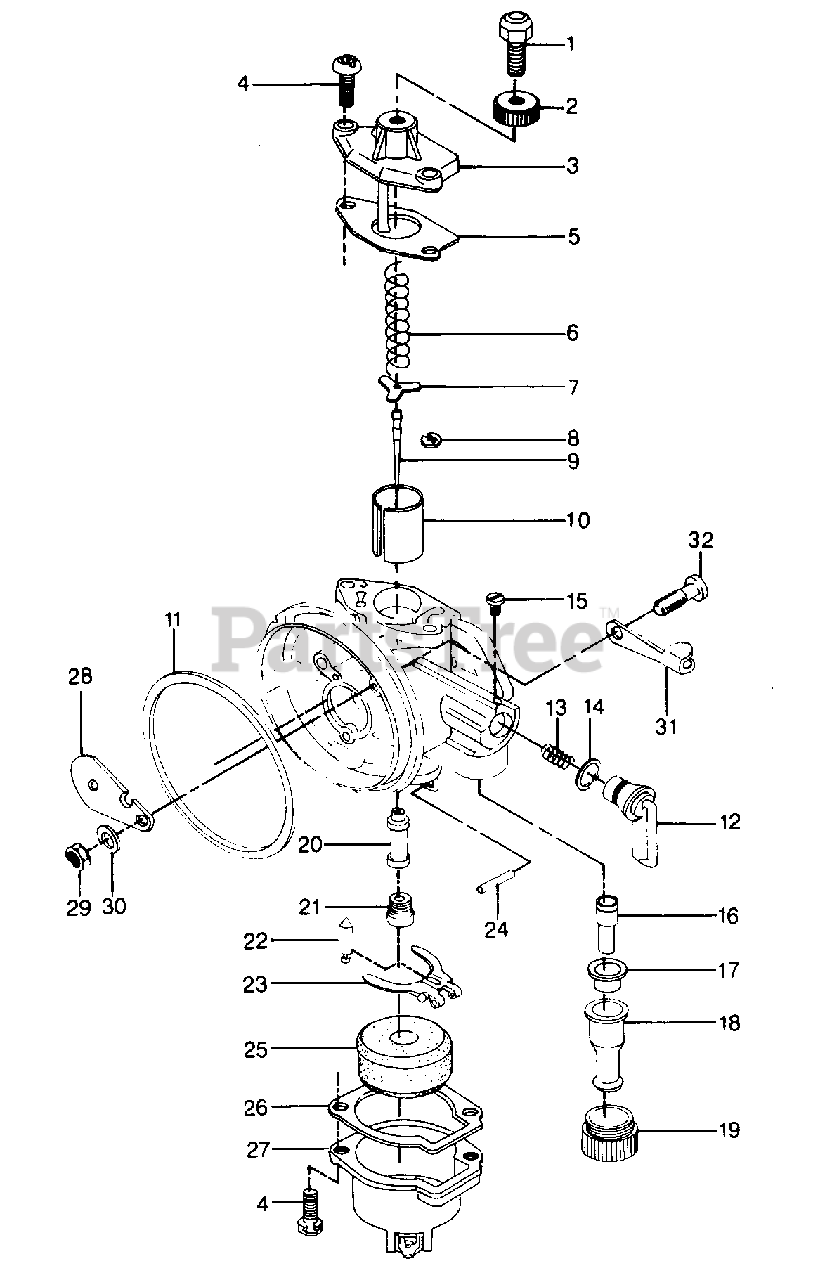

CARBURETOR Parts Diagram

  • Title

1

Poulan 530094361

Adjuster - cable

$

$

Not available

2

Poulan 530094362

Nut - lock

$

$

Not available

3

Poulan 530094363

Cover - Body

$

$

Not available

4

Poulan 530094364

Screw (4 x 12mm)

$

$

Not available

5

Poulan 530094365

Gasket

$

$

Not available

6

Poulan 530094366

Spring - throttle

$

$

Not available

7

Poulan 530094367

Retainer - spring

$

$

Not available

8

Poulan 530094368

E-Ring

$

$

Not available

9

Poulan 530094369

Needle - jet

$

$

Not available

10

Poulan 530094370

Valve - throttle

$

$

Not available

11

Poulan 530094371

O-Ring

$

$

Not available

12

Poulan 530094372

Lever

$

$

Not available

13

Poulan 530094373

Spring

$

$

Not available

14

Poulan 530094374

O-Ring

$

$

Not available

15

Poulan 530094375

Screw - guide

$

$

Not available

16

Poulan 530094376

Strainer

$

$

Not available

17

Poulan 530094377

Gasket

$

$

Not available

18

Poulan 530094378

Connector

$

$

Not available

19

Poulan 530094379

Nut - Connector

$

$

Not available

20

Poulan 530094380

Jet - needle

$

$

Not available

21

Poulan 530094381

Jet - main (#88)

$

$

Not available

22

Poulan 530094382

Valve - needle

$

$

Not available

23

Poulan 530094383

Hinge, float

$

$

Not available

24

Poulan 530094384

Pin - float

$

$

Not available

25

Poulan 530094385

Float

$

$

Not available

26

Poulan 530094386

Gasket

$

$

Not available

27

Poulan 530094387

Float Bowl Assembly

$

$

Not available

28

Poulan 530094388

Valve - choke

$

$

Not available

29

Poulan 530094389

Nut

$

$

Not available

30

Poulan 530094390

Washer - spring

$

$

Not available

31

Poulan 530094391

Lever - choke

$

$

Not available

32

Poulan 530094392

Bolt - choke

$

$

Not available
