9801-4 - Generac EXL 10,000 Watt Portable Generator Generator Parts Diagram

EXL 10,000 Watt Portable Generator

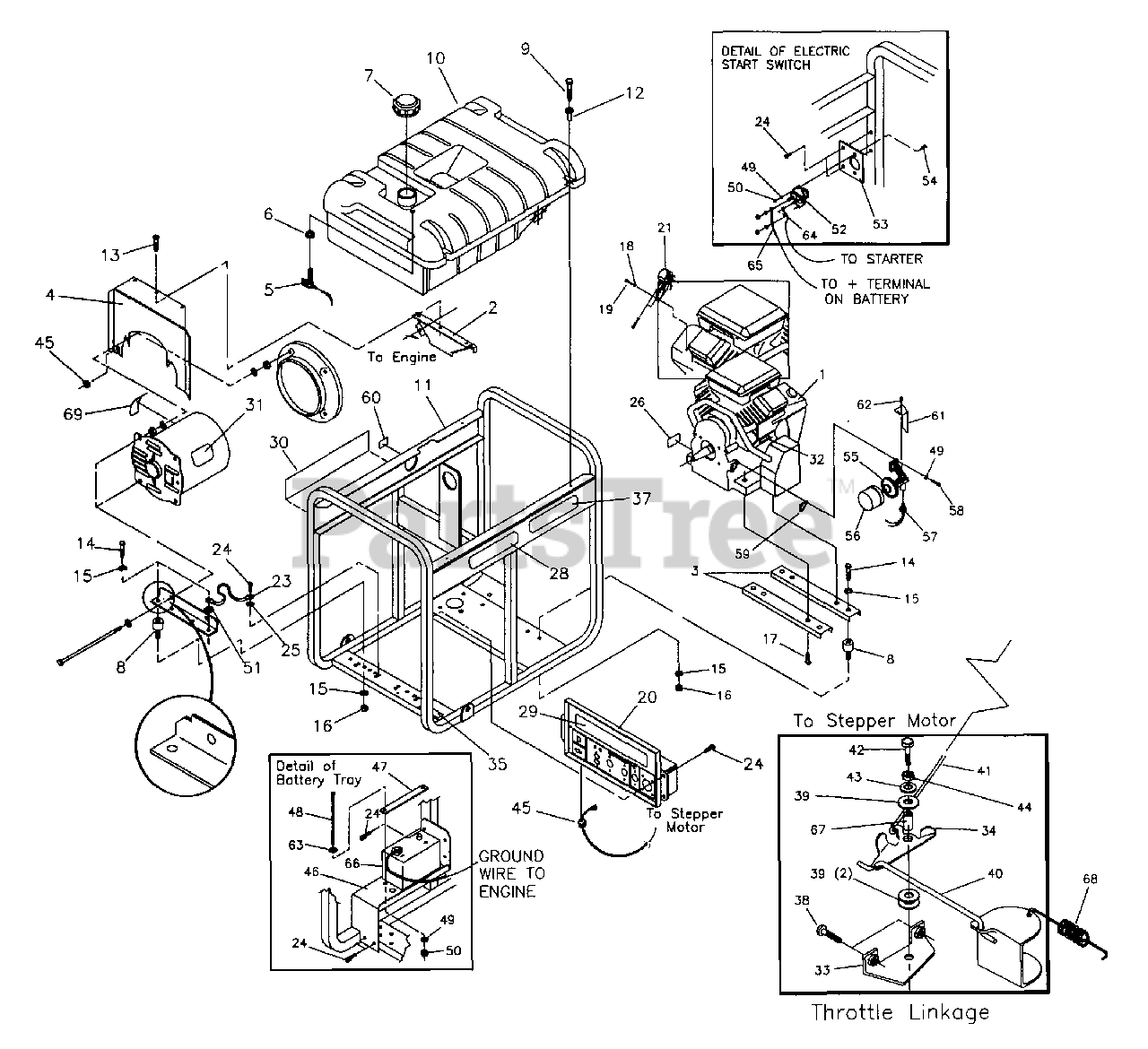

Generator Parts Diagram

  • Title

1

-----

ENGINE

$

$

Not available

2

Briggs & Stratton B93074

SHIELD, HEAT
(Superseded to B93074GS)

$136.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton A77304

SUPPORT, ENGINE
(Superseded to A77304GS)

$27.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton B90916

STATOR, HEAT SHIELD
(Superseded to B90916GS)

$198.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 80270

VALVE, FUEL SHUT- OFF
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton 78299

BUSHING, FUEL VALVE
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton B4325

CAP, FUEL
(Superseded to B4325GS)

$93.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 35097

MOUNTS, VIBRATION
(Superseded to 35097GS)

$16.99

$

In Stock, only 3 left!

0

9

Briggs & Stratton 78831B

CAPSCREW, M6-1.0 X 60MM
(Superseded to 78831BGS)

$

$

Not available

10

Briggs & Stratton B1696

USE B1997 TANK ASSY

$

$

Currently unavailable

11

Briggs & Stratton AB4137

CRADLE
(Superseded to AB4137GS)

$462.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 83495

GROMMET

$

$

Currently unavailable

13

Briggs & Stratton 56892

CRIMPTITE
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 23152

CAPSCREW
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22237

WASHER

$

$

Not available

16

Briggs & Stratton 22241

NUT, 3/8- 16 HEX

$

$

Not available

17

Briggs & Stratton 75246

SELF- TAPPING
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22129

WASHER, M8- LOCK
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 39253

CAPSCREW
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4453

ASSEMBLY, CONTROL PANEL

$

$

Currently unavailable

21

Briggs & Stratton 96867

ASSEMBLY, STEPPER MOTOR
(Superseded to 96867GS)

$261.99

$

Usually ships in 2-12 days

0

23

18553621

ASSEMBLY,GROUND WIRE

$

$

Not available

24

Briggs & Stratton 86292

CAPSCREW, #10 SELF DRILLER
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 23762

WASHER
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 79661P

DECAL, ENGINE # 93571

$

$

Currently unavailable

28

-----

DECAL

$

$

Not available

29

Briggs & Stratton 96056

DECAL, CONTROL PANEL

$

$

Not available

30

Briggs & Stratton 96055

DECAL, SIDE PANEL

$

$

Not available

31

Briggs & Stratton 78817

DECAL, DATA PLATE
(Superseded to 78817GS)

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 77816

DECAL, CAUTION HOT MUFFLER
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 95349

PLATE, ADJUST
(Superseded to 95349GS)

$7.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 95348

BELL, CRANK
(Superseded to 95348GS)

$7.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 20566

DECAL, 1-800
(Superseded to 20566GS)

$1.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 93826

DECAL, START INSTRUCTION
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 75477

SCREW, PHILLIPS HD.
(Superseded to 75477GS)

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 96716

WASHER, NYLON
(Superseded to 96716GS)

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 95921

LINKAGE, BELL CRANK TO THROTTLE
(Superseded to 95921GS)

$12.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 95920

LINKAGE, STEPPER MOTOR TO BELL CRANK
(Superseded to 95920GS)

$16.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 33141

CAPSCREW, HEX HD.
(Superseded to 33141GS)

$3.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 51713

WASHER, M5 FLAT
(Superseded to 51713GS)

$2.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 49226

WASHER, M5 LOCK
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 62265

GROMMET, RUBBER
(Superseded to 62265GS)

$8.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton A84650

TRAY, BATTERY
(Superseded to A84650GS)

$55.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton A44951

BAR, BATTERY HOLD DOWN
(Superseded to B44951GS)

$10.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 45000

SCREW, HX HD. MACH.
(Superseded to 45000GS)

$11.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 22097

WASHER, 1/4" LOCK
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 22127

NUT, 1/4 -20 HEX

$

$

Not available

51

Briggs & Stratton 22261

SHAKEPROOF, 3/8" INTERNAL
(Superseded to 22261GS)

$3.49

$

In Stock, only 2 left!

0

52

Briggs & Stratton 77282

SWITCH, STARTER

$

$

Not available

--

Briggs & Stratton 78289

STARTER SWITCH BRACKET
(Superseded to 78289GS)

Note: (NOT SHOWN)

$7.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 77283

ASSY, STATER SWITCH
(Superseded to 77283GS)

$72.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 22287

CAPSCREW, 1/4 "- 20 X 3/4"
(Superseded to 22287GS)

$3.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 90914

ADAPTER, OIL FILTER

$

$

Not available

56

Briggs & Stratton 70185

FILTER, OIL
(Superseded to 70185GS)

$14.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 60108

SWITCH, LOW OIL PRESSURE

$

$

Not available

58

Briggs & Stratton 40945

CAPSCREW, M6-1.0 X 20 SOCKET HD
(Superseded to 40945GS)

$3.49

$

In Stock, only 2 left!

0

59

Briggs & Stratton 68548

GASKET, OIL FILTER ADAPTOR

$

$

Not available

60

Briggs & Stratton 73054

DECAL, FUEL SHUT OFF

$

$

Not available

61

Briggs & Stratton B93841

SHIELD, OIL SENSOR HEAT
(Superseded to B93841GS)

$11.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 46852

TAPTITE

$

$

Not available

63

22473

WASHER, 1/4" FLAT

$

$

Not available

64

Briggs & Stratton 18253621

WIRE ASSEMBLY
(Superseded to 18253621GS)

$28.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 19653621

WIRE ASSEMBLY

$

$

Currently unavailable

66

Briggs & Stratton 19753621

WIRE ASSEMBLY
(Superseded to 19753621GS)

$14.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 96378

SPACER
(Superseded to 96378GS)

$7.49

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 96717

SPRING
(Superseded to 96717GS)

$58.99

$

Usually ships in 2-12 days

0

69

-----

DECAL

$

$

Not available

--

Briggs & Stratton B4428

GENERATOR OWNER'S MANUAL
(Superseded to B4428GS)

Note: (NOT SHOWN)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B4572

VIDEO
(Superseded to B4572GS)

Note: (NOT SHOWN)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 37806

125V 30A PLUG
(Superseded to 100523GS)

Note: (NOT SHOWN)

$20.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 43438

120/240V 30A PLUG
(Superseded to 43438GS)

Note: (NOT SHOWN)

$26.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 65787

BATTERY CHARGE CABLE

Note: (NOT SHOWN)

$3.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 93568

125V 30A PLUG

Note: (NOT SHOWN)

$32.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061

OIL BOTTLE (28 OZ)
(Superseded to BB3061GS)

Note: (NOT SHOWN)

$13.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 21127GS

ENGINE OWNER'S MANUAL

Note: (NOT SHOWN)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B4767

STORAGE COVER
(Superseded to B4767GS)

Note: (AVAILABLE ACCESSORY)

$108.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 84883

CORD WRAP
(Superseded to 84883GS)

Note: (AVAILABLE ACCESSORY)

$29.99

$

Usually ships in 2-12 days

0
