9801-7 - Generac EXL 10,000 Watt Portable Generator Control Panel Parts Diagram

EXL 10,000 Watt Portable Generator

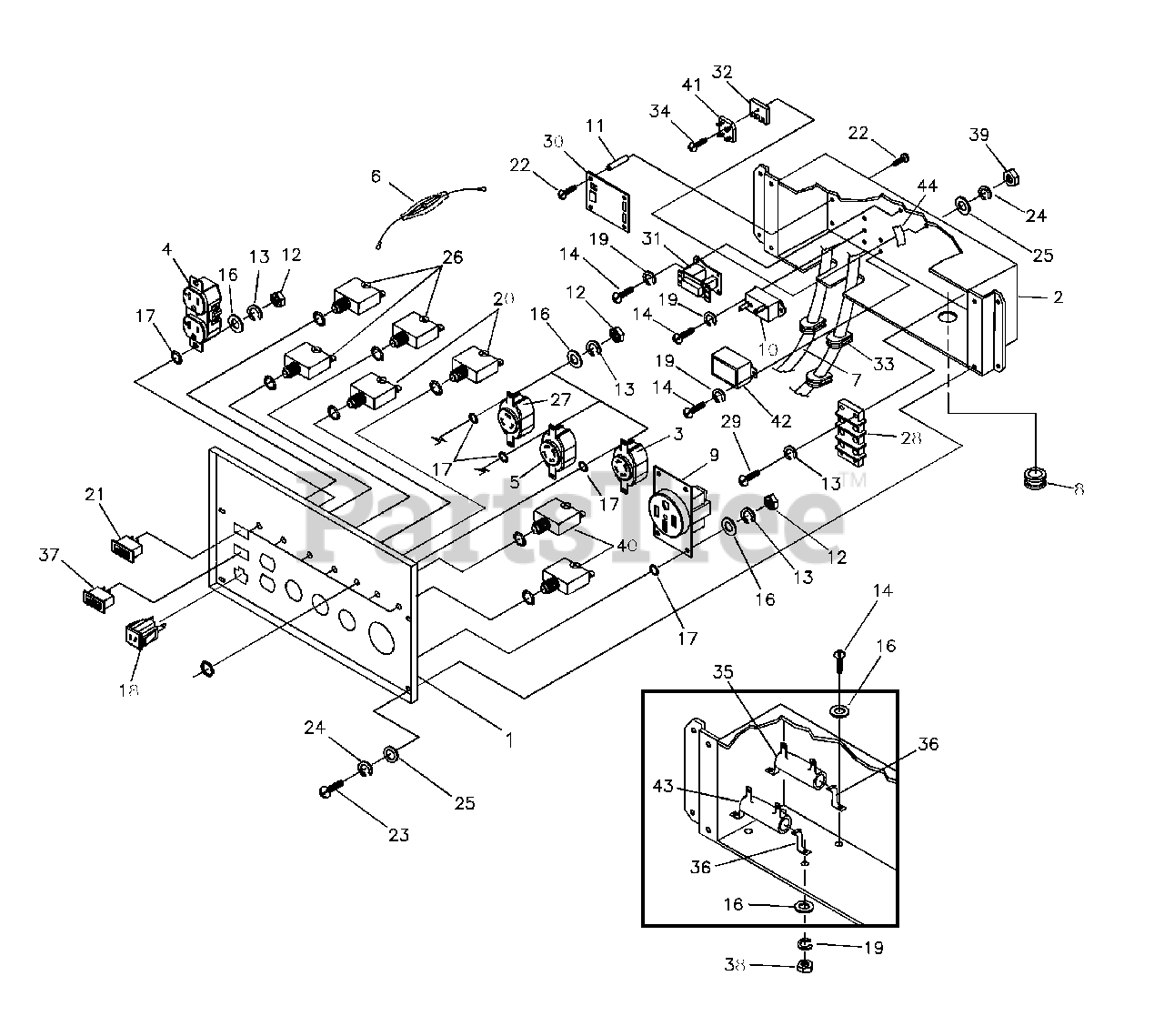

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton AB4432GS

PANEL, Control

$34.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B95906GS

BOX, Control

$168.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 43437GS

OUTLET, 120/240V, 30A Locking

$17.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 68759GS

OUTLET, 120V, 20A Duplex

$24.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 68868GS

OUTLET, 120V, 30A Locking
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B5112GS

ASSY, Diode

$95.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 186102GS

ASSY, Engine Harness

$57.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 90576GS

GROMMET, Rubber

$9.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B4262GS

OUTLET, 120/240V 50A

$142.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 87962GS

BREAKER, Circuit

$29.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 93929GS

STAND OFF

$1.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 51715GS

NUT

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264GS

WASHER, Lock

$2.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 43181GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 38150GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23365GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 90418GS

OUTLET, 12V DC

$

$

Not available

19

Briggs & Stratton 43182GS

WASHER, Lock

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 75207AGS

BREAKER, Circuit, 30A
(Superseded to 706178)

$34.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 78653GS

SWITCH, Run - Stop

$4.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 93986GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 91526GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 49226GS

WASHER, Lock

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 23897GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 75207GS

BREAKER, Circuit, 20A
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 74190GS

OUTLET, 120V/20A

$38.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 92953GS

BLOCK, 50 Amp, 3 - Terminal

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 80077GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 94117GS

BOARD, Idle Control

$137.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 84028GS

TRANSFORMER, Idle Control

$47.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

$

$

Not available

33

Briggs & Stratton 84135GS

GROMMET, Rubber

$3.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 79224GS

SCREW

$18.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 186200GS

RESISTOR
(Superseded to 205846GS)

$15.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B4893GS

STAND OFF

$

$

Not available

37

Briggs & Stratton 82538GS

SWITCH, On - Off

$6.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 51714GS

NUT

$3.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 51716GS

NUT

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton B4445GS

BREAKER, Circuit, 45A

$161.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton B4894GS

RECTIFIER, Battery Charge

$

$

Not available

42

Briggs & Stratton 77314GS

RELAY, 3A Thermal

$76.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton B4892GS

RESISTOR
(Superseded to B4893GS)

$

$

Not available

44

Briggs & Stratton 27565GS

TAPE, Glass Insulation

$0.99

$

Usually ships in 2-12 days

0
