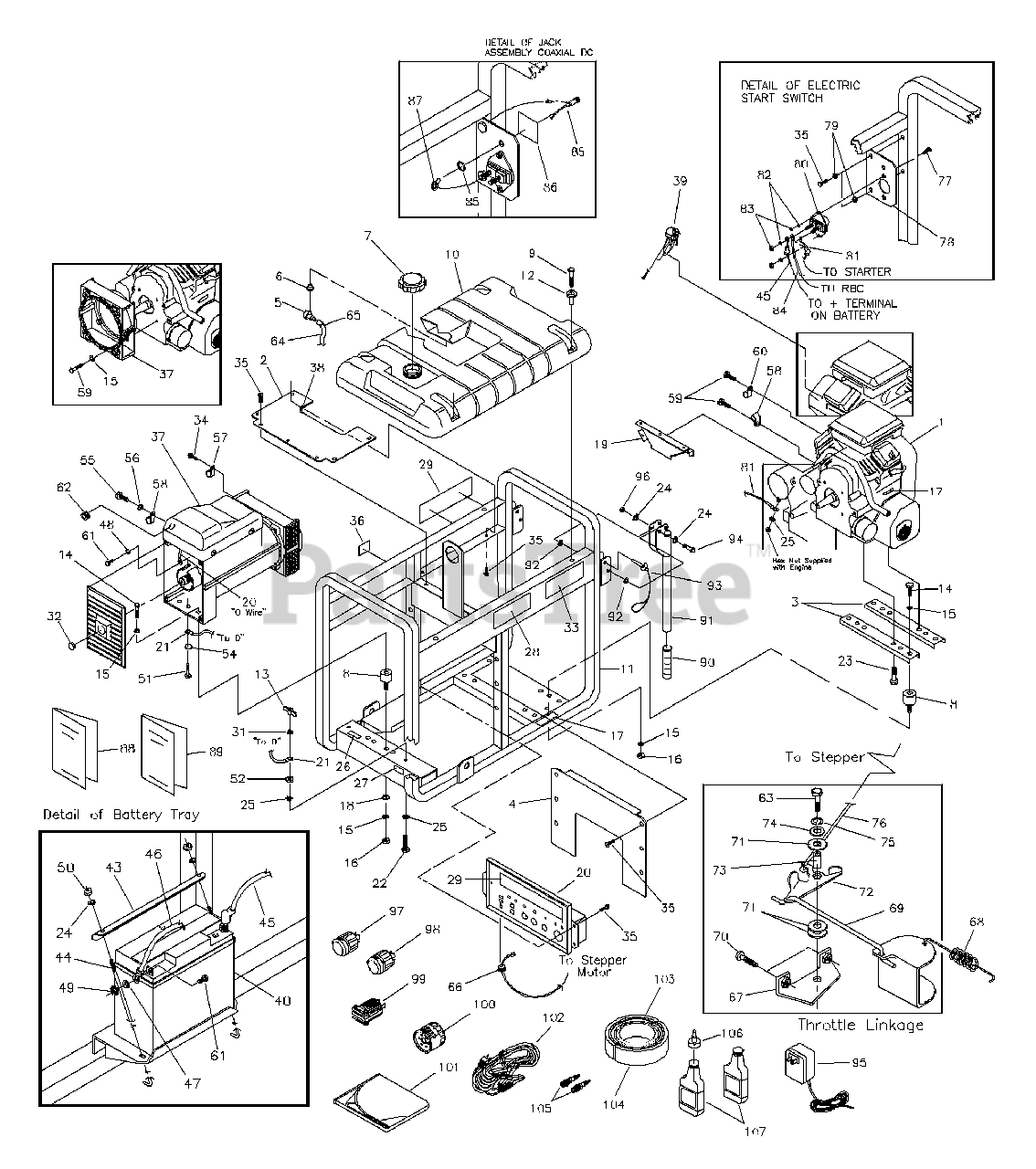

9801-7 - Generac EXL 10,000 Watt Portable Generator Main Unit Parts Diagram

EXL 10,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

NSP

ENGINE

$

$

Not available

2

Briggs & Stratton JB4509AGS

SHIELD, Heat

$94.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton A77304GS

SUPPORT, Engine

$27.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton JB5567GS

SHIELD, Heat

$74.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 80270GS

VALVE, Fuel Shut-Off
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton 78299GS

BUSHING, Fuel Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton B4325GS

CAP, Fuel Tank

$93.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 38353GS

MOUNTS, Vibration

$39.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 78831BGS

SCREW

$

$

Not available

10

Briggs & Stratton B1997GS

ASSY, Tank, Fuel

Note: (Includes Items 5 & 6)

$

$

Not available

11

Briggs & Stratton A189487GS

CRADLE

$

$

Currently unavailable

12

Briggs & Stratton 83465GS

GROMMET, Fuel Tank Mounting

$3.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 87680GS

SCREW, Wing

$7.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 23152GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22237GS

WASHER, Lock

$2.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22241GS

NUT

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 77816GS

DECAL, Caution Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22131GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton J93074GS

SHIELD, Heat

$136.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 186076GS

ASSY, Control Panel

Note: (See "Control Panel" illustration and parts list.)

$

$

Not available

21

Briggs & Stratton 19553621GS

ASSY, Wire, Ground

$7.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 45757GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 75246GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 22145GS

WASHER

$2.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 26850GS

WASHER

$2.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 20566GS

DECAL, 1-800

$1.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 189409GS

DECAL, Unit

$

$

Currently unavailable

31

Briggs & Stratton 52857GS

NUT, Lock

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 187049GS

PLUG, Dome

$8.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 93826GS

DECAL, Start Instructions

$14.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 76040GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 73054GS

DECAL, Fuel Shut-Off

$8.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B4268GS

ALTERNATOR

Note: (See "Alternator" illustration and parts list.)

$2472.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton A5850GS

U-CHANNEL

$4.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 96867GS

ASSY, Stepper Motor

$261.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton B4489GS

BATTERY
(Superseded to 193043GS)

$137.99

$

In Stock, only 4 left!

0

41

Briggs & Stratton 39253GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 22129GS

WASHER, Lock

$2.99

$

In Stock, only 2 left!

0

43

Briggs & Stratton A96925GS

BRACKET, Battery Tie Down
(Superseded to M96925GS)

$

$

Not available

44

Briggs & Stratton 96924GS

J-BOLT

$7.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 189302DGS

CABLE, Battery Positive

$18.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 19753621GS

CABLE, Battery Negative

$14.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 23897GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 49226GS

WASHER, Lock

$2.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 52856GS

NUT, Lock

$3.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 49820GS

NUT, Nylok

$3.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 42907GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 49813GS

NUT

$2.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 27482GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 47411GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 22473GS

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

57

Briggs & Stratton 55934TGS

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 55934GGS

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 22511GS

SCREW

$1.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 96832GS

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 52618GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton B4794GS

GROMMET, Generator Cover

$4.49

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 33141GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 30340GS

HOSE
(Superseded to 499742)

$77.99

$

In Stock, Qty 16

0

65

Briggs & Stratton 48031CGS

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 7

0

66

Briggs & Stratton 62265GS

GROMMET, Rubber

$8.49

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 95349GS

PLATE, Adjust

$7.49

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 96717GS

SPRING

$58.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 95921GS

LINKAGE, Bell Crank to Throttle

$12.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 75477GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 96716GS

WASHER, Nylon

$2.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 95348GS

BRACKET, Bell Crank

$7.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 96378GS

SPACER

$7.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 51713GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 49226GS

WASHER, Lock

$2.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 95920GS

LINKAGE, Stepper Motor to Bell Crank

$16.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 22287GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 188987GS

BRACKET, Starter Switch

$10.99

$

Usually ships in 2-12 days

0

79

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 77282GS

SWITCH, Starter

$76.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 189302AGS

ASSY, Wire

$22.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 22097GS

WASHER, Lock

$3.49

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 22127GS

NUT

$1.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 186102GS

WIRE, Harness

$57.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 188989GS

ASSY, Jack, DC
(Superseded to 192531GS)

$10.99

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 189198GS

DECAL, Instruction, ES

$8.99

$

In Stock, only 1 left!

0

87

Briggs & Stratton 58359GS

LUG

$3.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 189484GS

MANUAL, Owners

$14.99

$

Usually ships in 2-12 days

0

89

Briggs & Stratton 191460GS

MANUAL, Engine
(Superseded to MS5373)

$

$

Not available

90

Briggs & Stratton B4605GS

GRIP
(Superseded to 198669GS)

$8.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton BB5586GS

HANDLE

Note: (Includes Item 90)

$

$

Not available

92

Briggs & Stratton 187104GS

WASHER, Nylon

$4.49

$

Usually ships in 2-12 days

0

93

Briggs & Stratton B4135GS

PIN, with Lanyard

$6.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 39287GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton B4177GS

CHARGE, Battery Float
(Superseded to 705927)

$38.99

$

In Stock, only 1 left!

0

96

Briggs & Stratton 49820GS

NUT, Nylok

$3.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 43438GS

PLUG, 120/240V, 30A, 4 Prong

$26.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 93568GS

PLUG, 125V, 20A

$27.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 37806GS

PLUG, 120V/30A, 3 Prong
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 189505GS

FILTER, Oil
(Superseded to 492932S)

$12.99

$

In Stock, Qty 20+

0

101

Briggs & Stratton B4767GS

COVER, Storage

$108.99

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 65787GS

CABLE, Battery Charge

$24.99

$

Usually ships in 2-12 days

0

103

Briggs & Stratton 189482GS

ELEMENT, Air Filter
(Superseded to 394018S)

$25.99

$

In Stock, Qty 20+

0

104

Briggs & Stratton 189481GS

PRE-CLEANER, Air
(Superseded to 272490S)

$5.49

$

In Stock, Qty 20+

0

105

Briggs & Stratton 189506GS

SPARK PLUG
(Superseded to 496018S)

$4.49

$

In Stock, Qty 20+

0

106

Briggs & Stratton B3518GS

CAP, Funnel, Oil Bottle

$3.99

$

Usually ships in 2-12 days

0

107

Briggs & Stratton BB3061GS

BOTTLE, Oil

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 84883GS

Cord Wrap

Note: Optional Accessory Not

$29.99

$

Usually ships in 2-12 days

0
