980C-00 - Paramount Edger, Electric EDGER & BRUSH ASSEMBLY Parts Diagram

Edger, Electric

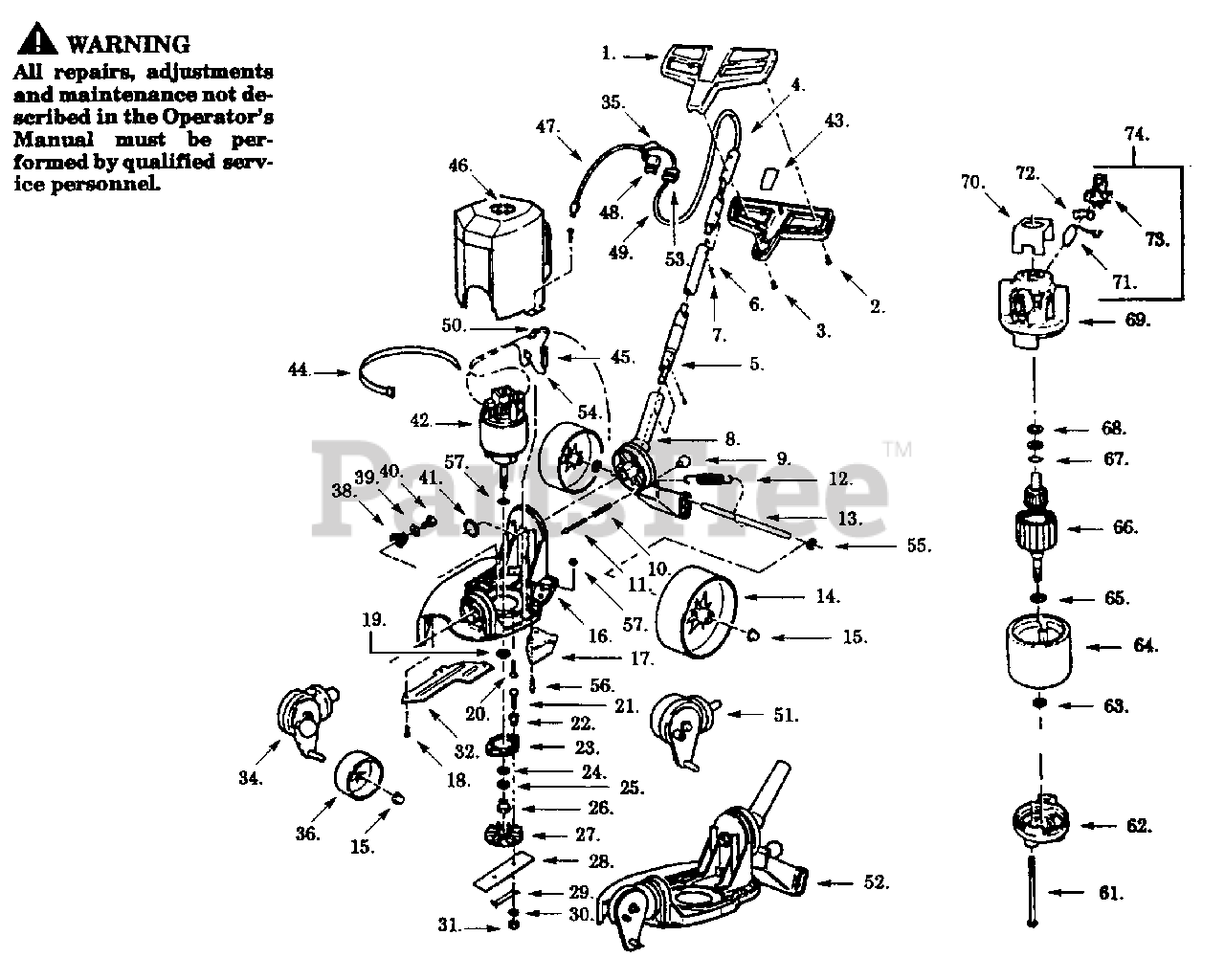

EDGER & BRUSH ASSEMBLY Parts Diagram

  • Title

1

Poulan 534234255

Top & Bottom Handle

$

$

Not available

2

Poulan 534184700

Screw

$

$

Not available

3

Poulan 534222400

Screw

$

$

Not available

4

Poulan 534235100

Upper Handle Tube

$

$

Not available

5

Poulan 534771000

Lower Handle Tube

$

$

Not available

6

Poulan 534713000

Lockwasher

$

$

Not available

7

Poulan 534970001

Screw

$

$

Not available

8

Poulan 534137542

Swivel Casting

$

$

Not available

9

Poulan 534720001

Knob

$

$

Not available

10

Poulan 534710000

Spring

$

$

Not available

11

Poulan 534700002

Shaft

$

$

Not available

12

Poulan 534121300

Axle Spring

$

$

Not available

13

Poulan 534137701

Axle

$

$

Not available

14

Poulan 534236800

Rear Wheel

$

$

Not available

15

Poulan 534121000

Push Nut

$7.99

$

Usually ships in 3-10 days

0

16

Poulan 534130505

Frame

$

$

Not available

17

Poulan 534830000

Guide Blade

$5.99

$

In Stock, Qty 7

0

18

Poulan 534193800

Screw

$

$

Not available

19

Poulan 534136100

Washer

$

$

Not available

20

Poulan 534136401

Screw

$

$

Not available

21

Poulan 534135900

Bolt

$

$

Not available

22

Poulan 534135605

Insulating Sleeve

$

$

Not available

23

Poulan 534135400

Clutch Plate

$

$

Not available

24

Poulan 534136300

Washer

$

$

Not available

25

Poulan 534238900

Load Spring

$

$

Not available

26

Poulan 534135500

Clutch Sleeve

$

$

Not available

27

Poulan 534135305

Fan

$

$

Not available

28

Poulan 534205300

Cutter Blade

$10.99

$

In Stock, only 1 left!

0

29

Poulan 534135700

Lock Strap

$3.49

$

Usually ships in 3-10 days

0

30

Poulan 534136600

Lockwasher

$

$

Not available

31

Poulan 534136200

Nut

$

$

Not available

32

Poulan 534131515

Guard Plate

$

$

Not available

34

Poulan 534130702

Front Swivel Ass'y.

$

$

Not available

35

Poulan 534561000

Wire Nut

$

$

Not available

36

Poulan 534240003

Wheel

$

$

Not available

38

Poulan 534120500

Spring

$

$

Not available

39

Poulan 534778000

Washer

$

$

Not available

40

Poulan 534779000

Screw

$

$

Not available

41

Poulan 534780000

Retaining Ring

$

$

Not available

42

Poulan 534225007

Motor

$

$

Not available

43

Poulan 534337100

Shield

$

$

Not available

44

Poulan 534134700

Tie Strap

$

$

Not available

45

Poulan 534134500

Resistor

$

$

Not available

46

Poulan 534722048

Motor Cover

$

$

Not available

47

Poulan 534234501

Power Cord

$

$

Not available

48

Poulan 534193004

Switch

$

$

Not available

49

Poulan 534337000

Harness

$

$

Not available

50

Poulan 534561000

Connector

$

$

Not available

51

Poulan 534130702

Front Swivel Ass'y.

$

$

Not available

52

Poulan 534135162

Edger Frame Ass'y.

$

$

Not available

53

Poulan 534336501

P.C. Board

$

$

Not available

54

Poulan 534134600

Fiberglass Sleeve

$

$

Not available

55

Poulan 534137900

Washer

$

$

Not available

56

Poulan 534315200

Screw

$

$

Not available

57

Poulan 534315300

Lock Nut

$

$

Not available

61

Poulan 534228700

Screw

$

$

Not available

62

Poulan 534207101

Endbell (Output)

$

$

Not available

63

Poulan 534227001

Field Ass'y.

$

$

Not available

64

Poulan 534238903

Load Washer

$

$

Not available

65

Poulan 534747002

Retaining Ring

$

$

Not available

66

Poulan 534225122

Armature Ass'y.

$

$

Not available

67

Poulan 534246700

Retaining Ring

$

$

Not available

68

Poulan 534228800

Washer

$

$

Not available

69

Poulan 534227501

Endbell (Brush)

$

$

Not available

70

Poulan 534226000

Insulator

$

$

Not available

71

Poulan 534227800

Brush

$

$

Not available

72

Poulan 534228000

Spring

$

$

Not available

73

Poulan 534227700

Brush Holder

$

$

Not available

74

Poulan 534450400

Brush Kit (Inc.71,72,73)

$

$

Not available
